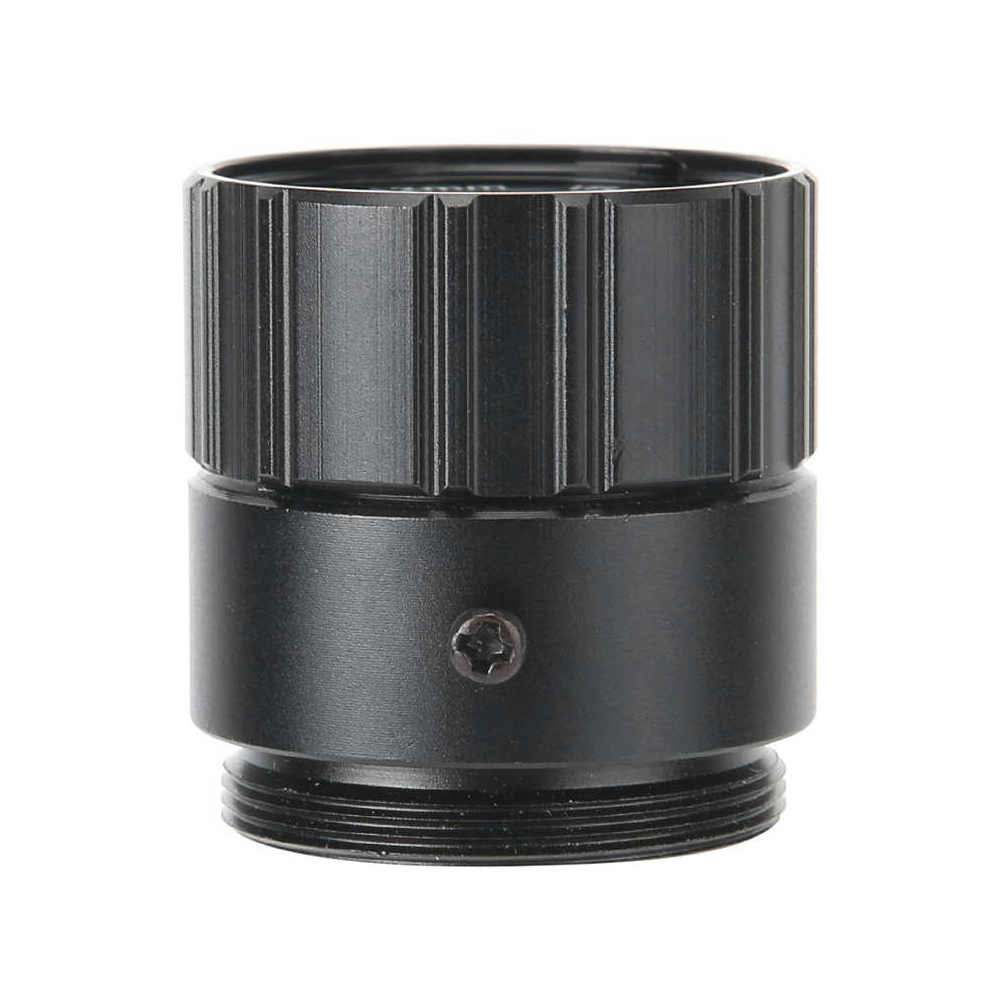

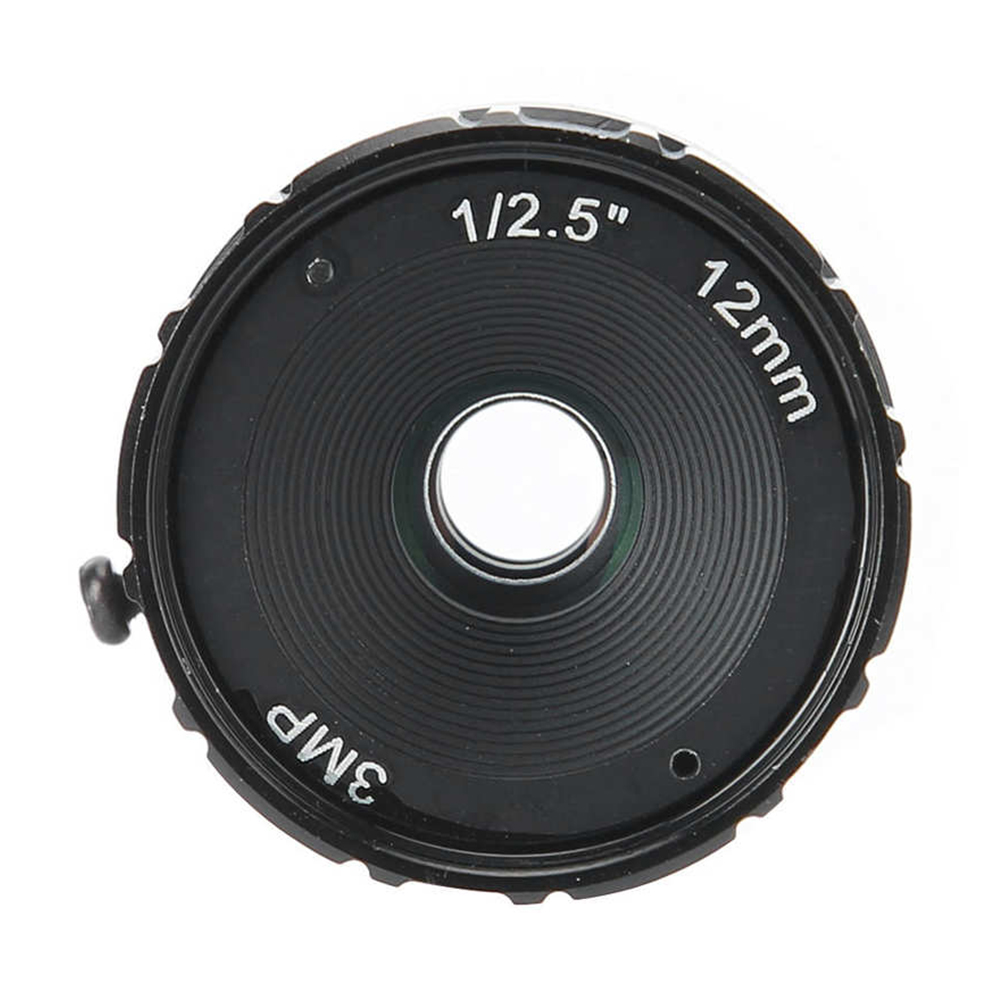

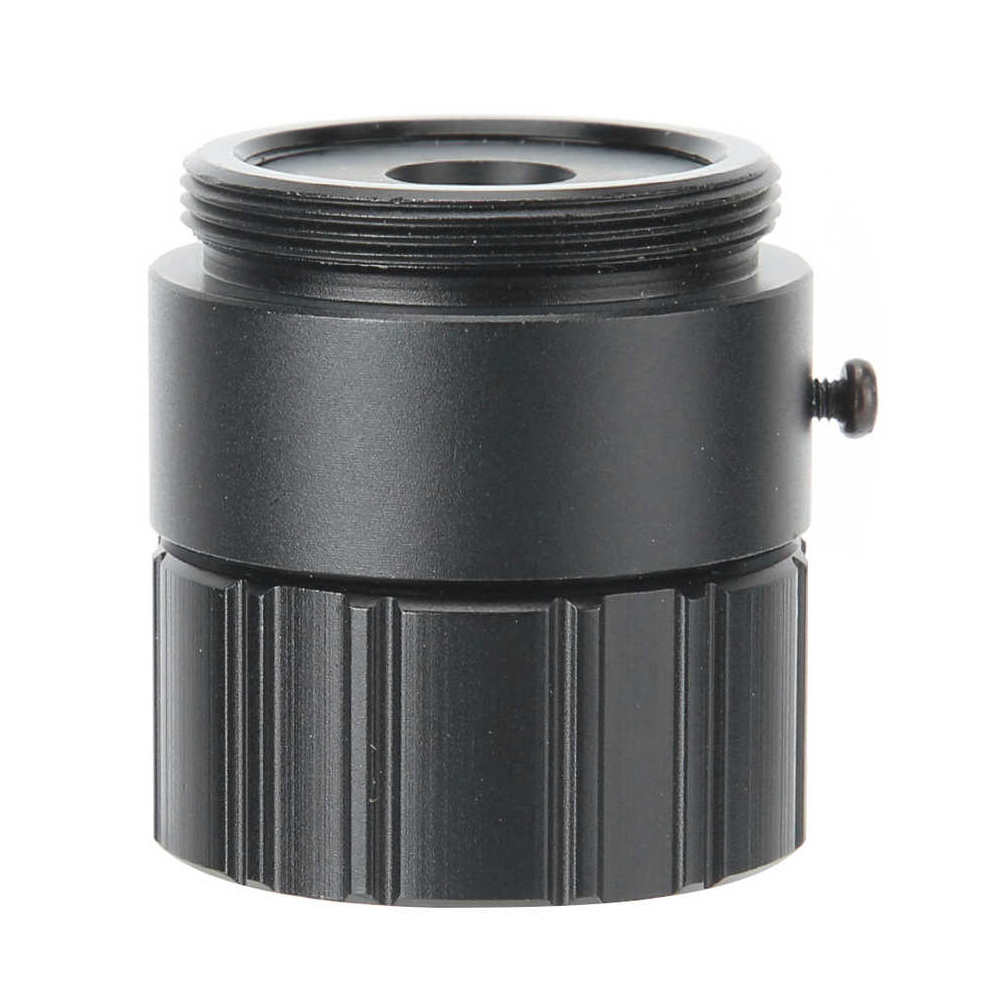

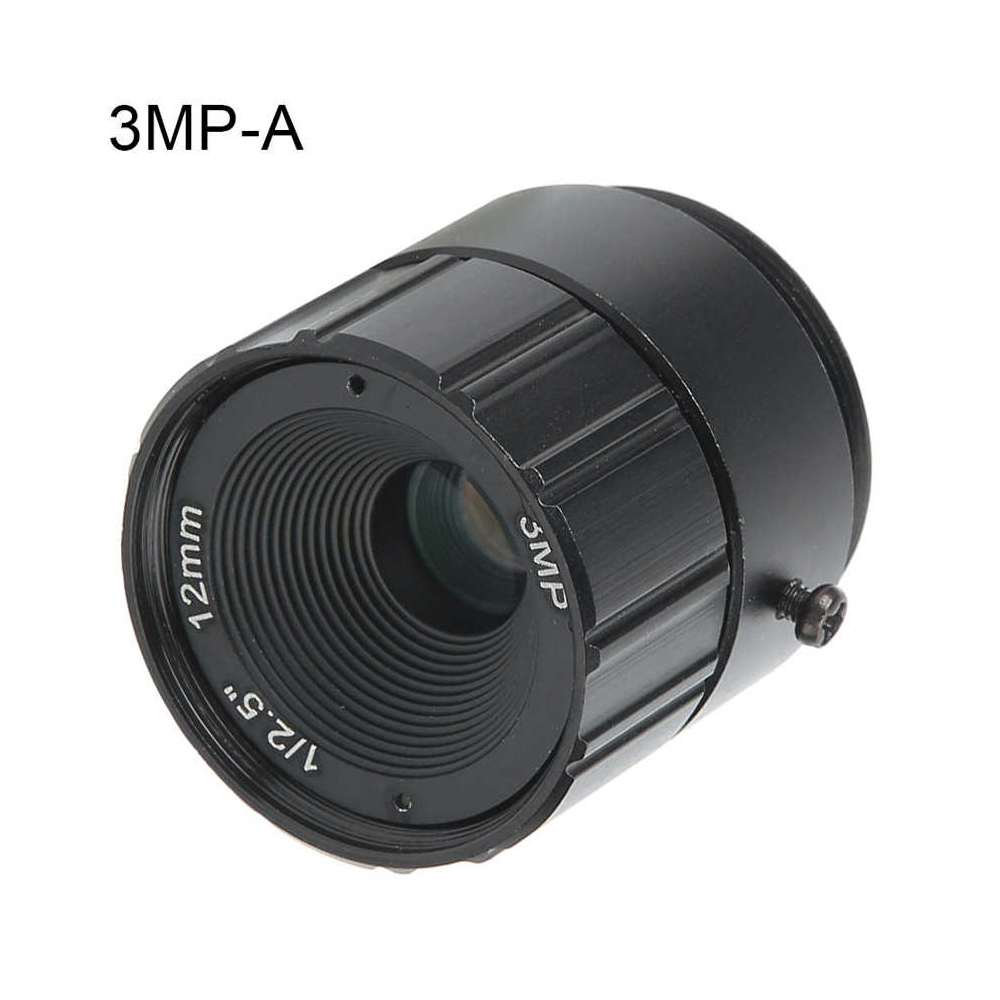

JY-CS-12FD-3MP-1/2.5F1.6
12mm focal length F2.0 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Mount | CS |
| Aperture | F2.0 |
| Resolution | 3 Megapixel |
| Image Form | 1/2.5" |
| Focal Length | 12mm |
| BFL | 12mm |
| MBF | 6.4mm |
| IRIS | Fixed |
| M.O.D. | 0.5m |
| Weight | 35g |
| Dimension | Φ28x30.5mm |
| Optical Distortion | -4.85% |
| Field Angle DxHxV(°) | 35°x28°x20.6°(1/2.5") |
| Operating temperature | -20°C ~+ 60°C |
WHAT PRODUCTS WE OFFER
JY-CS-25FD-5MP-1/2F1.4
25mm focal length F2.4 F No. Aperture 1/2“ Sensor 5MP fixed CS Mount lens
JY-CS-25FD-3MP-1/2F1.2
25mm focal length F1.2 F No. Aperture 1/2“ Sensor 3MP fixed CS Mount lens
JY-CS-16FD-5MP-1/2F1.4
12mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-16FD-3MP-1/2.5F1.6
16mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-8.0FD-12MP-1/1.7F1.2
8mm focal length F1.2 F No. Aperture 1/1.7“ Sensor 12MP fixed CS Mount lens
JY-CS-8.0FD-5MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-8.0FD-3MP-1/2.5F1.6
8mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-8.0FD-3MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-6.0FD-5MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-6.0FD-3MP-1/2.5F1.6
6mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-6.0FD-3MP-1/2.5F1.4
6mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-5.0D-12MP-1/1.7F1.2
5mm focal length F1.2 F No. Aperture 1/1.7“ Sensor 12MP fixed CS Mount lens
JY-CS-4.0FD-5MP-1/2.5F1.4
4mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-4.0FD-3MP-1/2.5F1.6
4mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-4.0FD-3MP-1/2.5F1.4
4mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-3.2FD-12MP-1/2.5F1.2
3.2mm focal length F1.2 F No. Aperture 1/2.5“ Sensor 12MP fixed CS Mount lens
JY-CS-2.8FD-5MP-1/2.5F1.4
2.8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-2.8FD-3MP-1/2.5F1.2
2.8mm focal length F1.2 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-2.5FD-3MP-1/2.5F1.2
2.5mm focal length F1.2 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-2.1FD-3MP-1/2.7F2.0
2.1mm focal length F2.0 F No. Aperture 1/2.7“ Sensor 3MP fixed CS Mount lens
