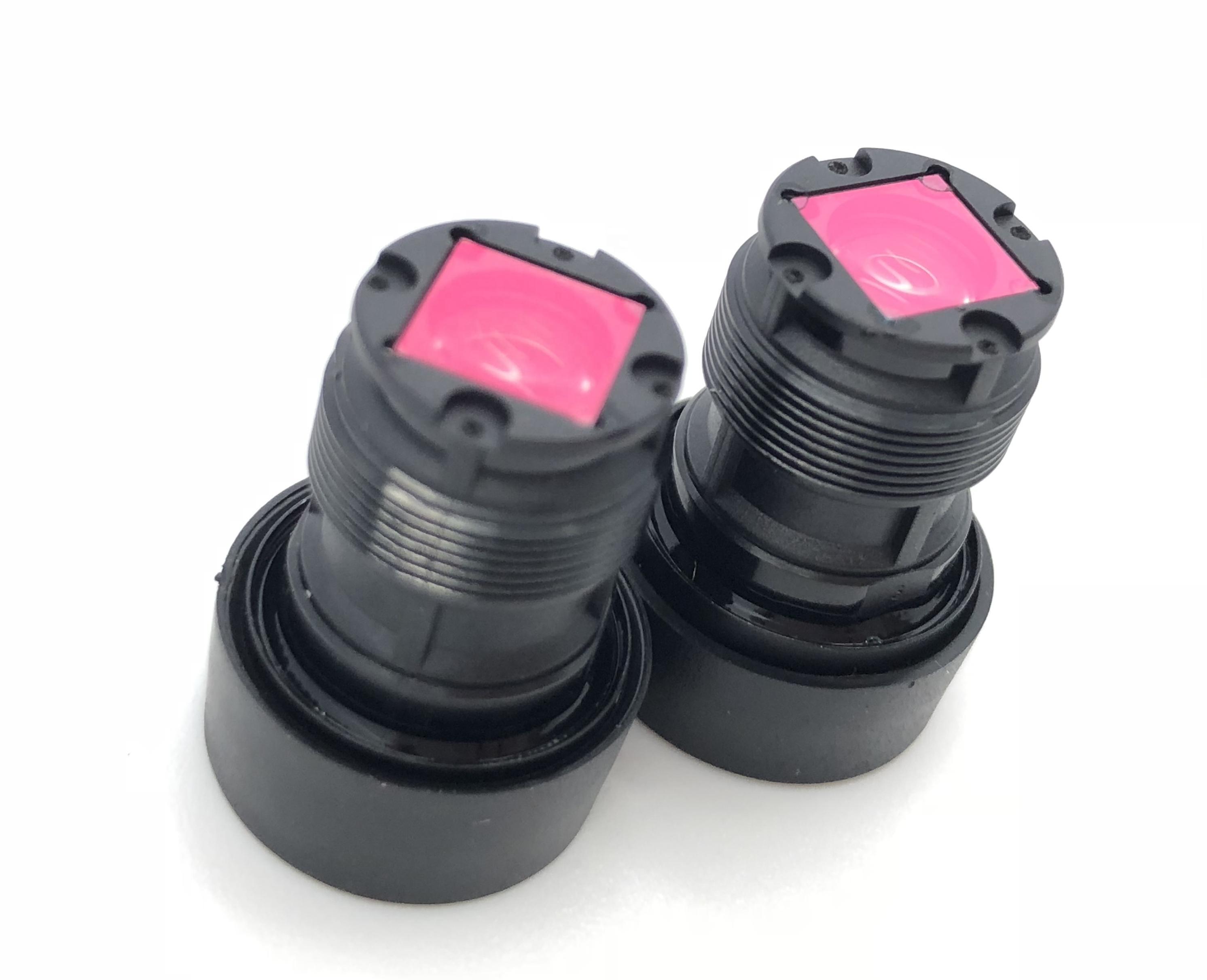

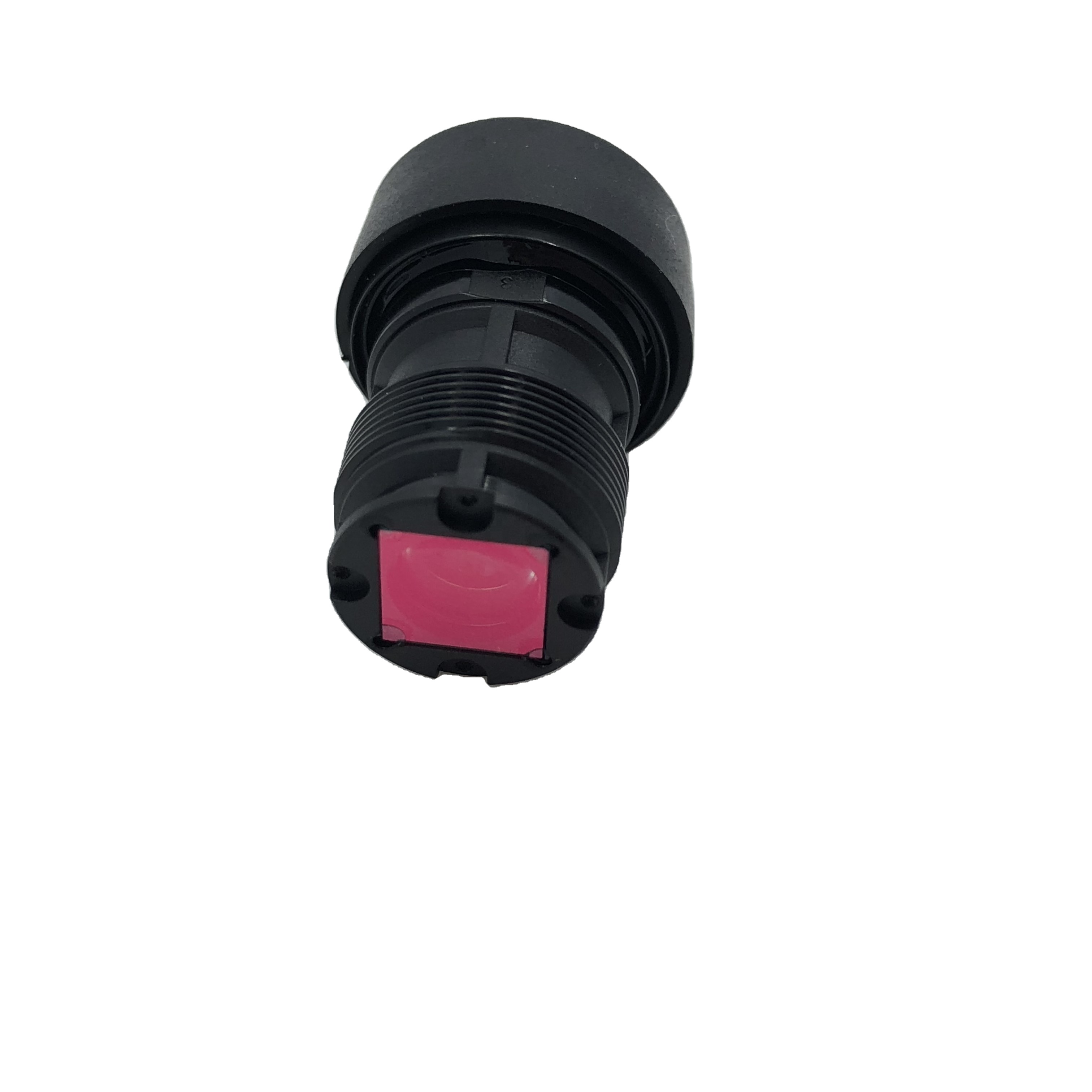

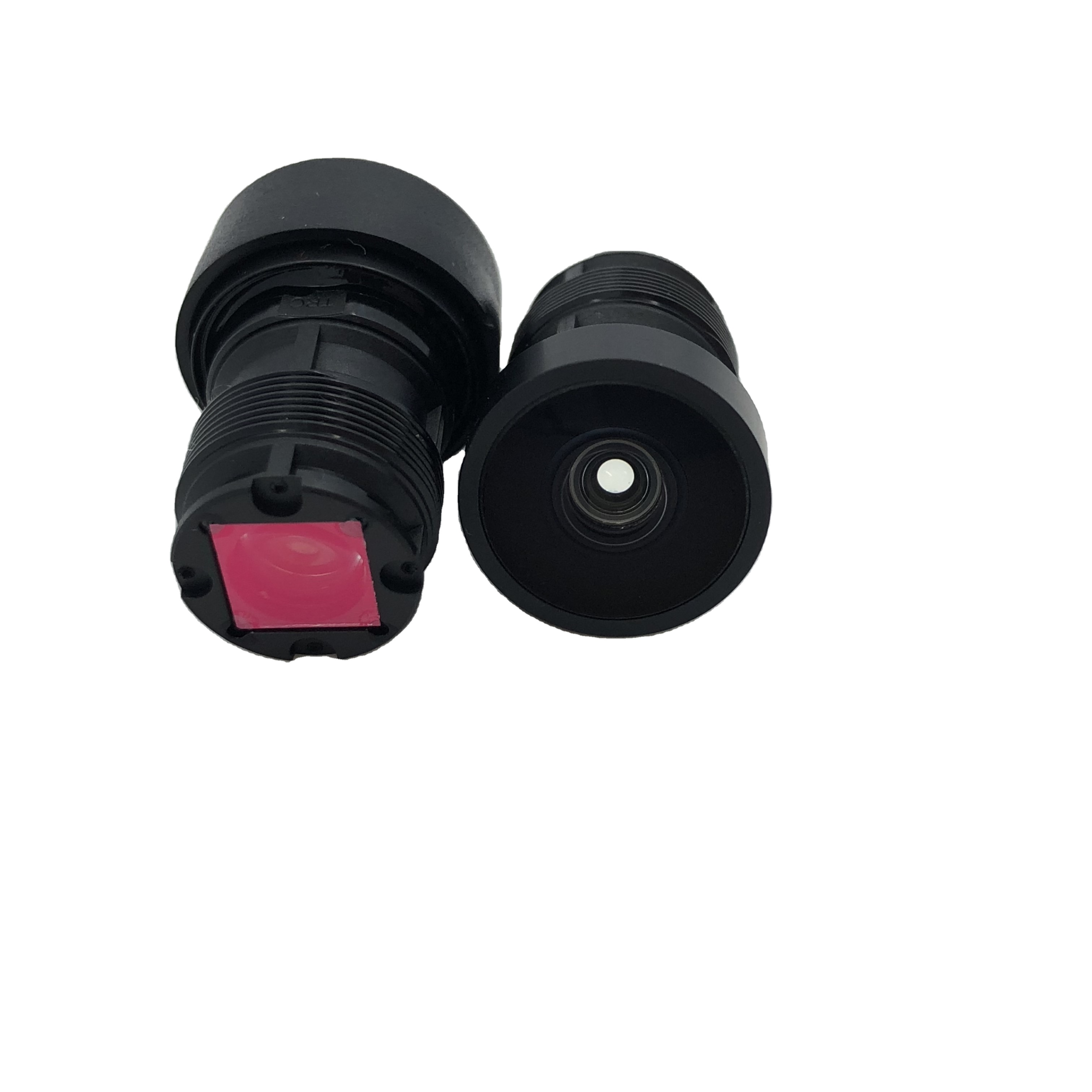

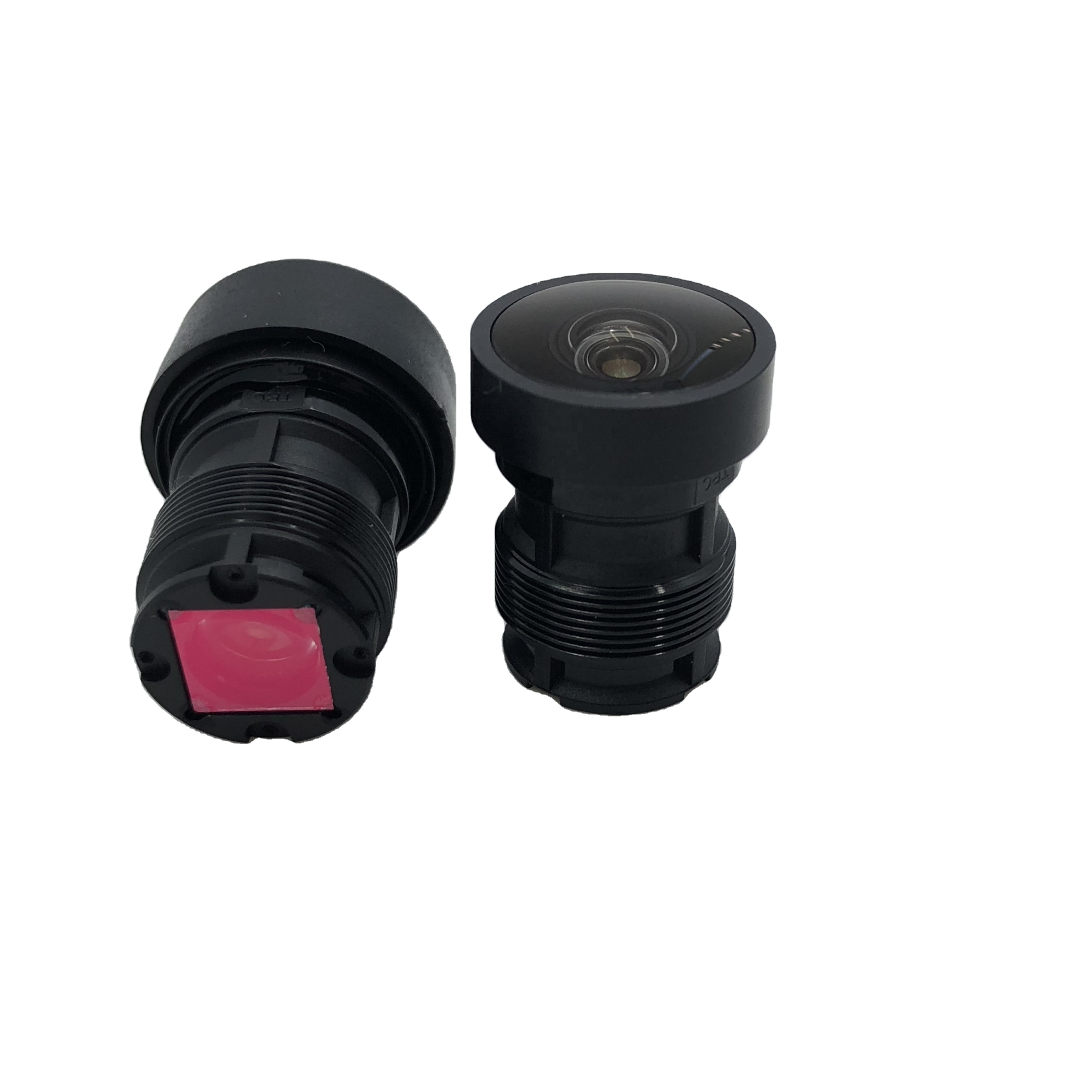

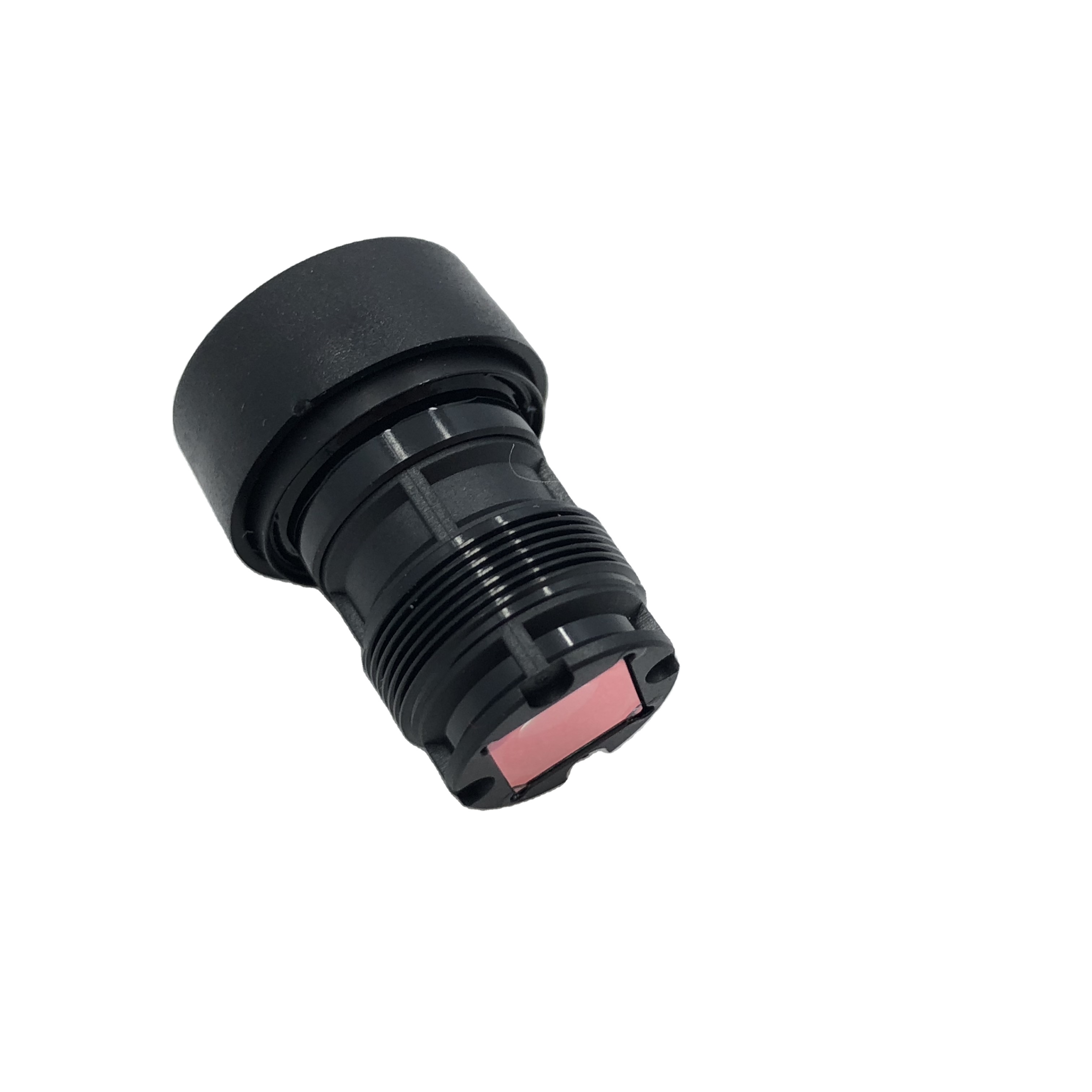

JY-M12-3.2LD-12MP-1/2.3
Low distortion 3.2mm focal length F2.6 Aperture 1/2.3 " image sensor 100.8°FOV 12MP 4K M12 S Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery

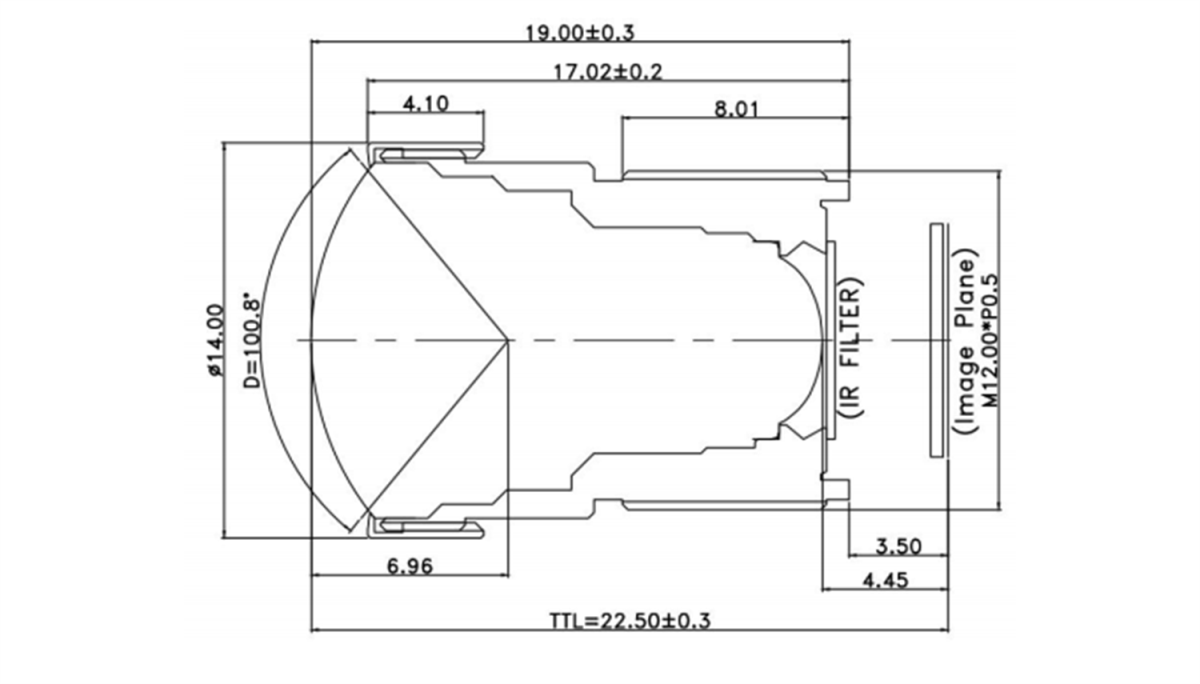

| Resolution | 12 Megapixel | |||||||||
| Image circle | 1/2.3" | |||||||||
| Focal length | 3.2mm | |||||||||
| Aperture | F2.6 | |||||||||
| FOV （D*H*V) | 1/2.3" 100.8°*87.6°* 70.9° | |||||||||
| Mount | M12*P0.5 | |||||||||
| optical Backfocal Length | 4.45mm | |||||||||
| mechanical BackFocal Length | 3.50mm | |||||||||
| TTL | 19.00mm | |||||||||
| Optical Distortion | <0.6% | |||||||||
| Relative illumination | >60% | |||||||||
| Lens structure | 4G2P+IR650 | |||||||||
| CRA | <18.77° | |||||||||
|
Operation |
Iris | Fix | ||||||||
| Focus | Fix | |||||||||
| Zoom | / | |||||||||
| HSF&Safety | ROHS | |||||||||
