View large
JY-2812D14Z-3MP-1/2.7F1.4
2.8-12mm motorized zoom F1.4 Aperture 1/2.7" sensor M12 M14 D14 Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 3 Megapixel | |||||||||
| Image format | 1/2.7" | |||||||||
| Focal length | 2.8-12mm | |||||||||
| Aperture | F1.4 | |||||||||
| Mount | D14 | |||||||||
|
（Field Angle) D×H×V(°) |
" ° |
1/2.7 | 1/3 | 1/4 | ||||||
| short focus | telephoto | short focus | telephoto | short focus | telephoto | |||||
| D | 140 | 40 | 120 | 36 | 82.6 | 27.2 | ||||
| H | 100 | 32 | 89 | 29 | 64 | 21.6 | ||||
| V | 72 | 24 | 64 | 21.6 | 27 | 16.2 | ||||
| Optical Distortion | 64.5%～-4.3% | -48%～-3.5% | -24.1%～-1.95% | |||||||
| M.O.D. | 0.3m | |||||||||

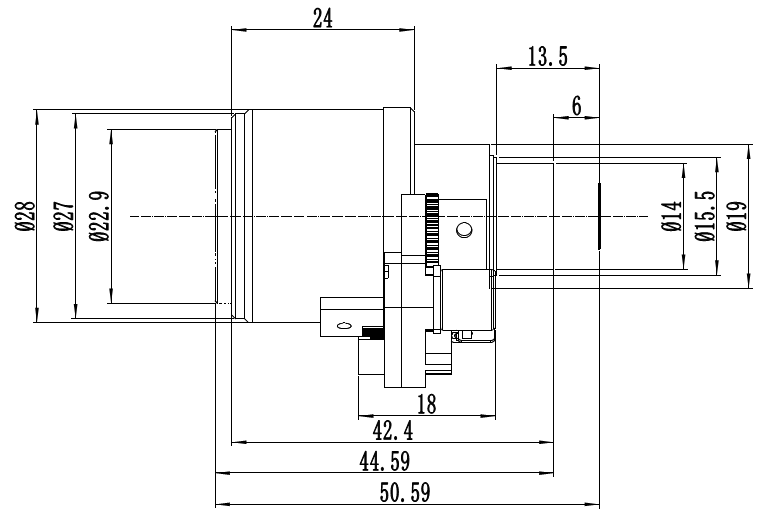

| Dimension | Φ28*42.4～44.59mm | |||||||||
| Flange BFL | 13.5mm | |||||||||
| Weight | 39±2g | |||||||||
| BFL | 7.1～13.6mm | |||||||||
| MBF | 6mm | |||||||||
| IR Correction | Yes | |||||||||
|
Operation |
Iris | Fixed | ||||||||
| Focus | DC | |||||||||
| Zoom | DC | |||||||||
| Operating temperature | -20℃～+60℃ | |||||||||
