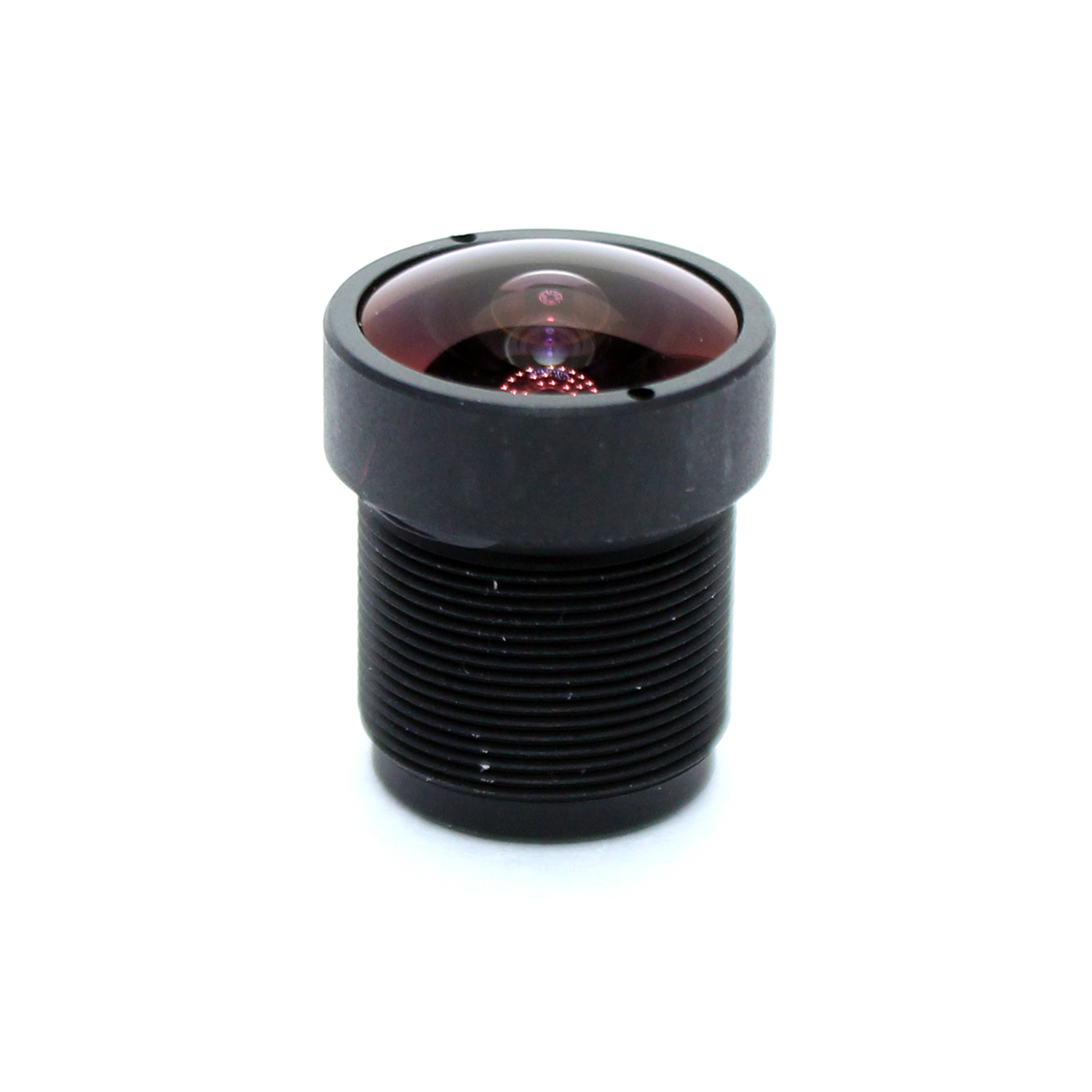

JY-M12-2.1BD-3MP-1/2.7
2.1 mm focal length F2.0 1/2.7" Sensor 160°FOV 3MP M12 Mount CCTV Lens
- Online customer service
- Factory guarantee
- Ontime delivery
Lens Advantages:
- Big Aperture@ F2.0, best night vision.
- Support 1/2.7,1/3” INCH Sensor, No dark corner.
- Super Clearly Image, No Purple line.
- Support 1MP 2MP 3MP HD CCTV Camera.

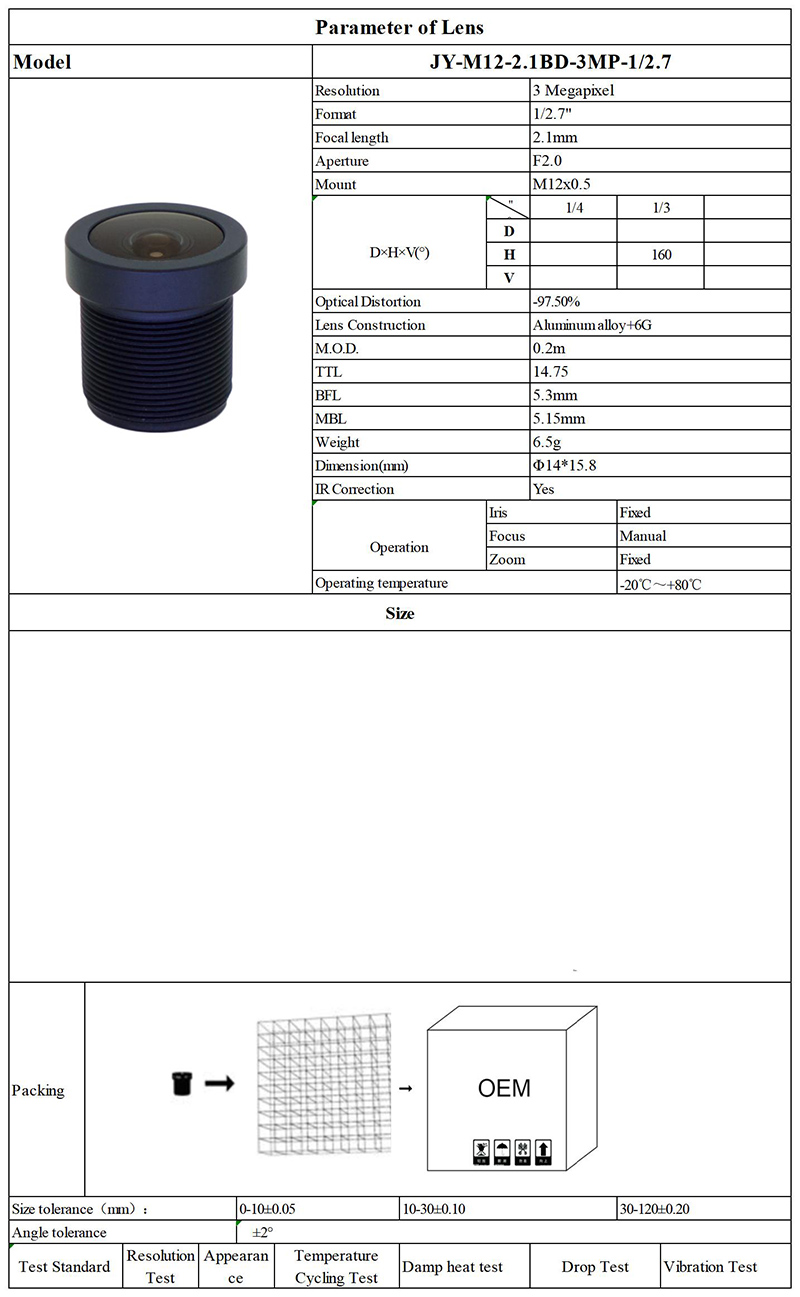

Key Features:
- Focal Length (mm): 2.1mm
- Resolution (Pixels): 3MP
- Image Size: 1/2.7"
- Aperture D/f": F2.0
- Field of View(Diagonal): 160°
- Mount Type: M12*0.5

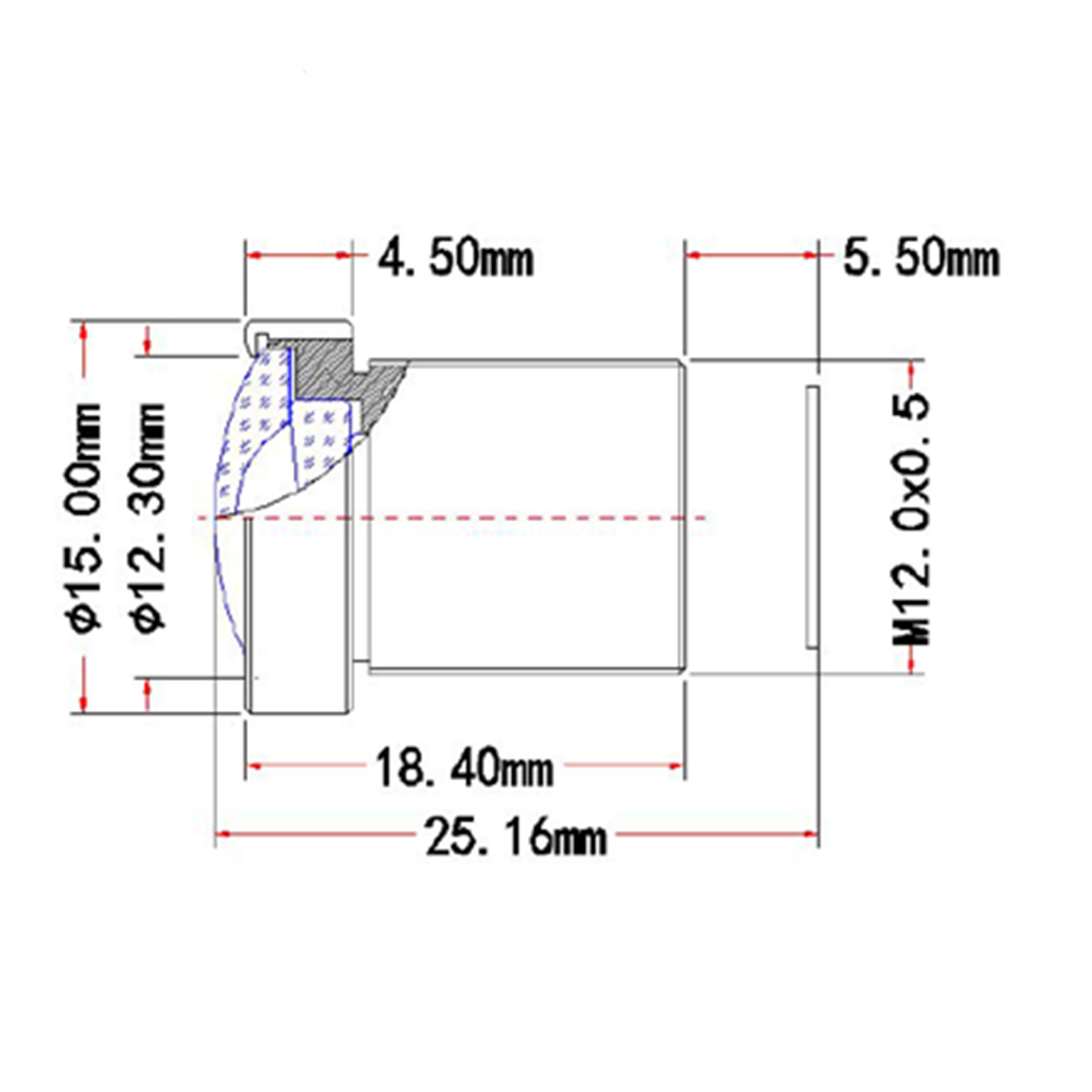

- Dimension (mm): Φ14*15.8
- Operating Temperature: -20℃~+80℃
- Back Focal-Length (mm): 5.3
- Weight (g): 6.5g
- Operation: Fixed, Fixed IRIS
Production applications:
CCTV surveillance, high-precision optical systems,Machine vision,etc
