JY-C-0418M-3MP-1/1.8F1.6

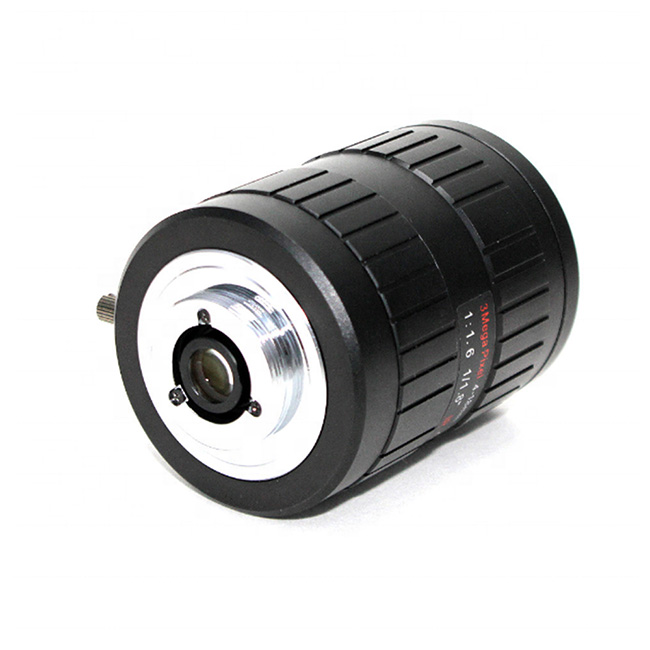

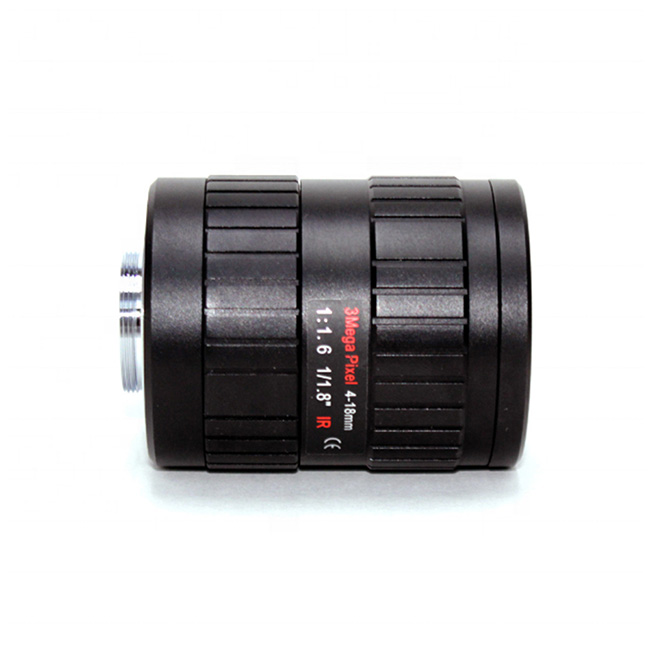

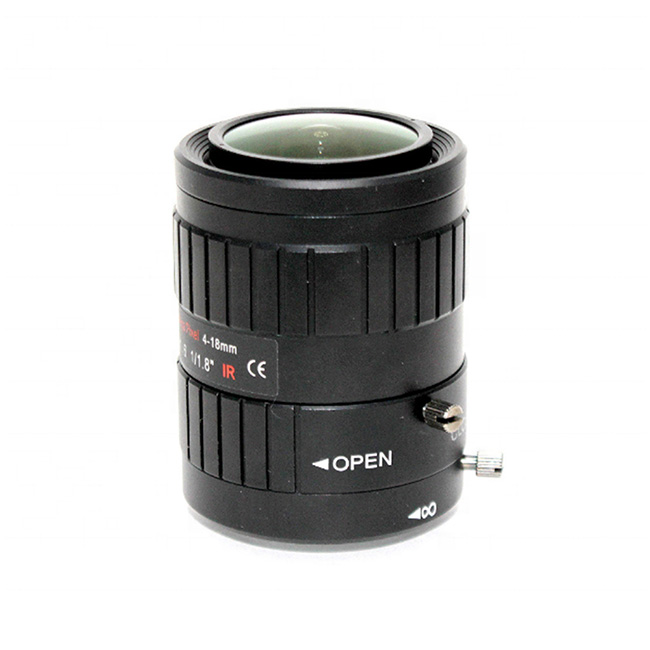

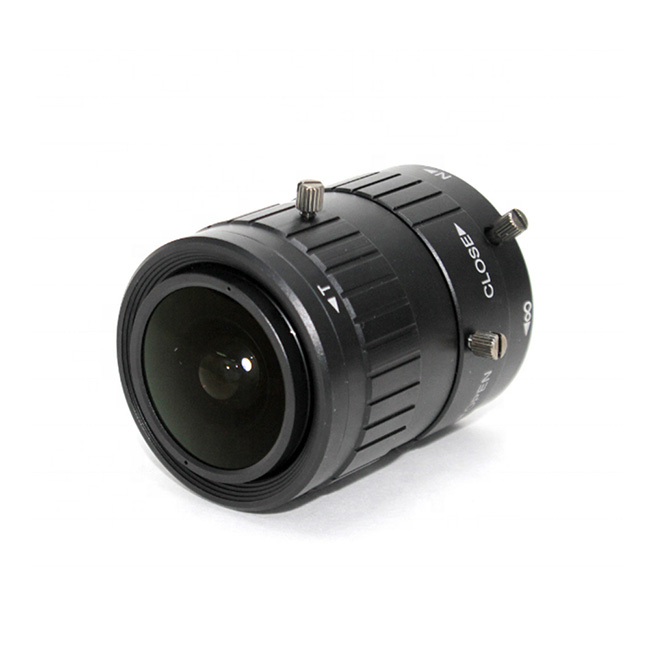

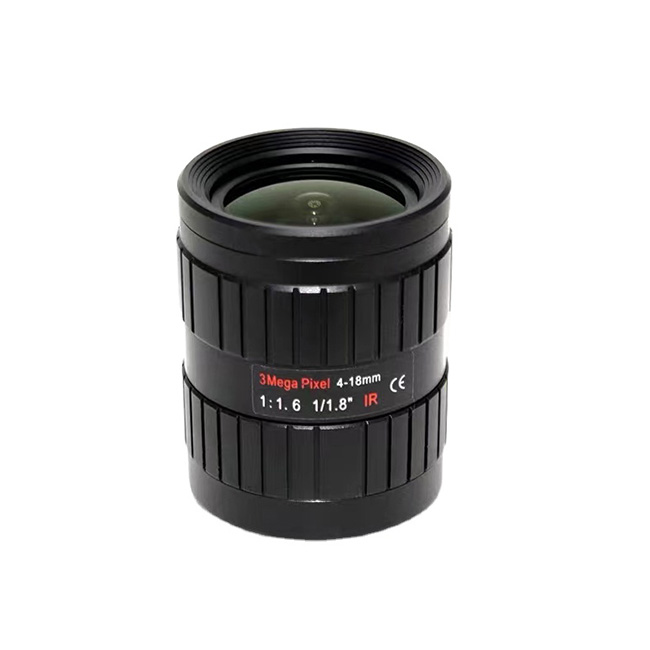

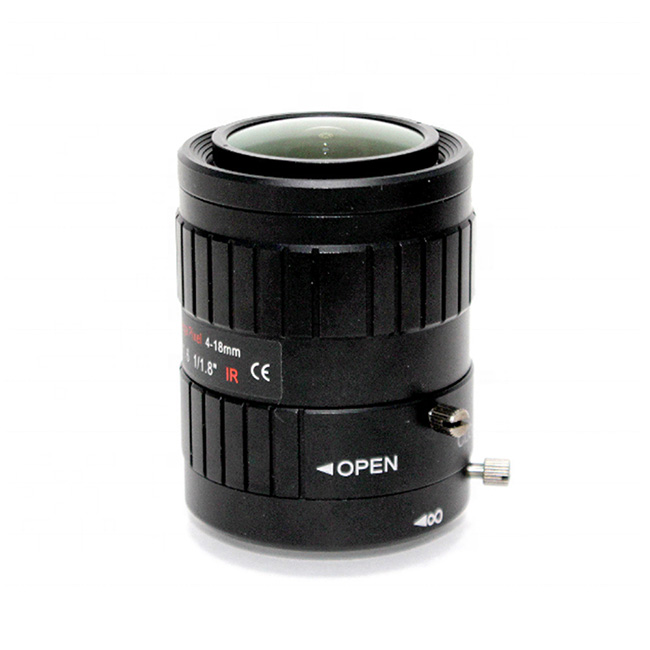

4-18mm F1.6 Aperture 1/1.8" 3MP manual focus and manual zoom c mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| (Resolution) | 3 Megapixel | ||||||
| (Image format ) | 1/1.8” | ||||||
| (Focal length) | 4~18mm | ||||||
| (Aperture) | Fl.6 | ||||||
| (Mount) | C | ||||||
| 1/1.8 | 1/2 | 1/3 | |||||
| (Field Angle) D*H*V(°) | short focus | telephoto | short focus | telephoto | short focus | telephoto | |
| D | 137 | 31 | 120 | 29 | 85.5 | 21 | |
| H | 110 | 25 | 92 | 23 | 69 | 17 | |
| V | 82 | 19 | 67 | 17.2 | 52 | 13 | |
| (Optical Distortion) | -57.5%~-2. 7% | -46.5%~ -2.25 | -24.8%~-1.2% | ||||
| (M.O.D.) | 0.3m | ||||||
| (Dimension) | 52X79.1mm | ||||||
| (Weight) | 241 ±5g | ||||||
| (Flange BFL) | 17.526mm | ||||||
| (BFL) | 8~20mm | ||||||
| (MBF) | 7. 9~11.1mm | ||||||
| (IR Correction) | Yes | ||||||
| Operation | (Iris) | (Manual) | |||||
| (Focus) | (Manual) | ||||||
| (Zoom) | (Manual) | ||||||
| TffeiU/ff (OoeratinR Irnuorature) | -20°C ~+60°C | ||||||
