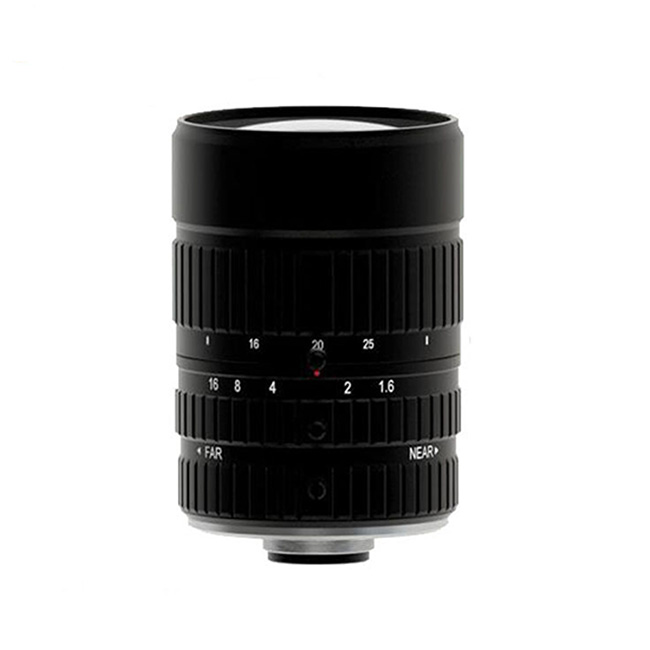

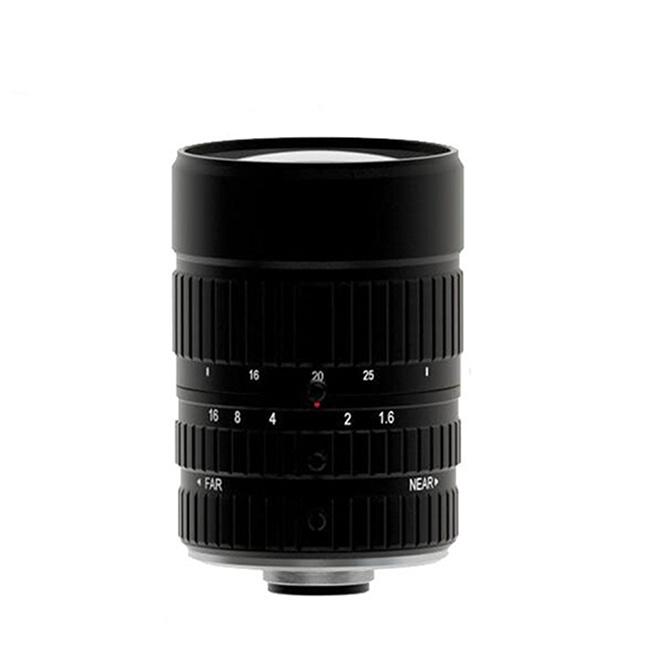

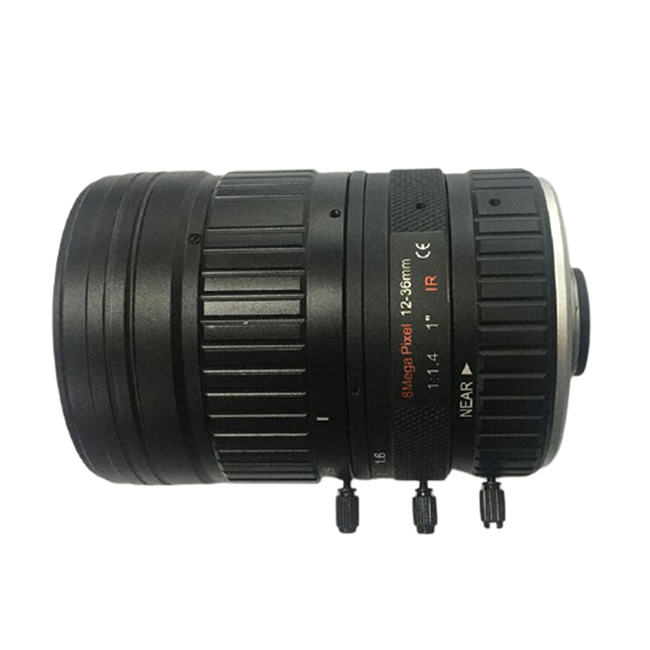

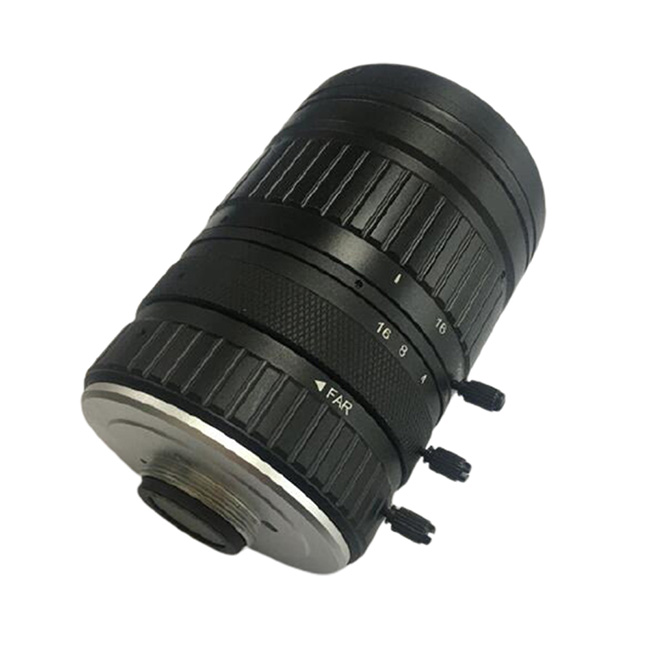

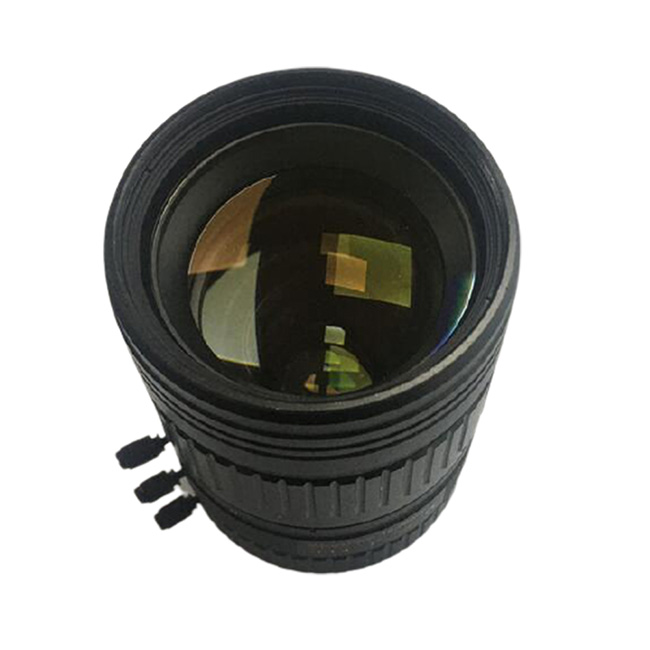

JY-C-1236M-8MP-1F1.6
12-36mm F2.0 Aperture 1 " 8MP manual focus and manual zoom c mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Model | JY-C-1236M-8MP-1F1.6 | |||||
| Focal Length: | 12-36mm | |||||
| Resolution: | 8MP | |||||
| Image Format: | 1" | |||||
| Aperture: | F1.6 | |||||
| Mount: | C | |||||
| Field Angle D× H× V(° ) | 1" | 2/3" | 1/2" | |||
| Short | Long | Short | Long focus | Short focus | Long | |
| focus | focus | focus | focus | |||
| 67.2 | 28.6 | 47.3 | 19.3 | 34.7 | 14 | |
| 54.6 | 22.6 | 38.1 | 15.4 | 27.9 | 11.4 | |
| 41.5 | 16.8 | 28.7 | 11.5 | 20.9 | 8.3 | |
| Optical Distortion: | -8.0%~-4.86%(1") | |||||
| CRA: | ≤5.82° (Short focus) | |||||
| ≤4.9° (long focus) | ||||||
| M.O.D.: | 2.5m | |||||
| Flange BFL | 17.526mm(in air) | |||||
| IR Correction | YES | |||||

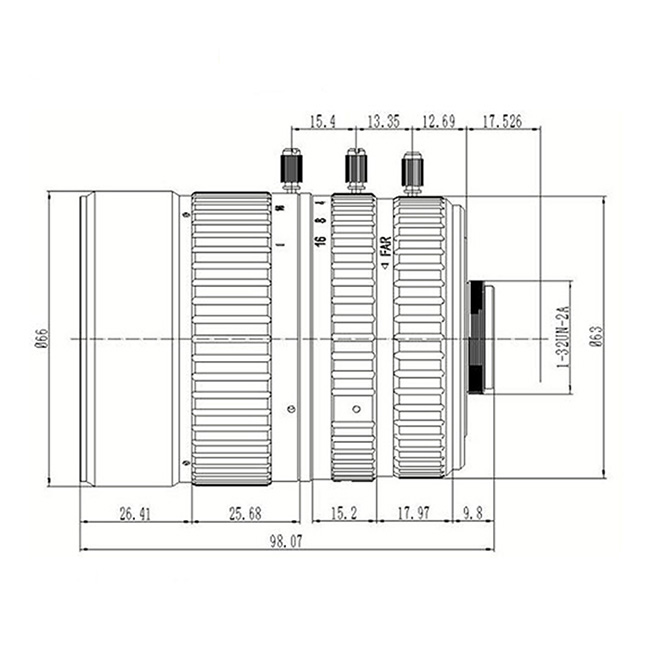

| Dimension: | Φ 66× 98.1mm | |||||
| Weight: | 570g | |||||
| Iris: | Manual | |||||
| Focus | Manual | |||||
| Zoom | Manual | |||||
| Operating Temperature: | -20℃ ~+60℃ | |||||
