View large
JY-C-1648M-3MP-2/3F2.0

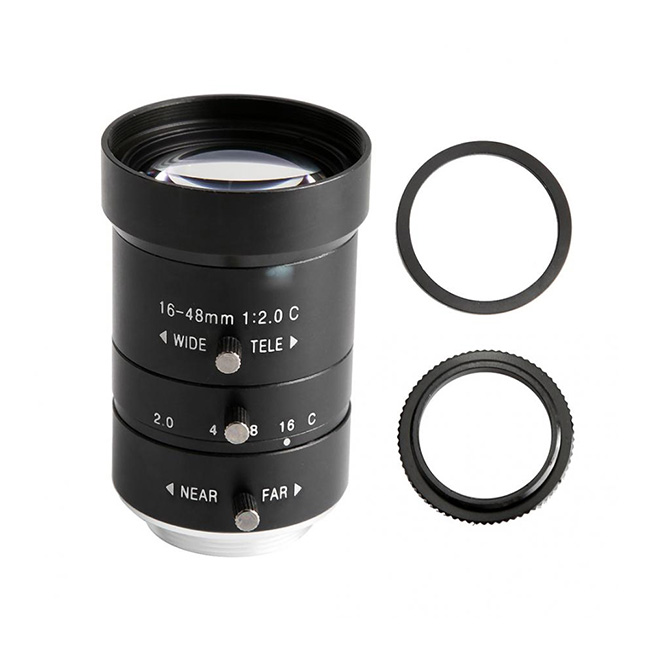

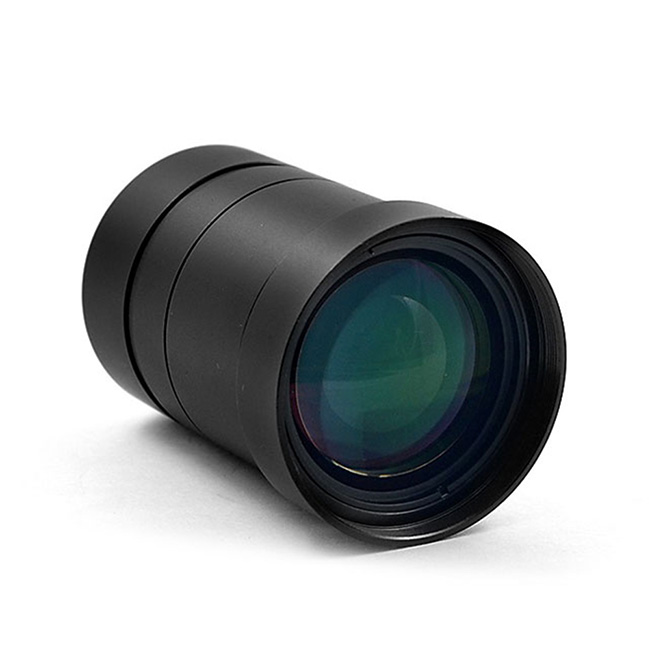

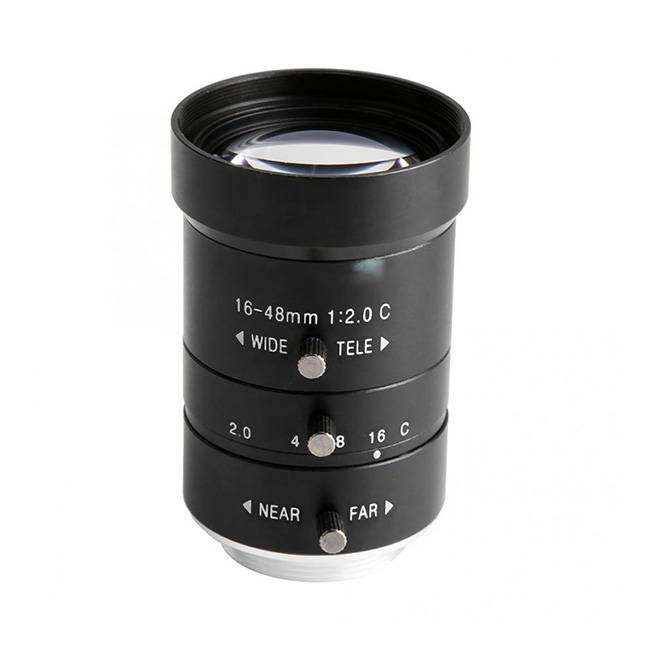

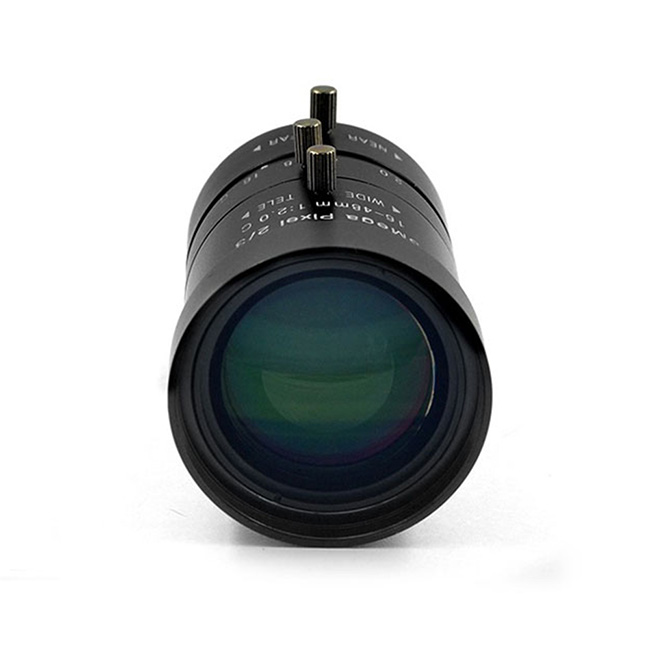

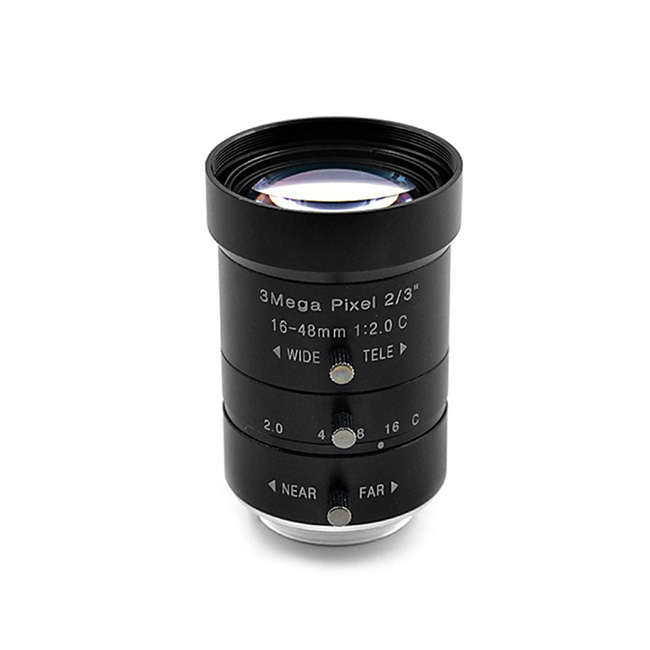

16-48mm F2.0 Aperture 2/3 " 3MP manual focus and manual zoom c mount lens
- Online customer service
- Factory guarantee
- Ontime delivery

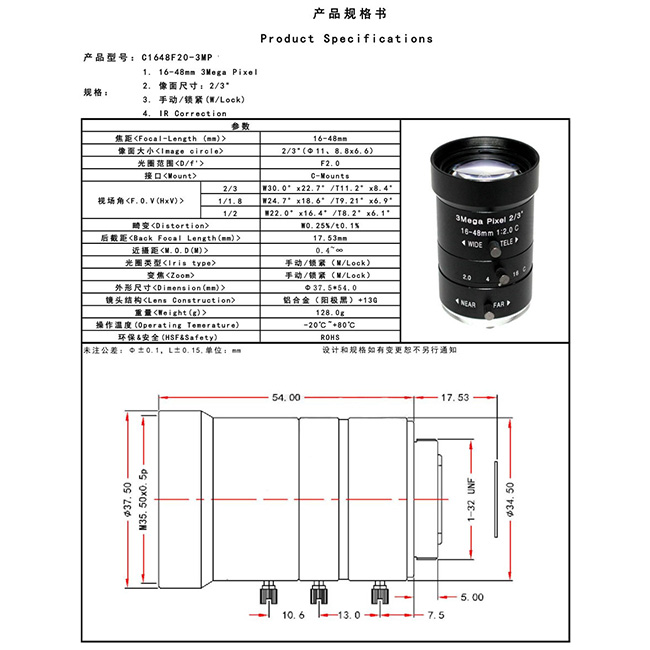

| Model | JY-C-1648M-3MP-2/3F2.0 | |
| Foca 1 -Length (mm) | 16-48mm | |
| 1 mage c i rc 1 e | 2/3" (0) 11、8. 8x6. 6) | |
| D/f | F2. 0 | |
| Mount | C-Mounts | |
| F. 0. V(HxV) | 2/3 | W30. 0° x22. 7° /T11.2° x8. 4° |
| 1/1.8 | W24.7° x18.6° /T9.21° x6. 9° | |
| 1/2 | W22.0° x16.4° /T8.2° x6. 1 ° | |
| D i s tor t i on | WO.25%/tO.1% | |
| Back Focal Length (mm) | 17.53mm | |
| O.D.M | 0. 4~8 | |
| 1 r i s type | M/Lock | |
| Zoom | M/Lock | |
| D i mens i on (mm) | 0)37. 5*54. 0 | |
| Lens Construct i on | Aluminum alloy (anodized black)+13G | |
| Weight (g) | 128.0g | |
| Operat i ng Temerature | -20°C~+80°C | |
| HSF&Safety | ROHS | |
WHAT PRODUCTS WE OFFER
JY-0550M3MPCS12.5
5-50mm F1.4 Aperture 1/2.5 " 3MP manual focus and manual zoom cs mount lens
JY-0550M3MPCS12.7A
5-50mm F1.4 Aperture 1/2.7 " 3MP manual focus and manual zoom cs mount lens
JY-0550M5MPCS12.7
5-50mm F1.4 Aperture 1/2.7 " 5MP manual focus and manual zoom cs mount lens
JY-C-0412M-2MP-1/2F1.6
4-12mm F1.6 Aperture 1/2 " 2MP manual focus and manual zoom c mount lens
JY-C-0412M-3MP-1/2F1.4
4-12mm F1.4 Aperture 1/2 " 3MP manual focus and manual zoom c mount lens
JY-C-0418M-3MP-1/1.8F1.6
4-18mm F1.6 Aperture 1/1.8" 3MP manual focus and manual zoom c mount lens
JY-C-0612M-3MP-1/1.8F1.6
6-12mm F1.4 Aperture 1/1.8 " 3MP manual focus and manual zoom c mount lens
JY-C-0850M-3MP-1/2F1.4
8-50mm F1.4 Aperture 1/2 " 3MP manual focus and manual zoom c mount lens
JY-C-1040M-8MP-1/1.8F1.4
10-40mm F1.4-F16 Aperture 1/1.8 " 8MP manual focus and manual zoom c mount lens
JY-C-1050M-8MP-1/1.8F2.0
5-50mm F2.0 Aperture 1/1.8 " 8MP manual focus and manual zoom c mount lens
JY-C-1236M-3MP-1/1.8
12-36mm F2.0 Aperture 1/1.8 " 3MP manual focus and manual zoom c mount lens
JY-C-1236M-8MP-1F1.6
12-36mm F2.0 Aperture 1 " 8MP manual focus and manual zoom c mount lens
JY-C-1648M-3MP-1/1.8F2.0
16-48mm F2.0 Aperture 1/1.8 " 3MP manual focus and manual zoom c mount lens
JY-C-2812M-3MP-1/2F1.6
2.8-12mm F1.6 Aperture 1/2 " 3MP manual focus and manual zoom c mount lens
JY-C-12120M-3MP-1/1.8F1.6
12-120mm F1.6 Aperture 1/1.8 " 3MP manual focus and manual zoom c mount lens
JY-CS-5-50mm-1MP-1/3F1.8
5-50mm F1.8 Aperture 1/13 " 1MP manual focus and manual zoom cs mount lens
JY-CS-0612M-2MP-1/2F1.6
6-12mm F1.6 Aperture 1/2 " 2MP manual focus and manual zoom cs mount lens
JY-CS-0615M-1MP-1/3F1.4
6-15mm focus length F1.4 Aperture 1/3 " 1MP manual focus and manual zoom CS Mount cctv lens
JY-CS-0660M-1MP-1/3F1.6
6-60mm focus length F1.6 Aperture 1/3 " 1MP manual focus and manual zoom CS Mount cctv lens
JY-CS-0922M-2MP-1/3F1.4
9-22mm focus length F1.4 Aperture 1/3 " 2MP manual focus and manual zoom CS Mount cctv lens
JY-CS-2812M-3MP-1/2.7F1.4
2.8-12mm focus length F1.4 Aperture 1/2.7 " 3MP manual focus and manual zoom CS Mount cctv lens
JY-CS-3508M-1MP-1/3F1.4
3.5-8mm focus length F1.4 Aperture 1/23" 1MP manual focus and manual zoom CS Mount cctv lens
JY-CS-05100M-2MP-1/2.9F1.6
5-100mm focus length F1.6 Aperture 1/3" 2MP manual focus and manual zoom CS Mount cctv lens
JY-CS-05100M-2MP-1/3F1.6
5-100mm manual focus and zoom 1/3" F1.6 2MP CS Mount lens
JY-M0820C-3MP-2/3F1.7
8-20mm manual focus and zoom 2/3" F1.7 3MP C Mount lens
PT10420M2MPCS
4-20mm manual focus and zoom 1/2.7" F1.4 2MP CS Mount Pinhole lens
