JY-M12-1.7FY-5MP-1/2.5

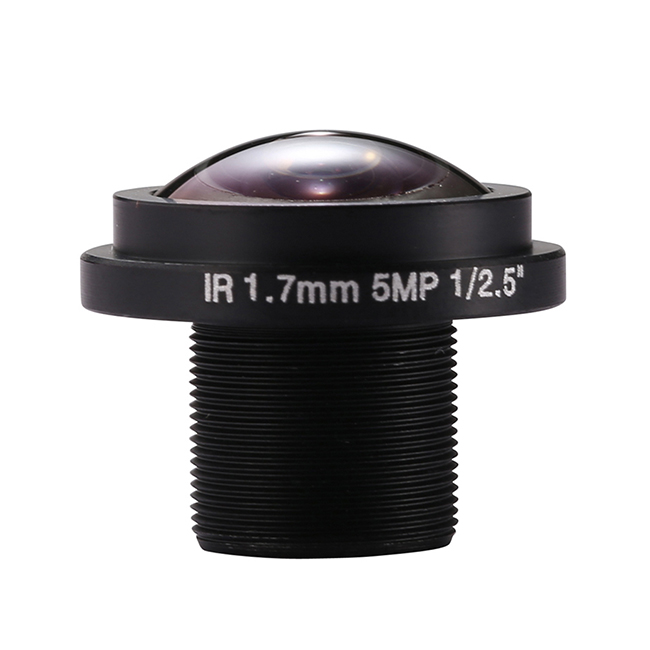

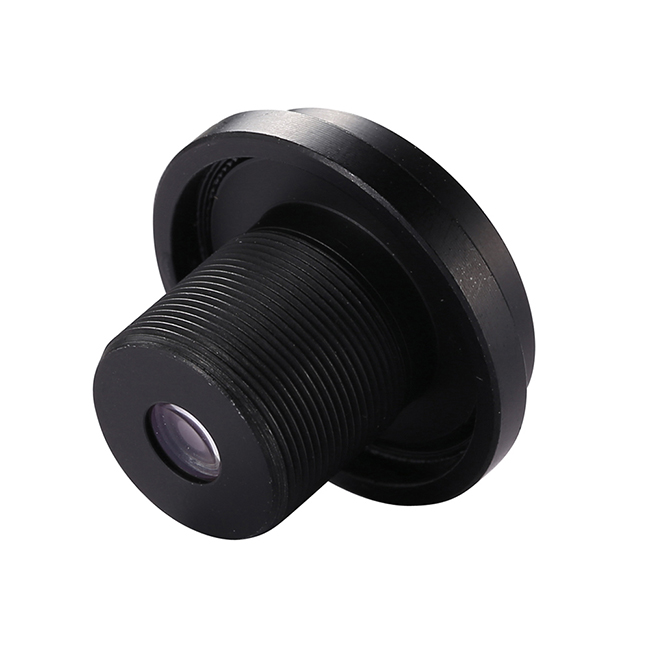

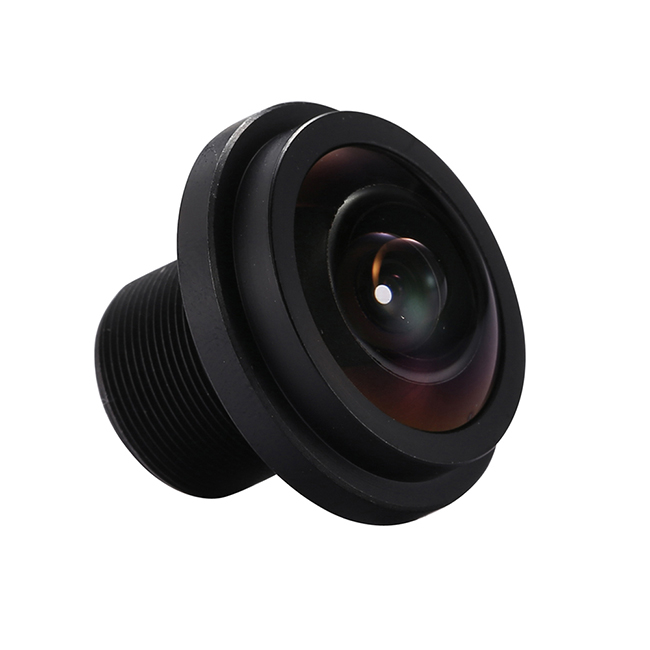

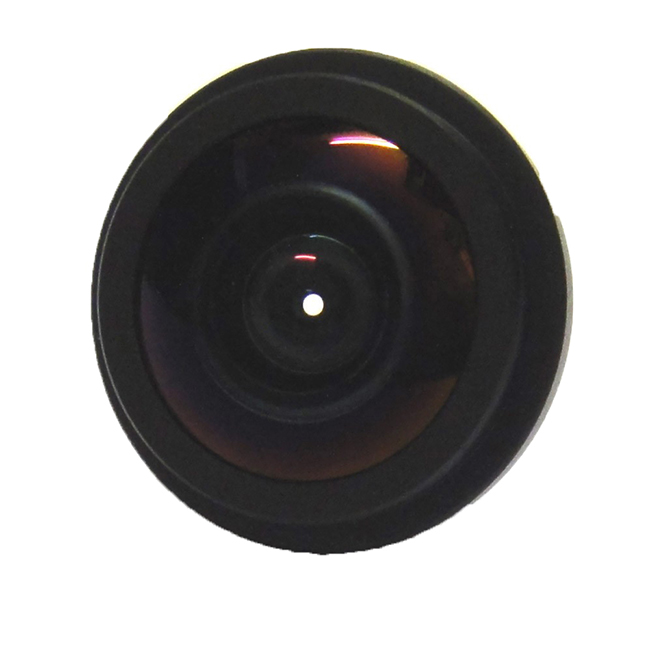

1/2.5" image sensor 1.7mm focal length F2.0 Aperture 5 megapixel 180 degree FOV M12 mount fisheye wide angle lens for cctv cameras
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 5MP |
| Image format(Inch) | 1/2.5" |
| Focal length(mm) | 1.7MM |
| Aperture(D/F) | F2.0 |
| Field of View | 180° |
| Mount | M12*0.5 |

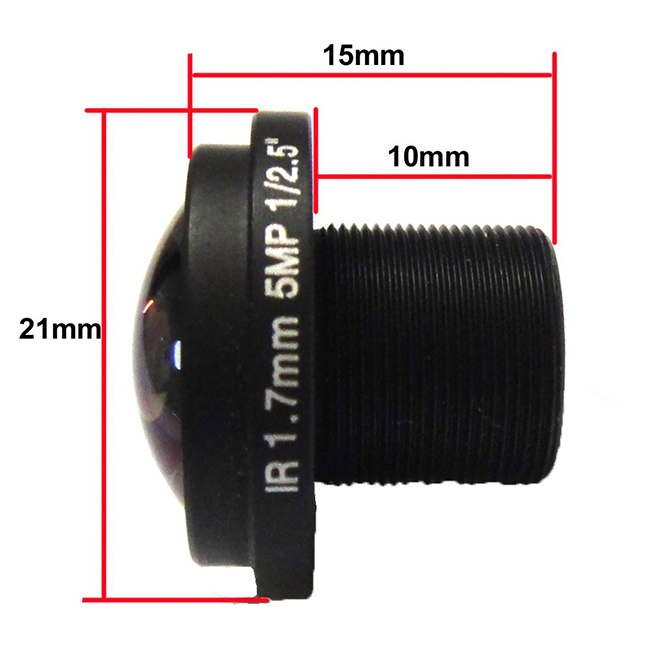

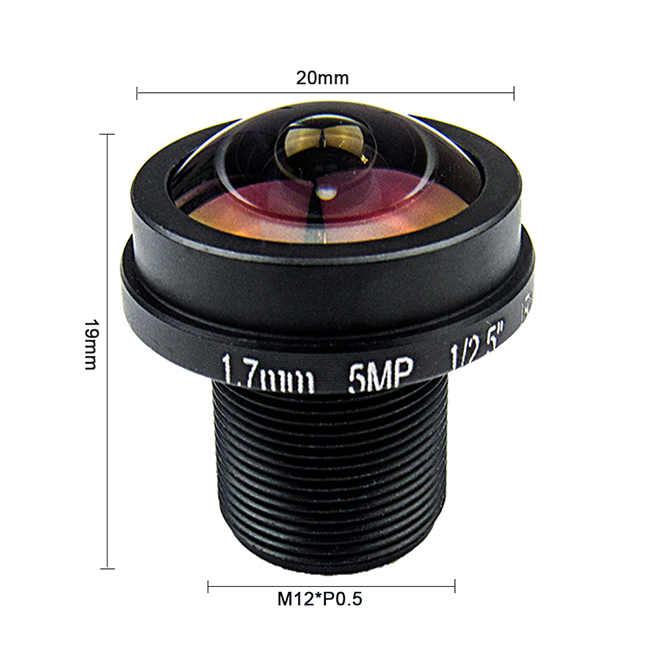

| Dimensions(mm) | 12mm*18.3*20.5mm |
| ZOOM | Fixed |
| Focus | Fixed |
| Iris | Fixed |
| Weight | 4g |
| Working Temperature | -20°C~60°C |
| color | black |
