JY-M12-2.0FY-5MP-1/2.5

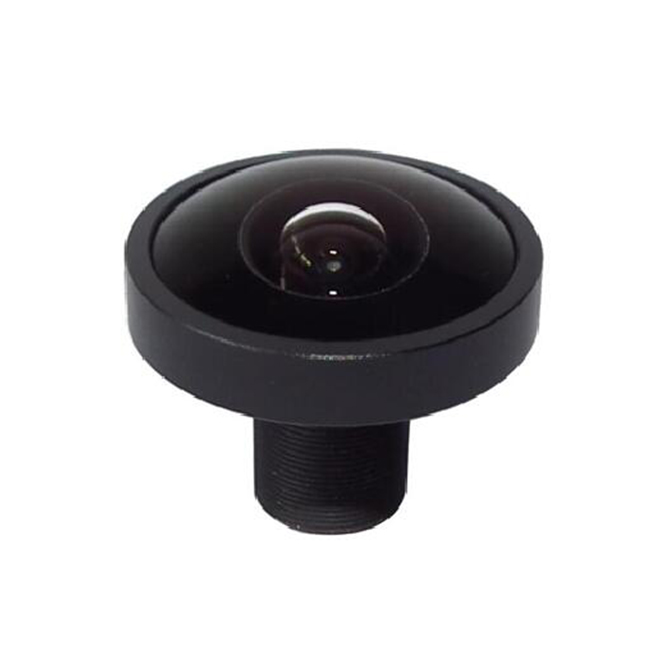

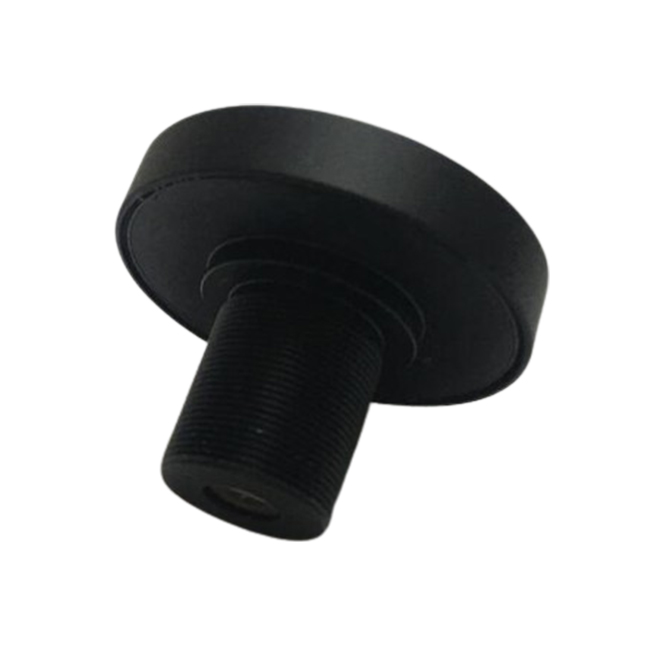

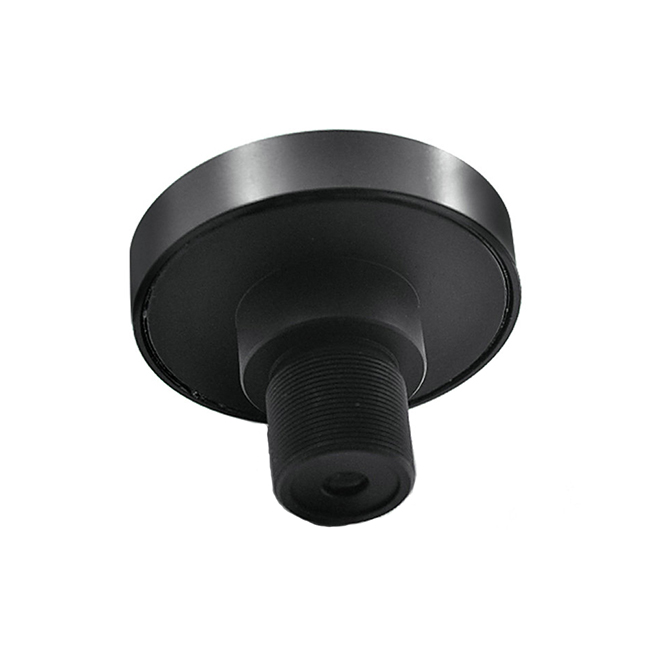

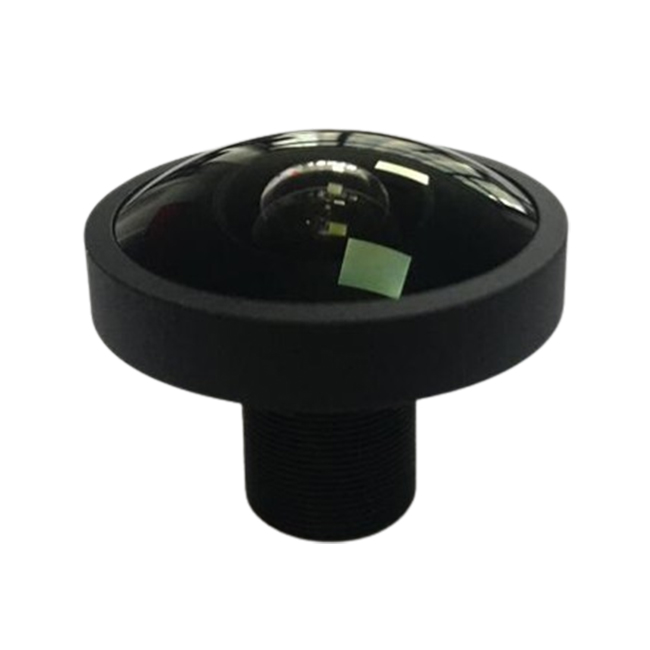

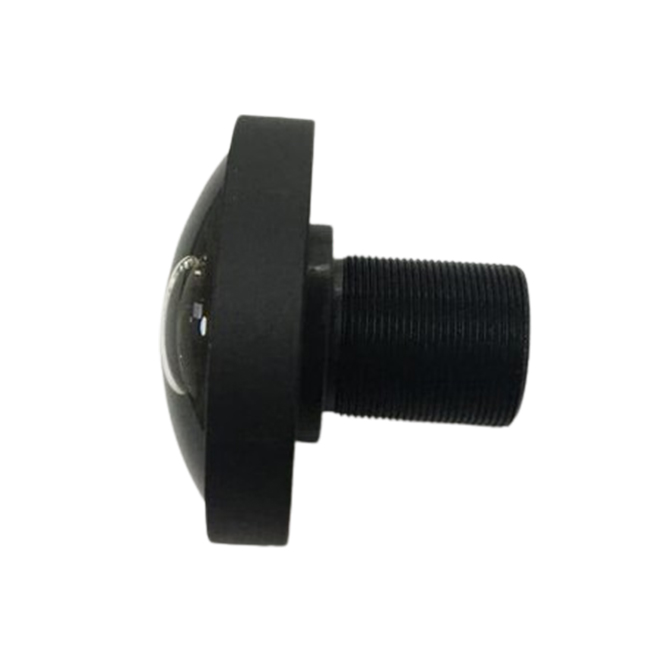

5MP 2.0mm focal length F2.0 Aperture 1/2.5" 190 degree FOV wide angle view M12 Mount cctv fisheye lens
- Online customer service
- Factory guarantee
- Ontime delivery
|
Model: |
JY-M12-2.0FY-5MP-1/2.5 |
|||
|
Parameter of Lens |
||||
|
Pixel |
5MP |
|||
|
Image Circle |
Φ6.8mm@190° |
|||
|
Focal Length |
2.0mm |
|||
|
Aperture |
F2.0 |
|||
|
Mount |
M12×0.5 |
|||
|
Field Angle |
° |
1/2.5" |
1/2.7" |
1/3" |
|
D |
190 |
184.4 |
169.1 |
|
|
H |
163.6 |
149.2 |
135.2 |
|
|
V |
121 |
113.8 |
101.4 |
|
|
Optical Distortion |
-97.30% |
|||
|
M.O.D. |
0.15m |
|||
|
Dimension |
Φ30.5×25.5mm |
|||
|
Weight |
24g |
|||
|
Flange Back Focal Length |
/ |
|||
|
Back Focal Length |
5.66mm |
|||
|
MBF |
5.5mm |
|||
|
IR Correction |
Yes |
|||
|
Operation |
Iris |
FIX |
||
|
Focus |
/ |
|||
|
Zoom |
/ |
|||
|
Operating temperature |
-20°C~+60°C |
|||
|
Size |
||||
|
|
||||
|
Size tolerance(mm): |
0-10±0.05 |
10-30±0.10 |
30-120±0.20 |
|
|
Angle tolerance |
±2° |
|||
