JY-M12-1.8FY-3MP-1/3

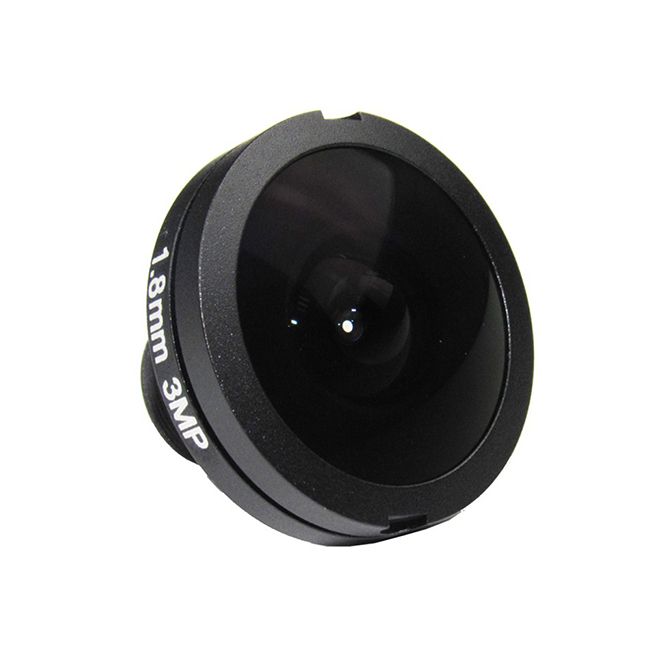

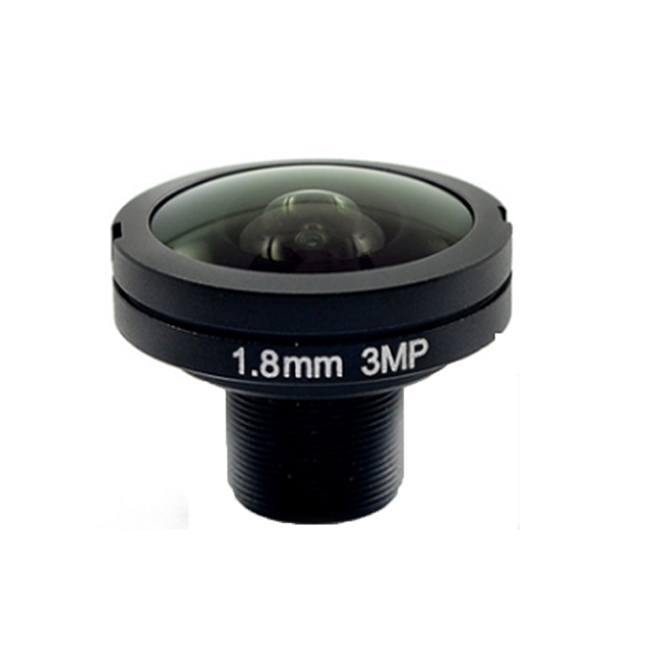

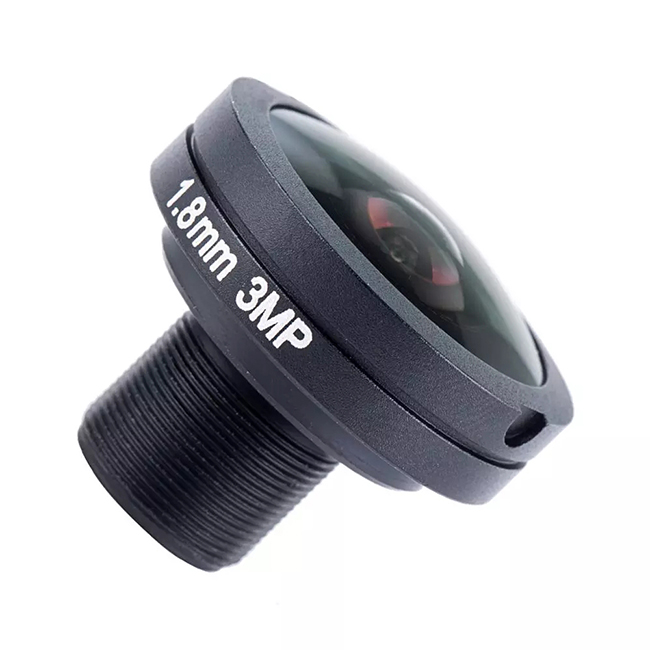

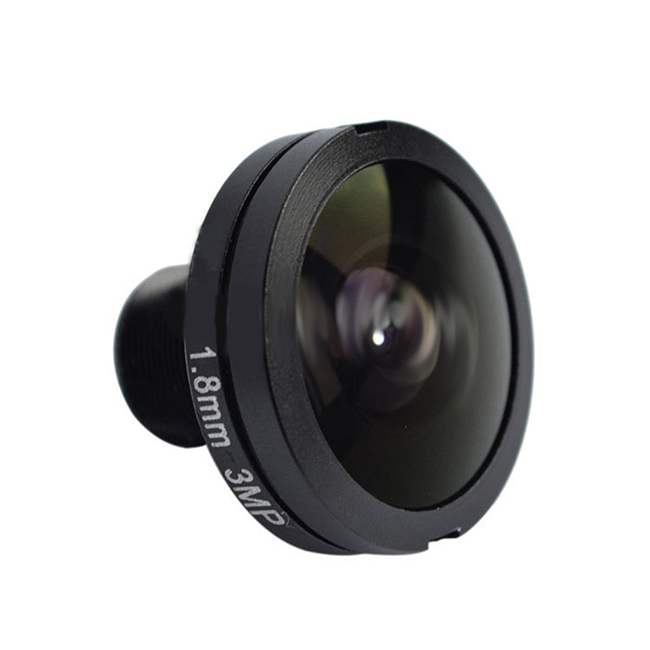

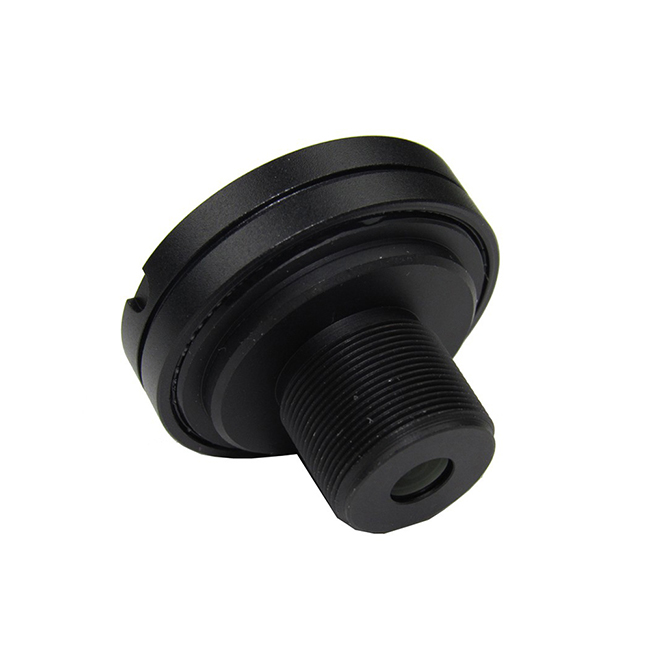

1/3 " 1.8mm F2.0 M12*0.5 Mount 185 degree FOV 3MP fisheye lens with IR correction
- Online customer service
- Factory guarantee
- Ontime delivery
| Pixel | 3MP | |
| Image Format | Φ5.3mm | |
| Focal Length | 1.8mm | |
| Aperture | F2.8 | |
| Mount | M12×0.5 | |
| Field Angle | 1/3.6" | 185°×148°×111° |
| D×H×V(°) | 1/2.7" | 185°×185°×148° |
| 1/1.8" | 185°×185°×185° | |
| M.O.D. | 0.3m | |

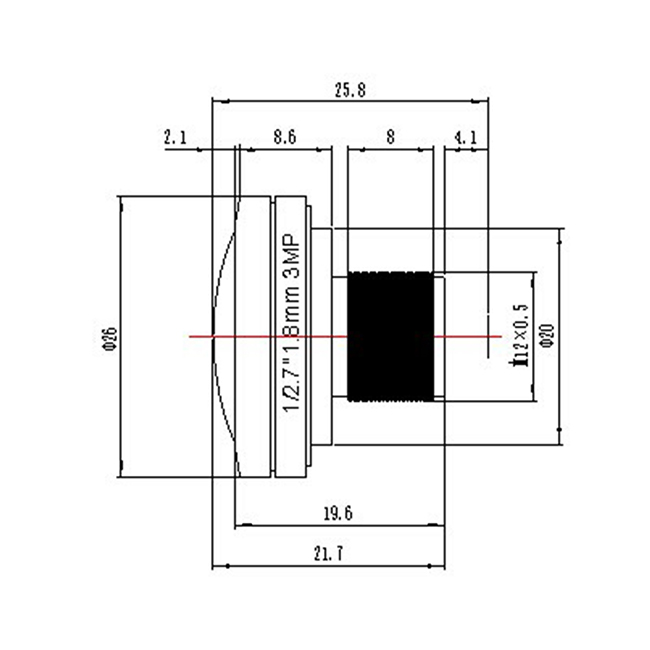

| Dimension | Φ26×21.7mm | |
| Weight | 13g | |
| Back Focal Length | 4.1mm | |
| Operation | Iris | FIX |
| Focus | / | |
| Zoom | / |
