View large

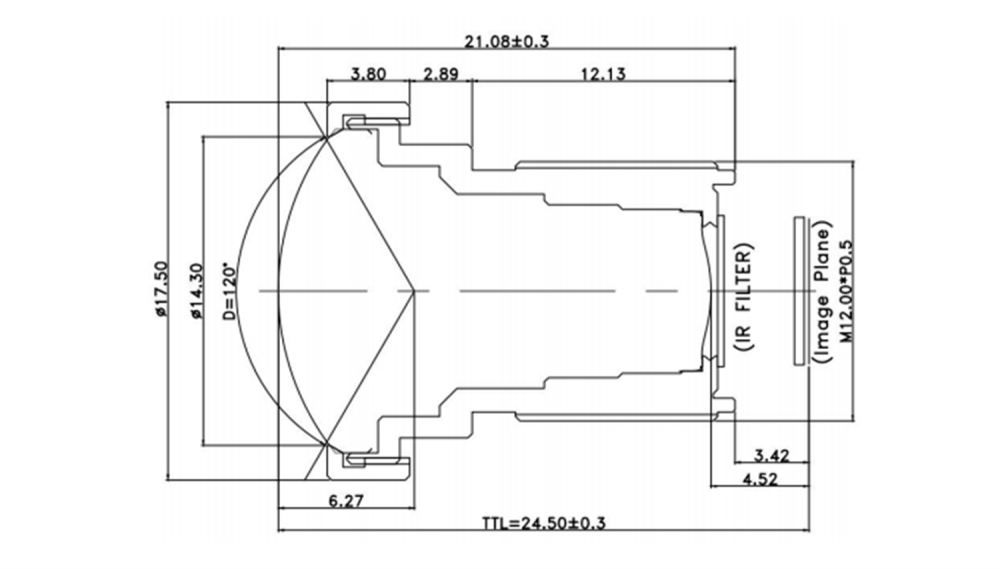

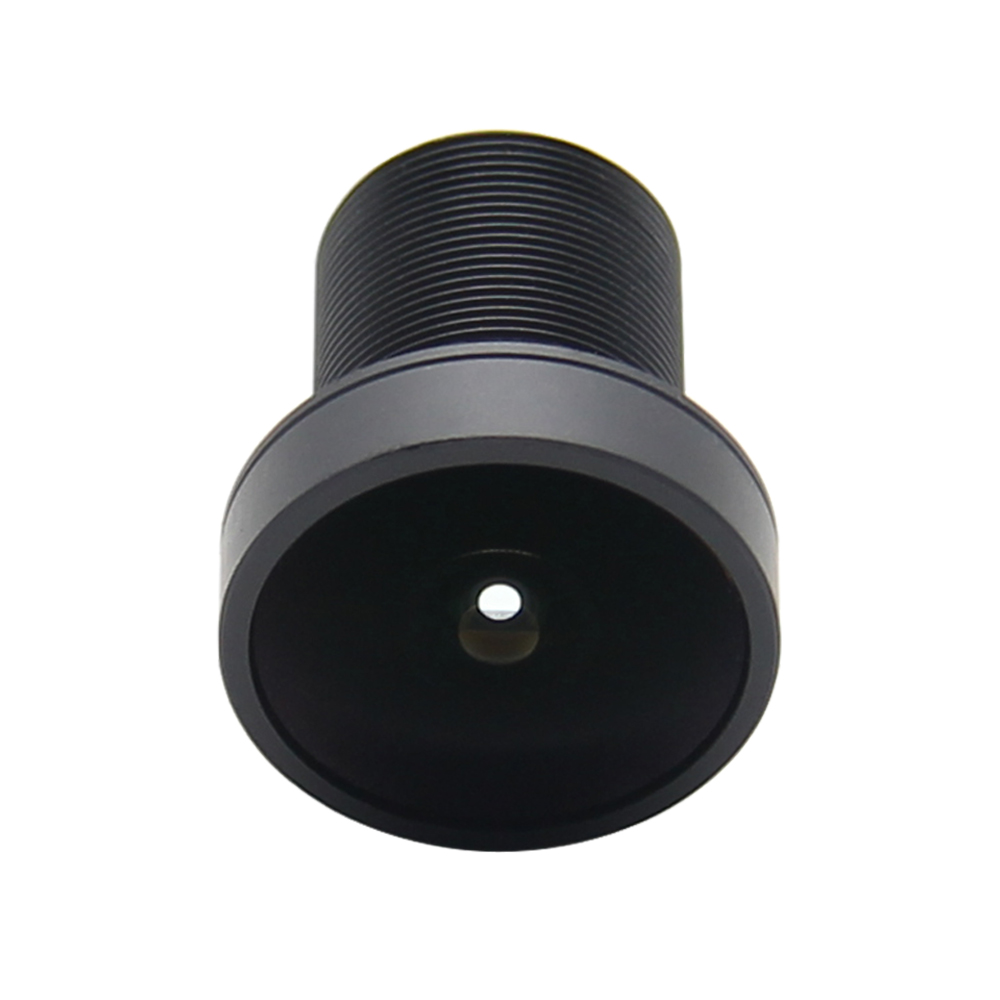

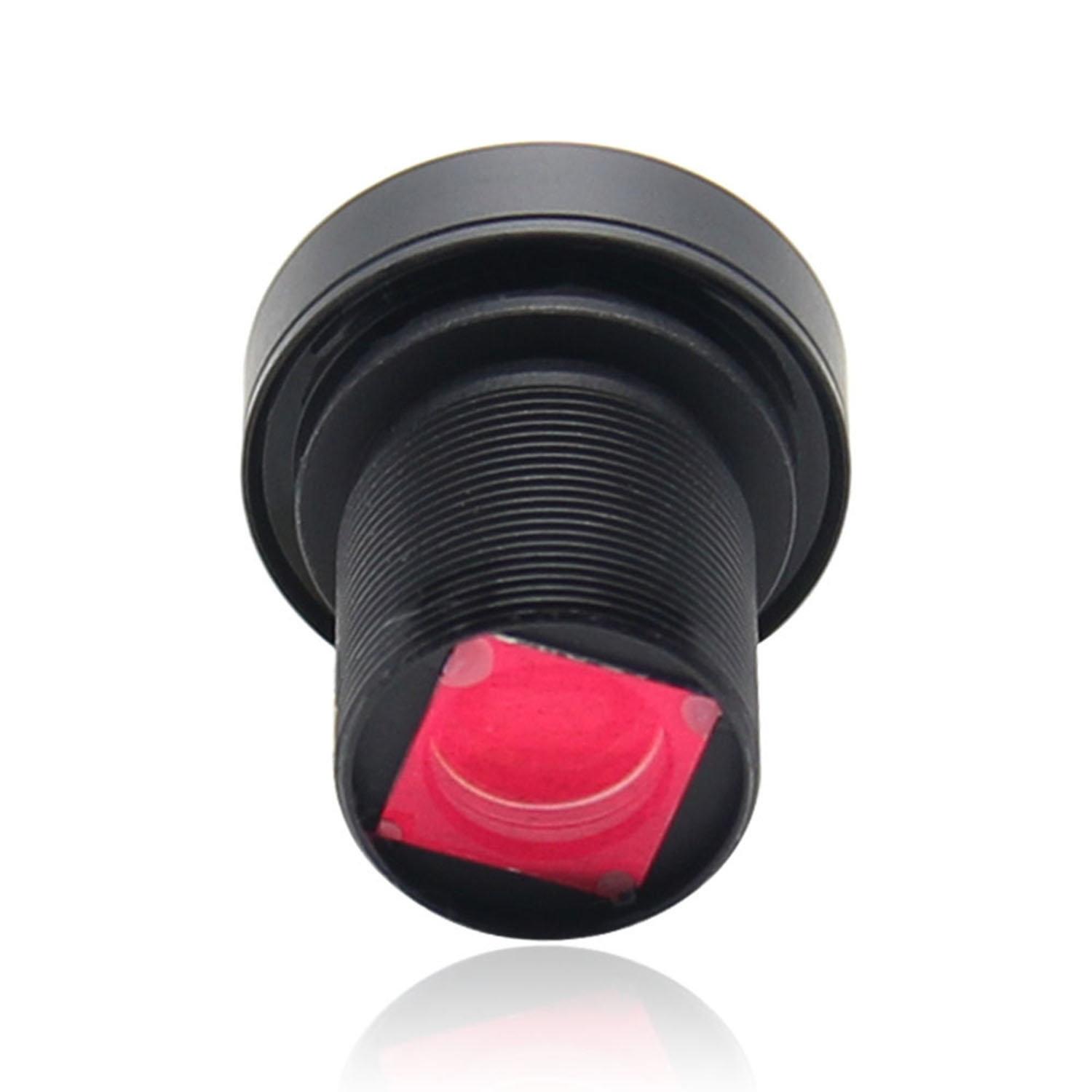

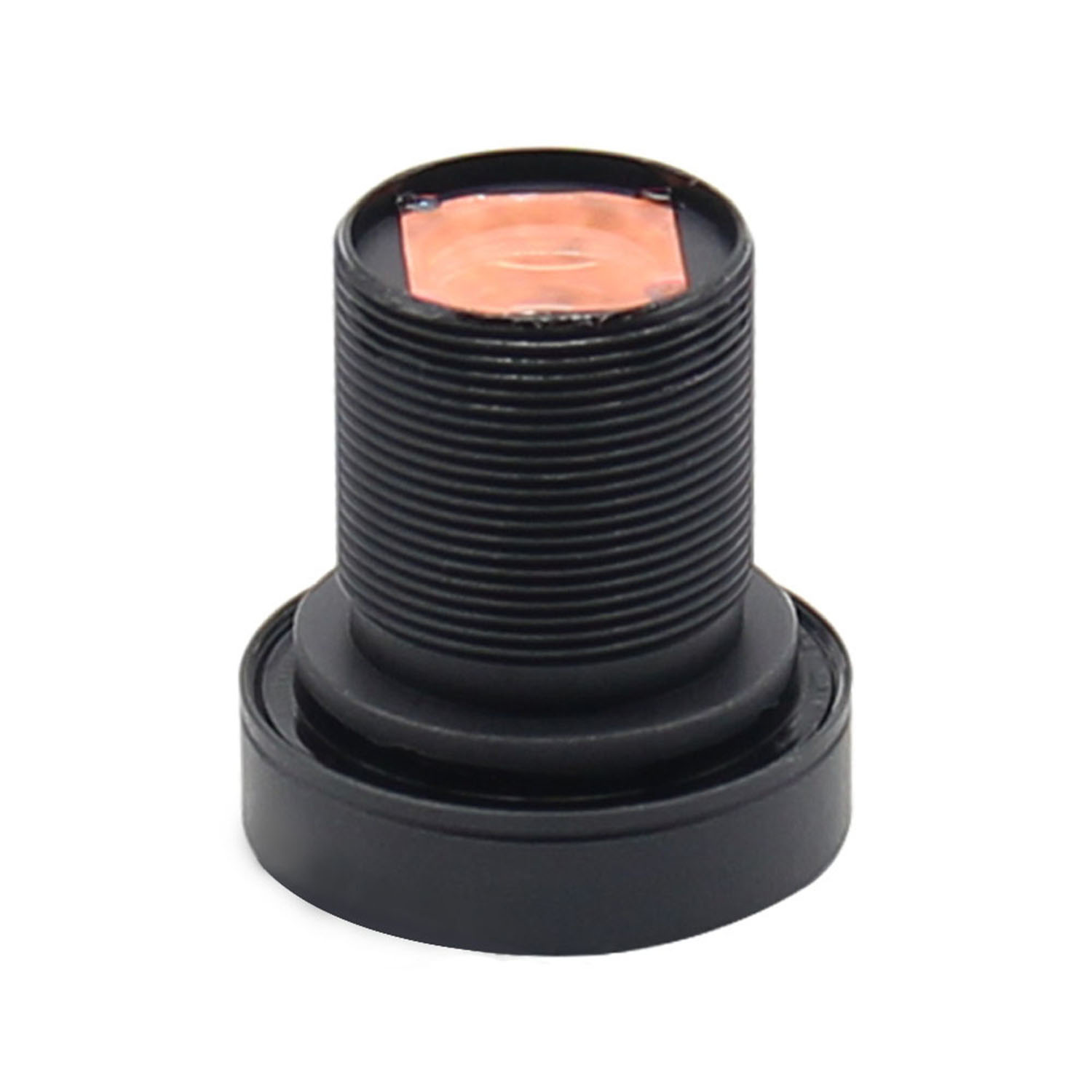

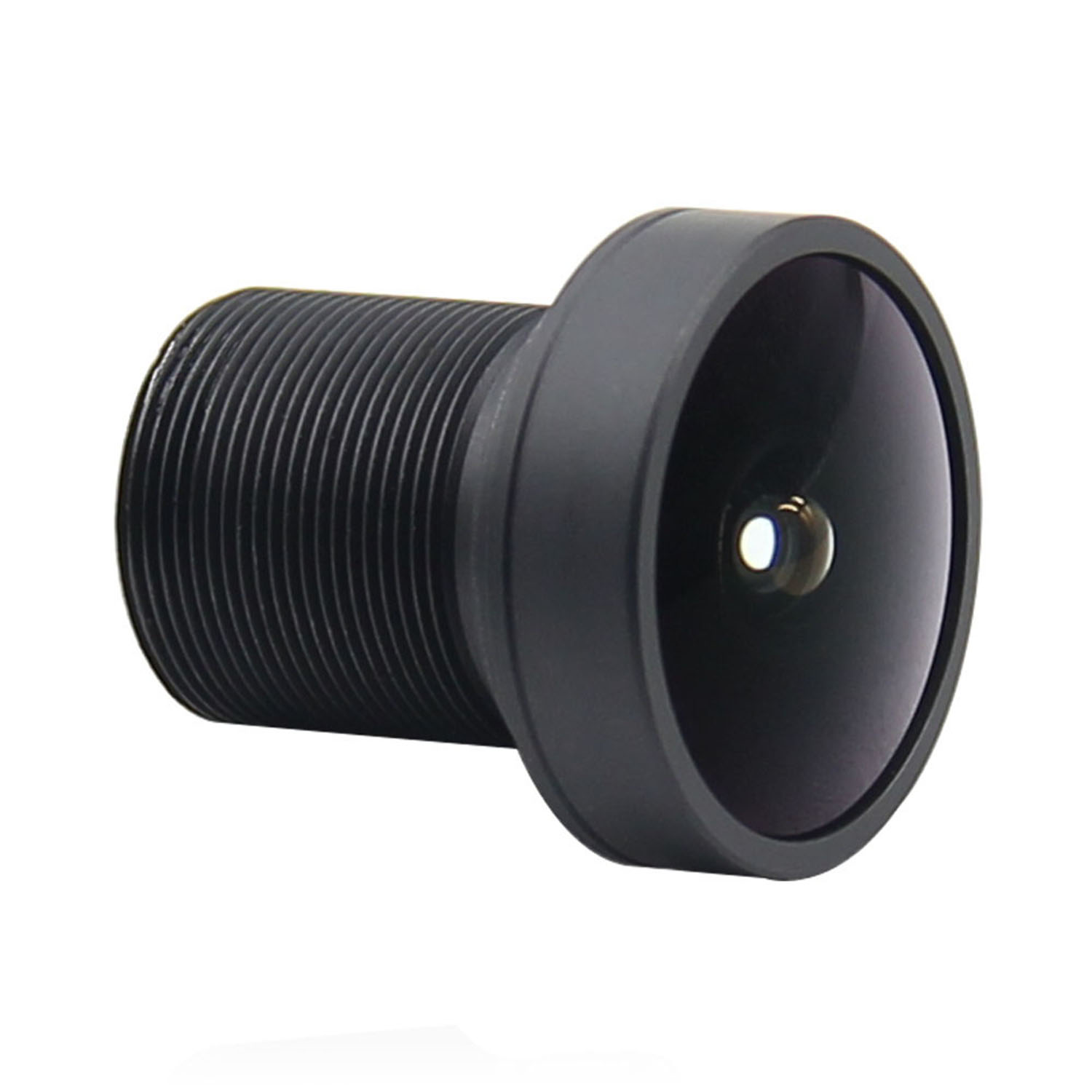

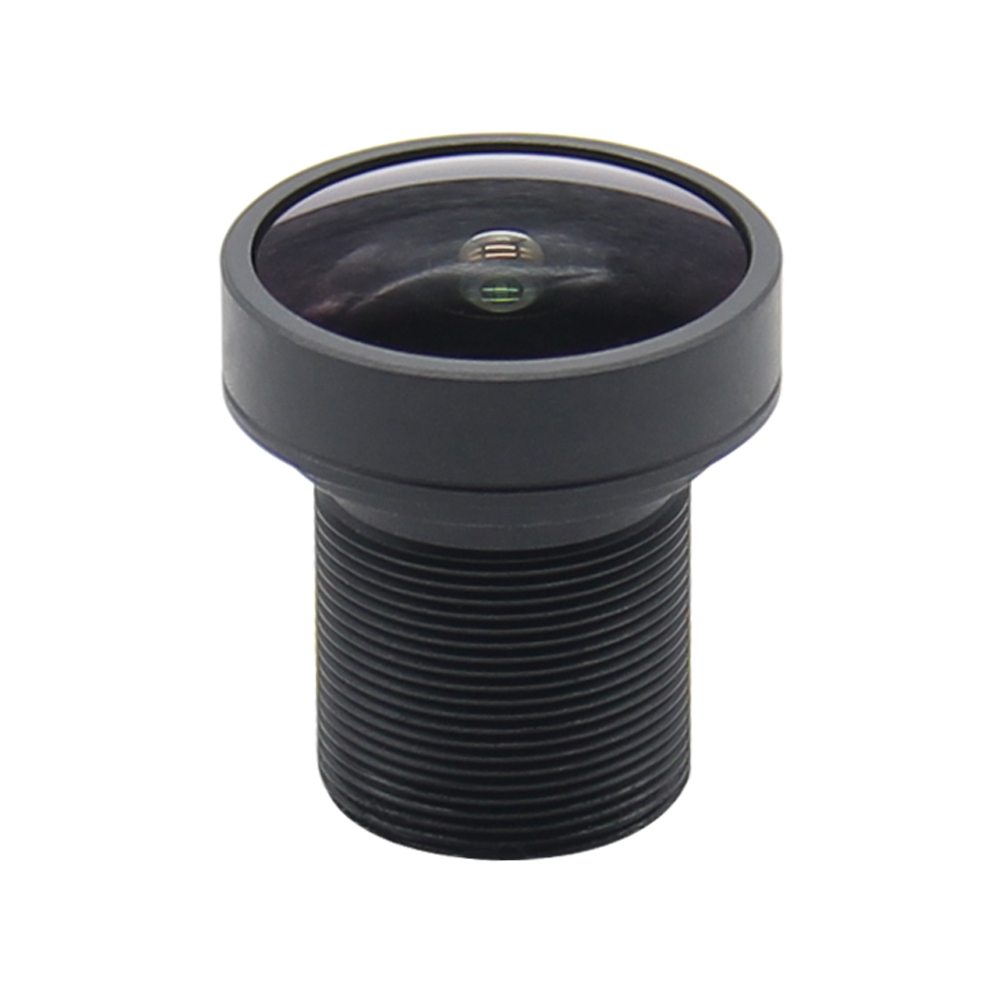

JY-M12-2.1LD-8MP-1/2.7
Low distortion 2.1mm focal length F2.2 Aperture 1/2.7 " image sensor 118°FOV 8MP M12 S Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 8 Megapixel | |||||||||
| Image circle | 1/2.7" | |||||||||
| Focal length | 2.1mm | |||||||||
| F No. | F2.2 | |||||||||
| FOV （D*H*V) | 1/2.7" 118°*108°* 72° | |||||||||
| Mount | M12*P0.5 | |||||||||
| optical Backfocal Length | 4.52mm | |||||||||
| mechanical BackFocal Length | 3.42mm | |||||||||
| TTL | 21.08mm | |||||||||
| Optical Distortion | <-4.5% | |||||||||
| Relative illumination | >48% | |||||||||
| Lens structure | 6E+IR650 | |||||||||
| CRA | <14° | |||||||||
|
Operation |
Iris | Fix | ||||||||
| Focus | Fix | |||||||||
| Zoom | / | |||||||||
| HSF&Safety | ROHS | |||||||||
