JY-M12-6LD-8MP-1/1.8

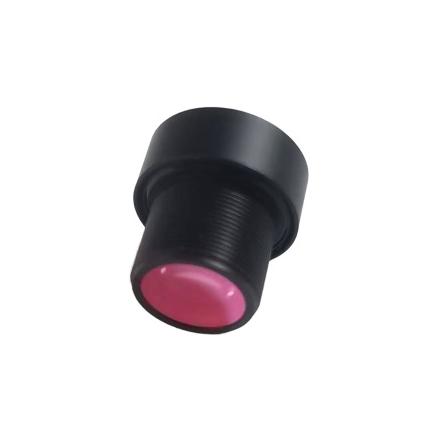

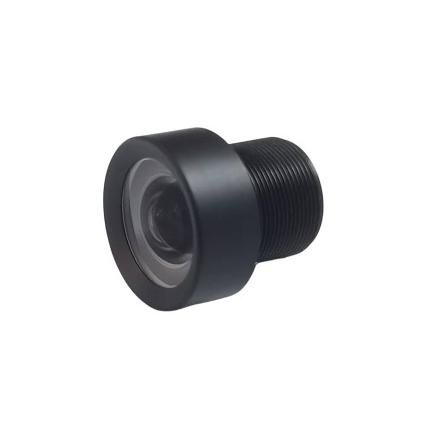

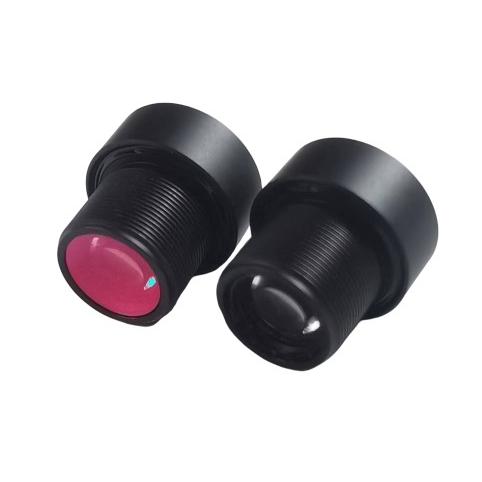

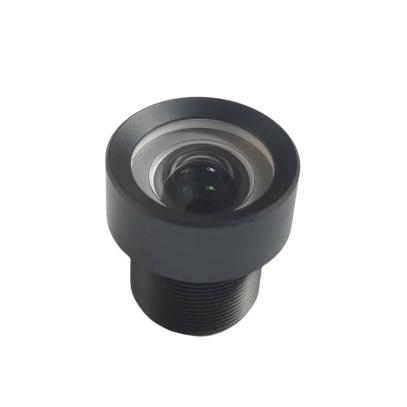

Low distortion 6mm focal length F2.8 Aperture 1/1.8" image sensor 40°FOV 8MP M12 S Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 8MP |
| Focal-Length | 6mm |
| Image circle | 1/1.8 |
| F No. | F2.8 |
| M.O.D | 2m |
| FOV | 1/1.8" 40°*60°*78° |
| Mount | M12*P0.5 |
| optical Backfocal Length | 7.56mm |
| mechanical BackFocal Length | 6.96mm |
| TTL | 23.11mm |
| Optical Distortion | |
| Relative illumination | >74.8% |
| CRA | |
| Lens structure | 5E+IR650 |
| Operation | FOCUS Fix |
| Iris Fix | |
| HSF&Safety | ROHS |
