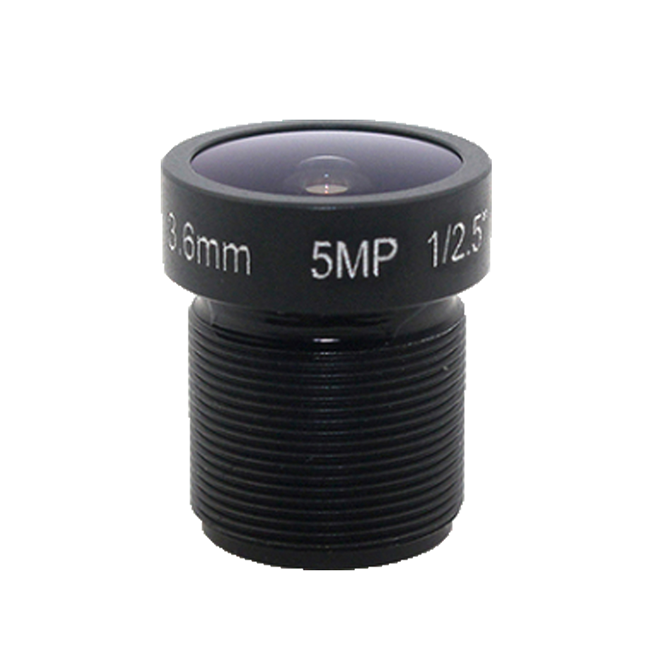

JY-M12-3.6BD-5MP
5MP resolution 1/2.5 inch image sensor F2.0 F NO. Aperture 3.6 mm focal length M12 Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Model | JY-M12-3.6BD-5MP |
| Focal Length (mm) | 3.6mm |
| Resolution (Pixels) | 5MP |
| Image Size | 1/2.5" |
| Aperture D/f" | F2.0 |
| Field of View | 90° |
| Mount Type | M12*0.5 |
| Dimension (mm) | Φ14*16.3 |
| Operating Temperature | -20℃~+80℃ |
| Back Focal-Length (mm) | 7.22 |
| Weight (g) | 6.8g |
| Operation | Fixed, Fixed IRIS |
