View large

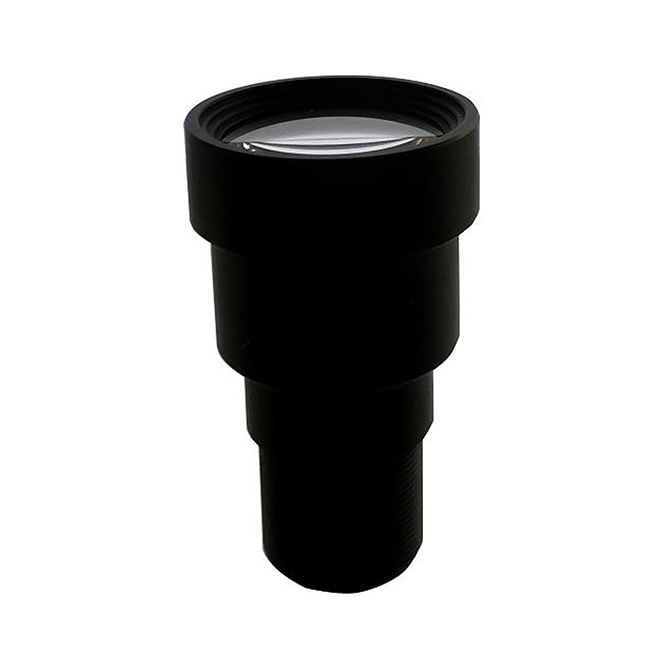

JY-M12-BD35-8MP-1/2
8MP resolution 1/2 inch image sensor F2.4 F NO. Aperture 35mm focal length M12 Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Model | JY-M12-BD35-8MP-1/2 | |
| Resolution | 8 Megapixel | |
| Image format | 1/2" | |
| Focal length | 35±5% | |
| Aperture | F2.4±10% | |
| Mount | M12 | |
|
（Field Angle) D×H×V(°) ±5% |
1/2" | |
| D | 12.6° | |
| H | 10.1° | |
| V | 7.6° | |
| Optical Distortion | 0.71% @Ф9.2mm | |
| CRA | ≤13.2°@Ф9.2mm | |
| M.O.D. | 1m | |
| Dimension | Φ20×33.7mm | |
| BFL | 7.569mm(in air) | |
| MBF | 5.023mm(in air) | |
| Iris | Fixed | |
| Focus | Manual | |
| Operating temperature | -30℃～+70℃ | |
