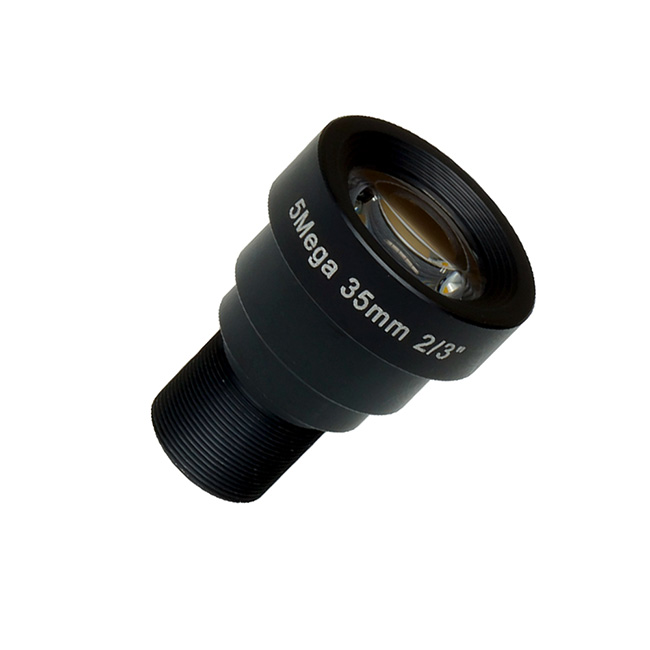

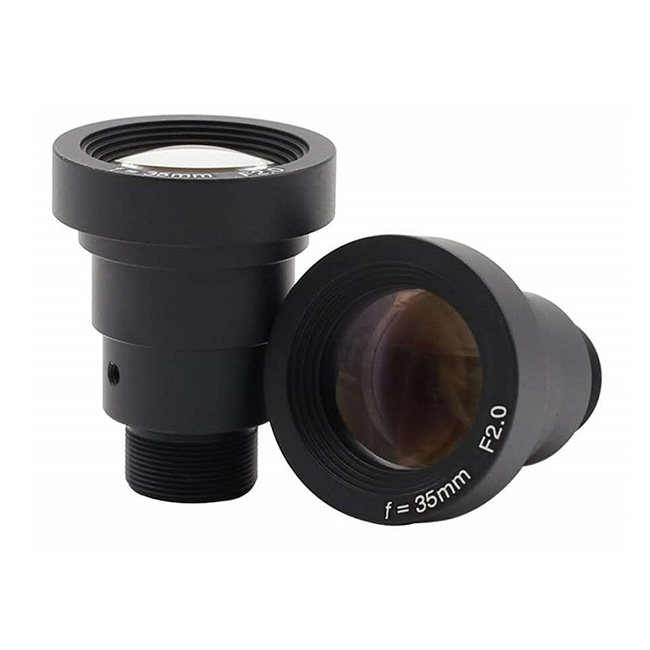

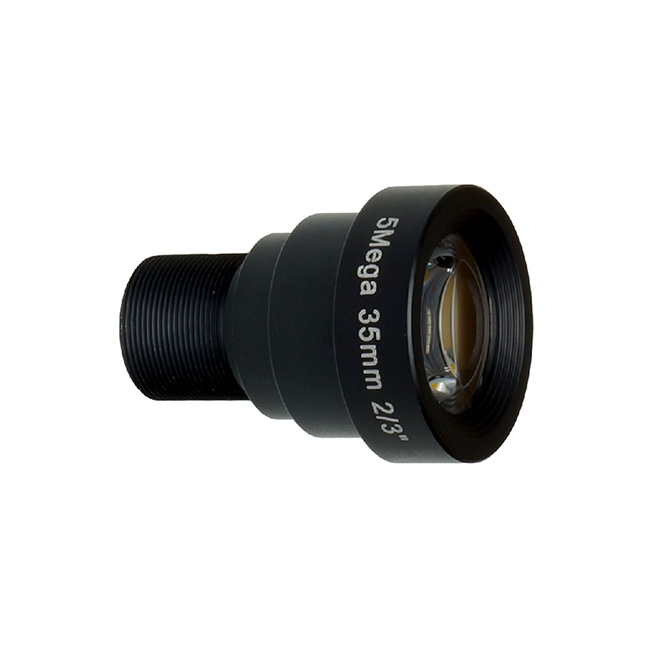

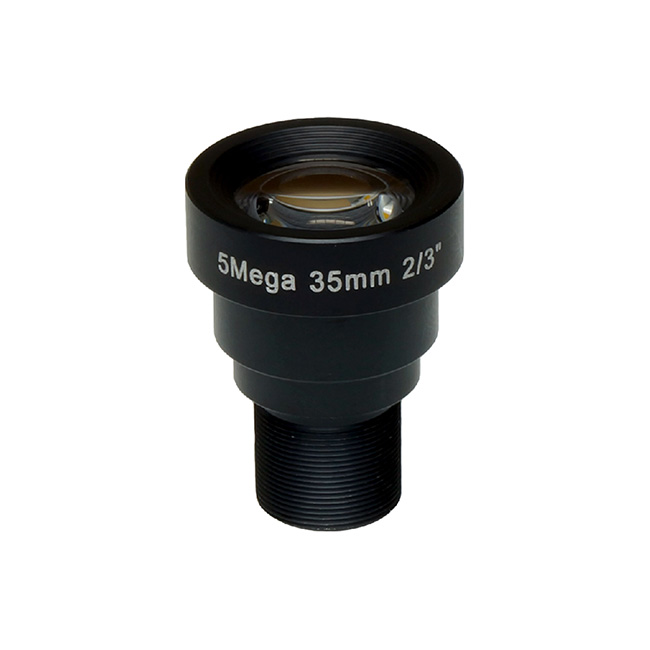

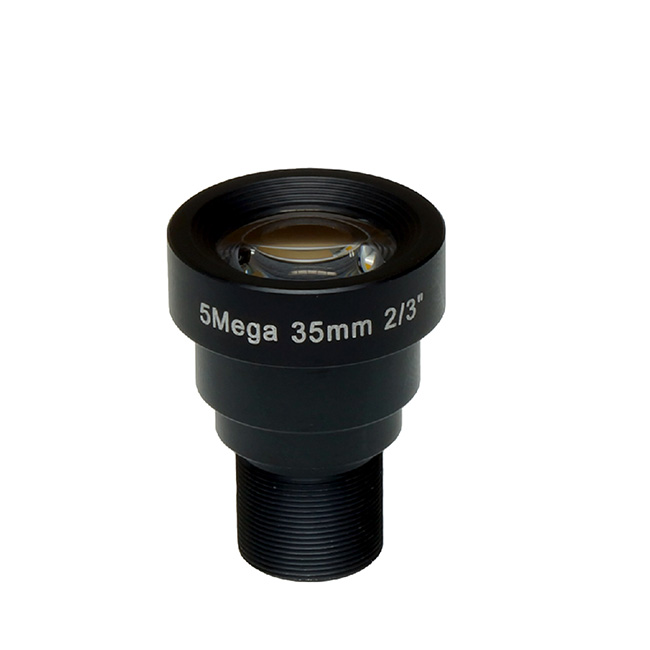

JY-M12-BD35-5MP-2/3
5MP resolution 2/3 inch image sensor F1.8 F NO. Aperture 35mm focal length M12 Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery

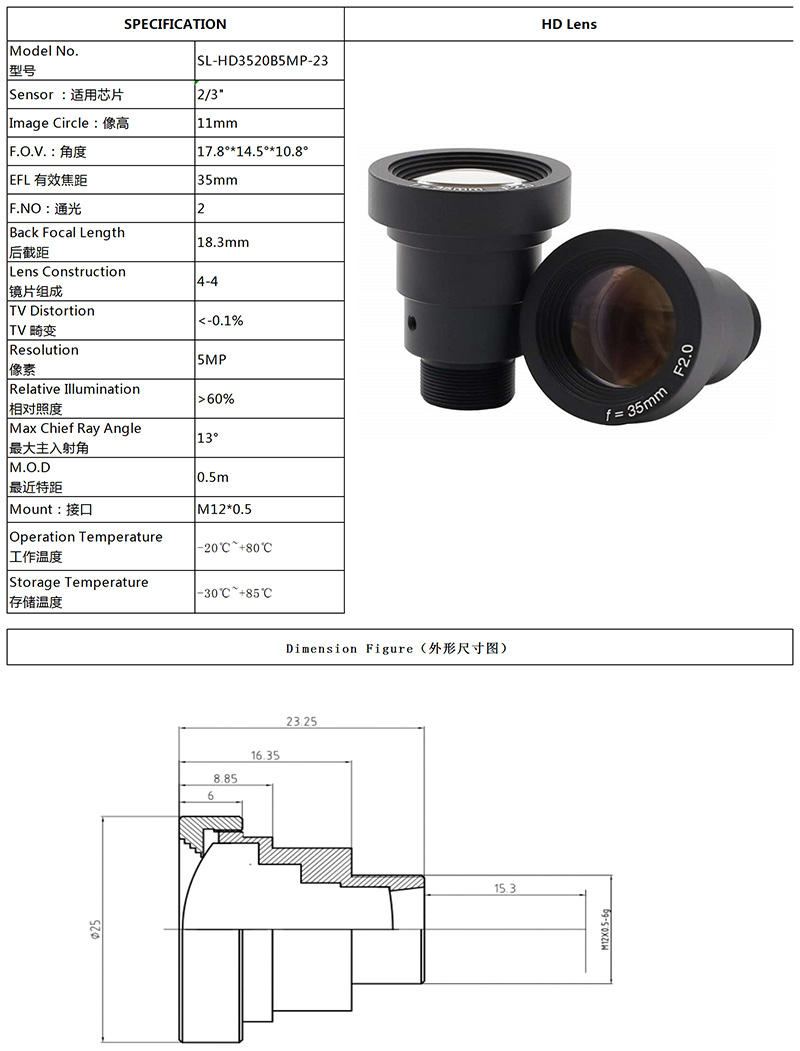

| Model | JY-M12-BD35-5MP-2/3 |
| Image format | 2/3" |
| Focal length | 35mm |
| Aperture | F1.8 |
| Resolution | 5 MegaPixel |
| Mount | M12*0.5 |
|
（Field Angle)H/V |
2/3" 14.3°×10.8° |
| 1/1.8" 11.7°×8.8° | |
| 1/2" 10.4°×7.8° | |
| M.O.D. | 0.35m |
| BFL | 5.5mm |

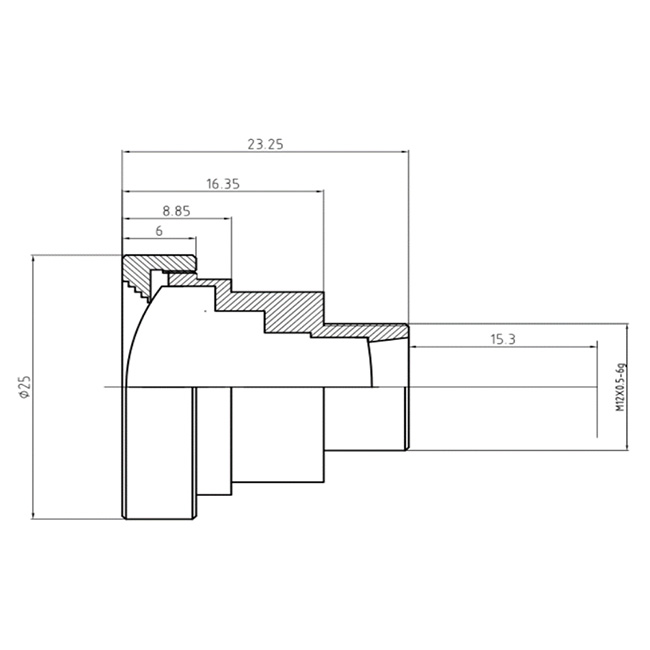

| Dimension | φ22.0×29.30mm |
| Operation | Fixed |
| Net Weight(g) | 16g |
