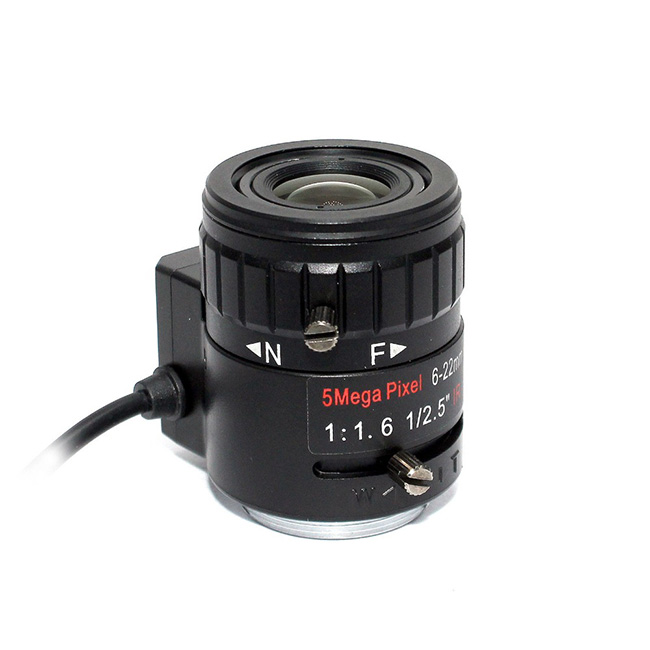

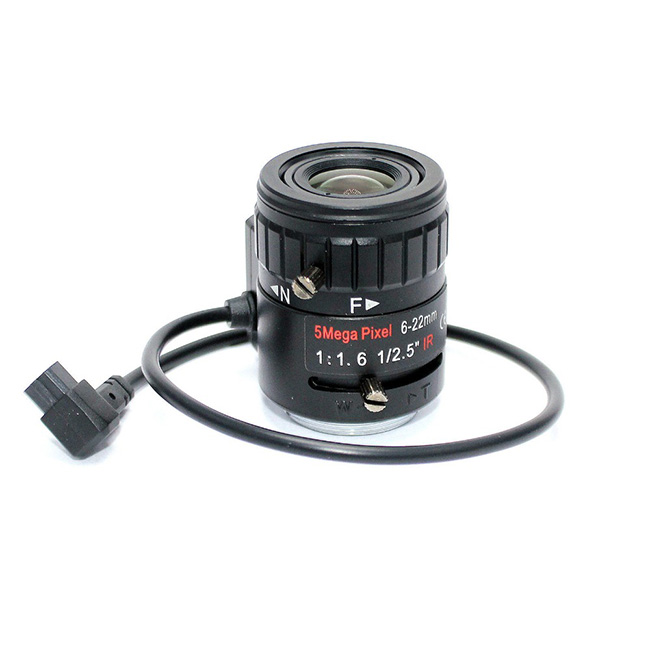

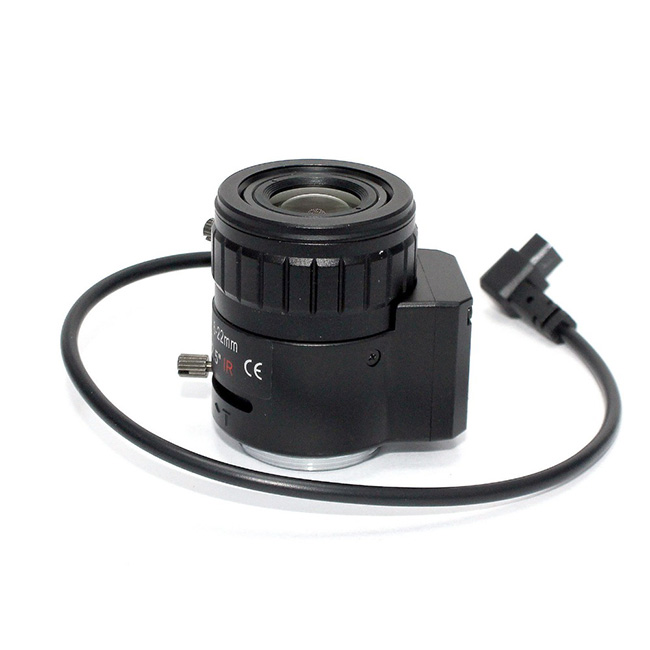

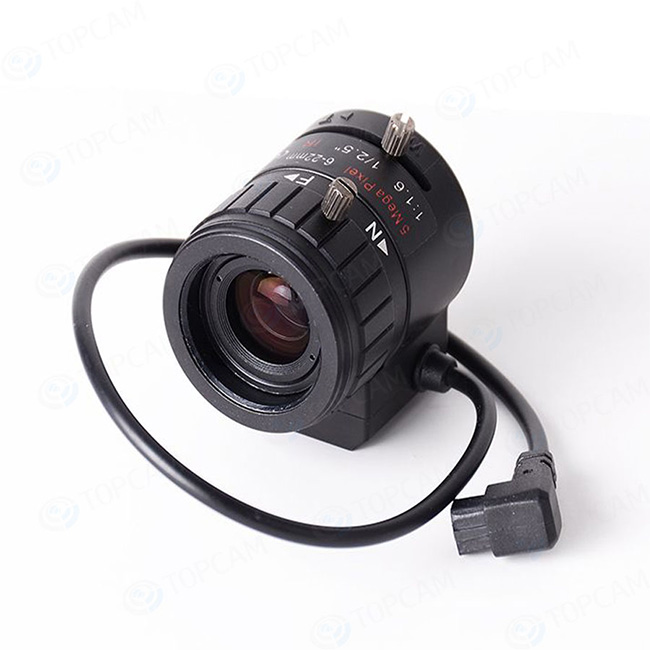

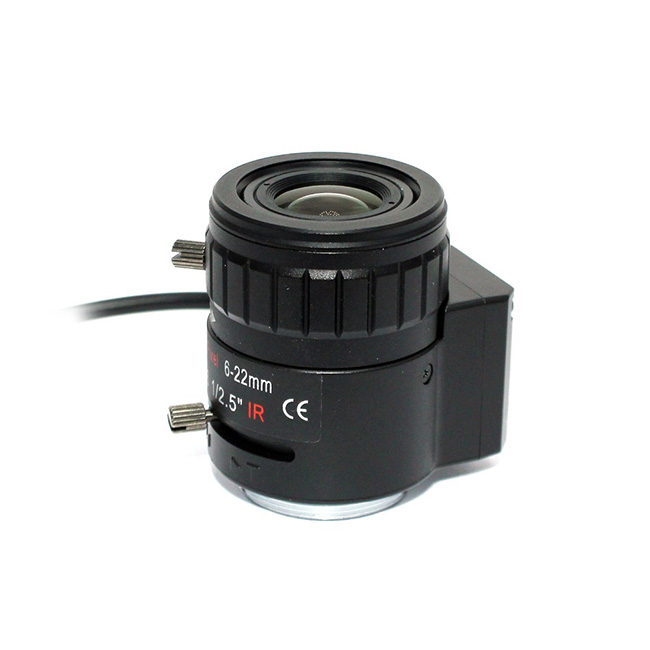

JY-0622CSA-5MP-1/2.5F1.6
6-22mm manual focus F1.6 Aperture 1/2.5 " Auto DC Iris 5MP CS Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Pixel | 5.0Megapixel | |
| Image Format | 1/2.5″ | |
| Focal Length | 6-22mm | |
| Aperture | F1.6 | |
| Mount | CS | |
| Field Angle | 1/2.5" | 58°×46.4°×34.8°~20.4°×16.3°×12.2° |
| D×H×V(°) | ||
| M.O.D | 0.3m | |
| Dimension | Φ33×44.1mm | |
| Weight | 141g | |
| Flang BFL | 12.5mm | |
| BFL | 6.4mm | |
| MBF | 6.1~8mm | |
| Optical Distoration | -6.1%~8% | |
| Operation | Iris | DC |
| Focus | Manual | |
| Zoom | Manual | |
| Operating temperature | -20C+60C | |
| Size tolerance(mm) | 0-10±0.5 | |
| Angle tolerance | ±2° | |
