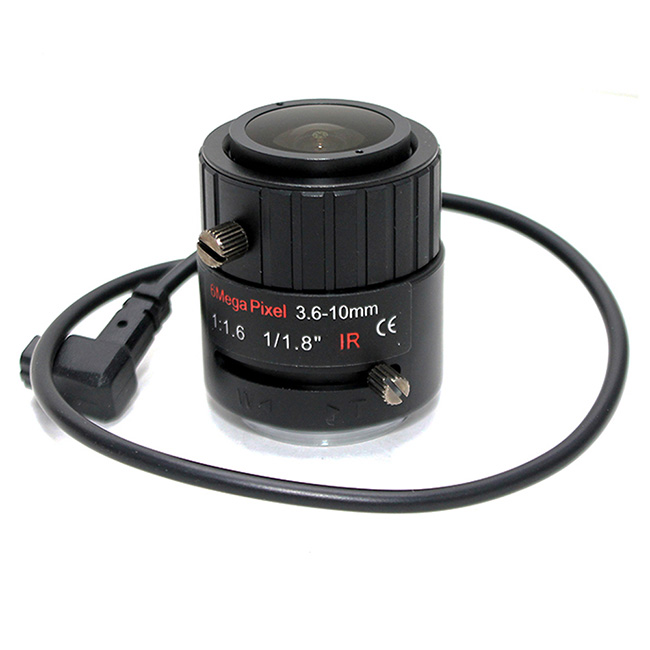

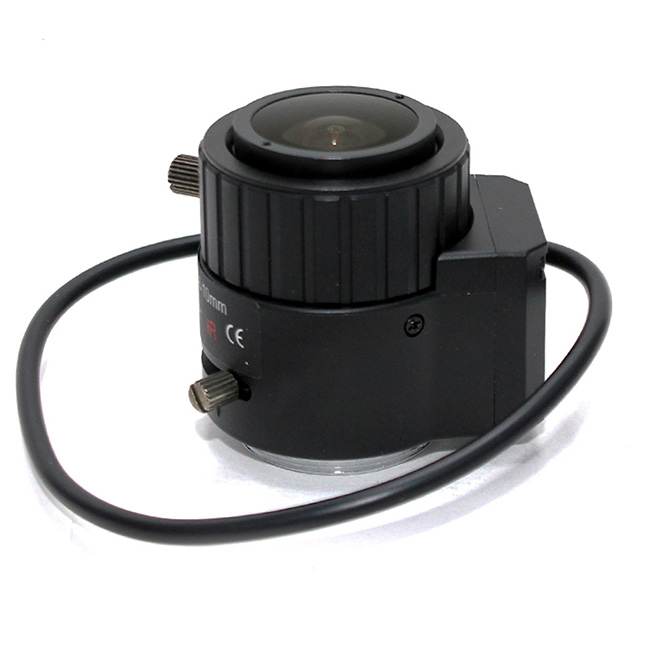

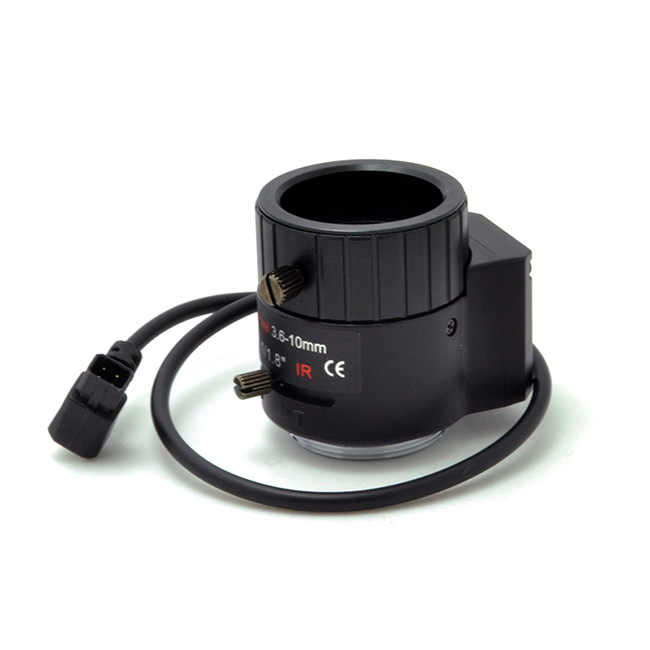

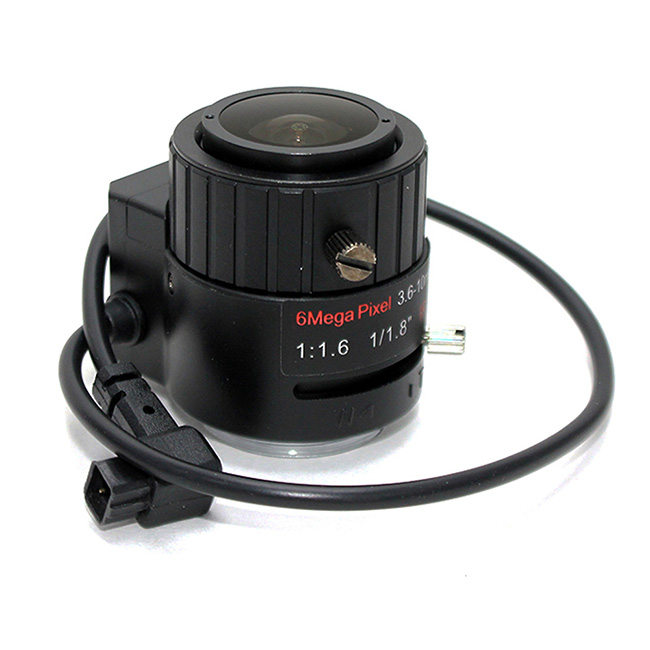

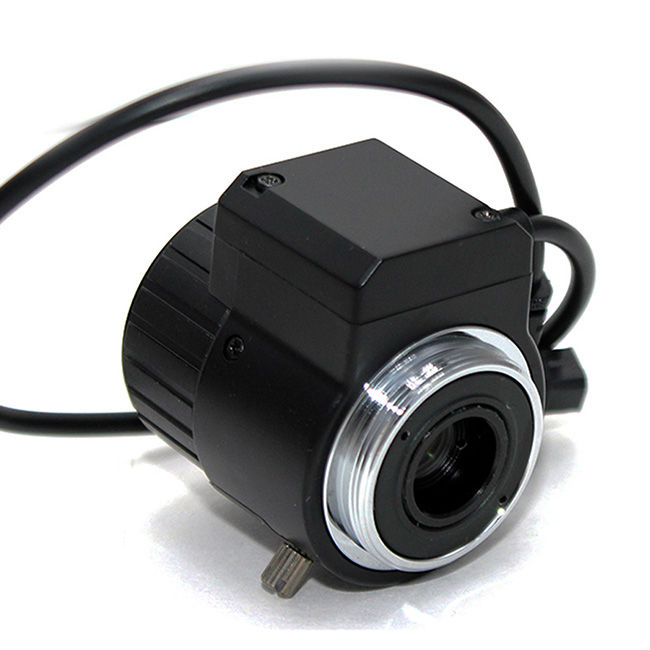

JY-3610CSA-6MP-1/1.8F1.8
3.6-10mm manual focus F1.8 Aperture 1/1.8 " Auto DC Iris 6MP CS Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Pixel | 6 Megapixel | ||||||
| Image format | 1/1.8* | ||||||
| Focal length | 3. 6~10mm | ||||||
| Aperture | F1.8 | ||||||
| Mount | cs | ||||||
|
(Field Angle) D*H*V（°） |
1/1.8 | 1/2.5 | 1/3 | ||||
| short lens | telephoto | short lens | telephoto | short lens | telephoto | ||
| D | 156 | 51 | 117 | 41.9 | 93.2 | 35 | |
| H | 117 | 41.9 | 89.6 | 33.9 | 72.6 | 28 | |
| V | 81 | 31 | 64.8 | 25 | 53.8 | 20.9 | |
| Optical Distortion | -77.01%~-6.51% (max) | ||||||
| M.O. D. | 0. 3mm | ||||||
| Dimension | 32.6*39. 2~43. 1mm | ||||||
| Weight | 55±2g | ||||||
| Flange BFL | 12. 53mm | ||||||
| BFL | 7. 51mm | ||||||
| MBF | 8. 35mm | ||||||
| IR Correction | Yes | ||||||
| Operation | Iris | DC | |||||
| Focus | Manual | ||||||
| Zoom | Manual | ||||||
| Operating temperature | -20°C ~+60°C | ||||||
