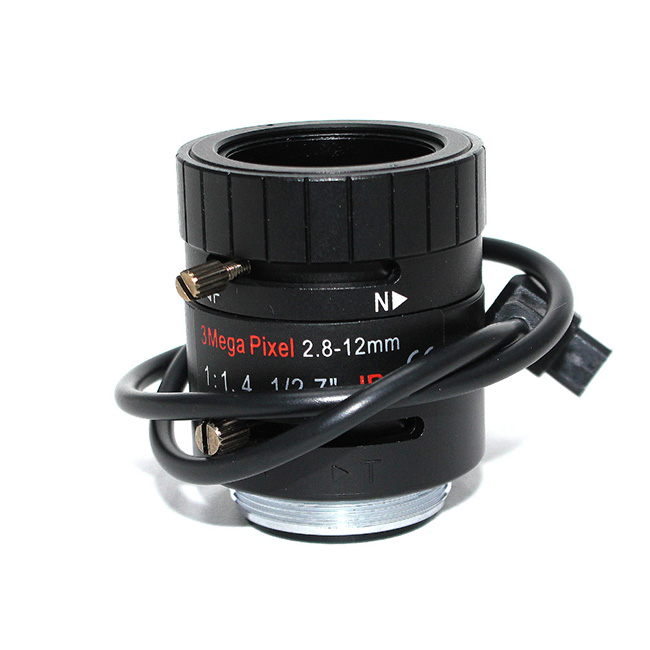

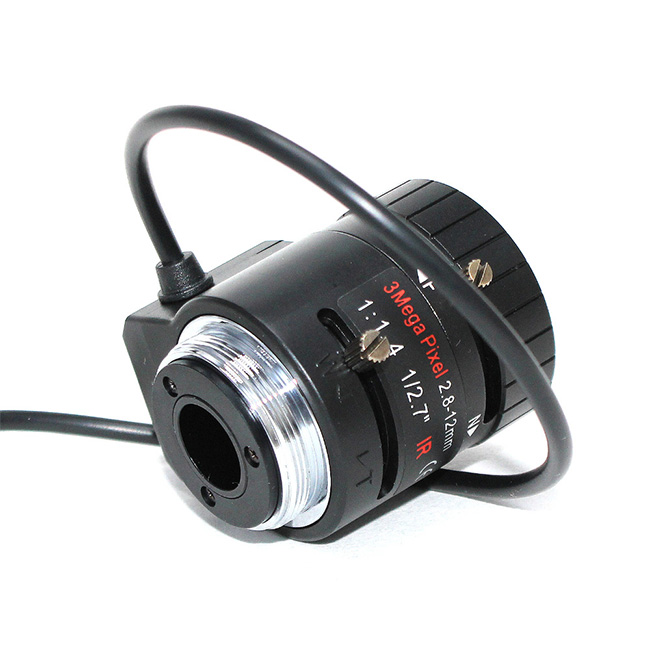

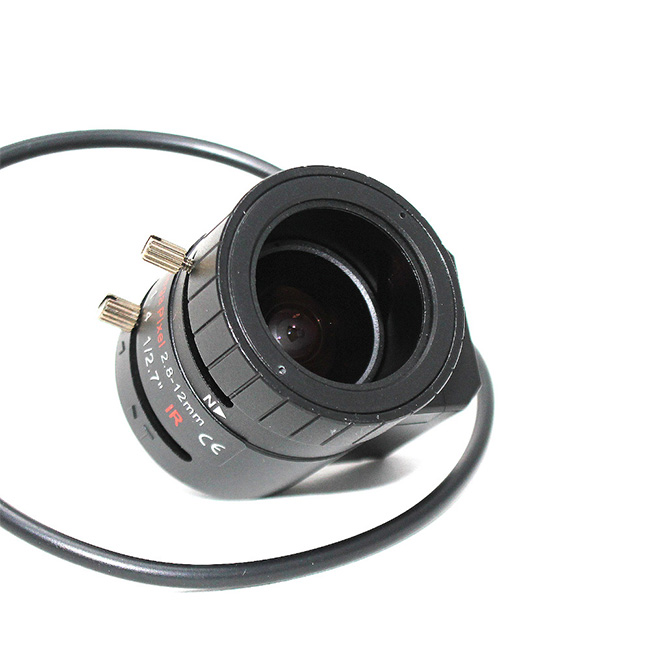

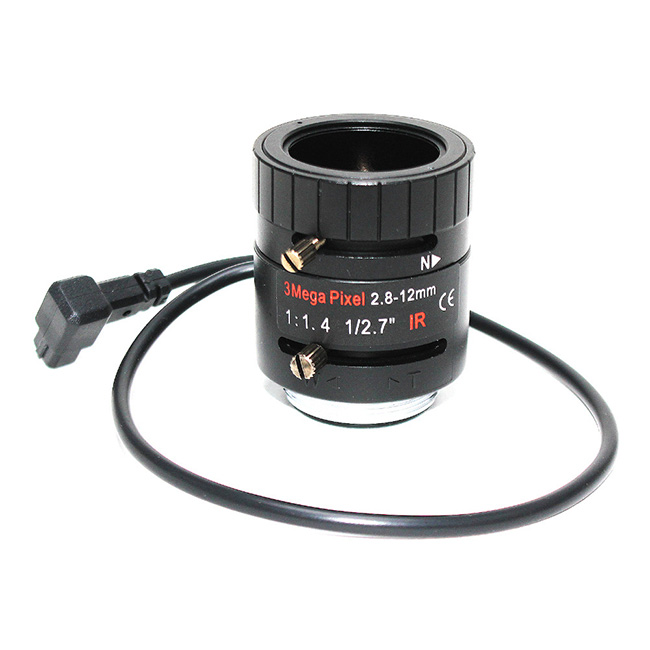

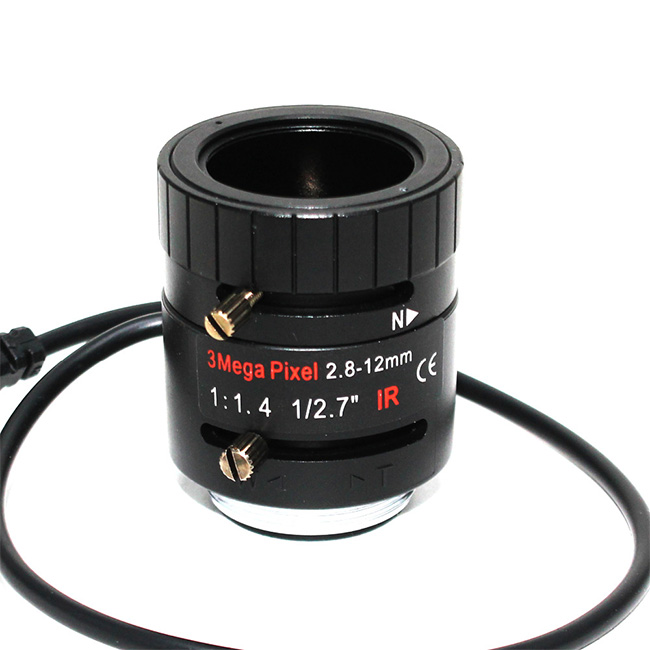

JY-2812CSA-3MP-1/2.7F1.4
2.8-12mm manual focus F1.4 Aperture 1/2.7 " Auto DC Iris 3MP CS Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Parameter of lens | ||
| Pixel | 3MP | |
| Image format | 1/2.7" | |
| Focal length | 2.8-12mm | |
| Aperture | F1.4 | |
| Mount | CS | |
| Field angle DxHxV(°) | 1/3" | 122°x97.60x73.20'360x28.80*21.6° |
| M.O.D. | 0.3m | |
| Dimension | ①33x43.2mm | |
| Weight | 60g | |
| Back focal length | 6.5~8.1mm | |
| Operation | Iris | DC |
| Focus | Manual | |
| Zoom | Manual | |
| Operating temperature | -20°C ~ +60°C | |
