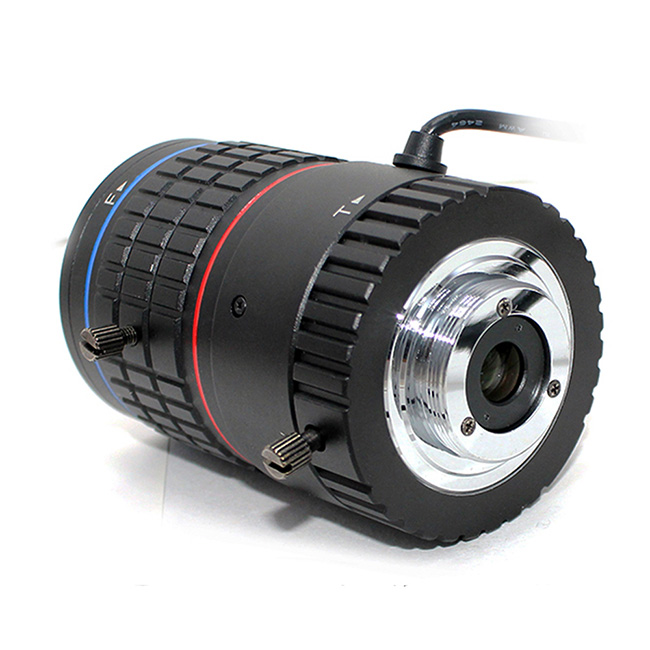

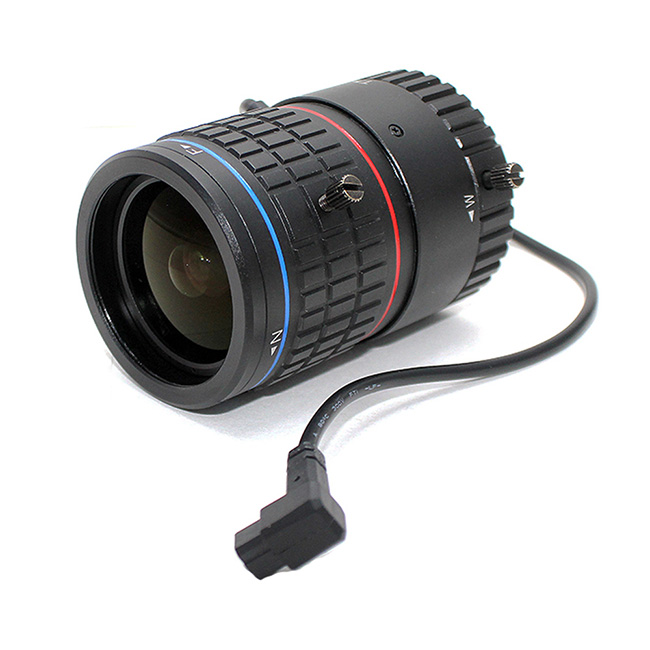

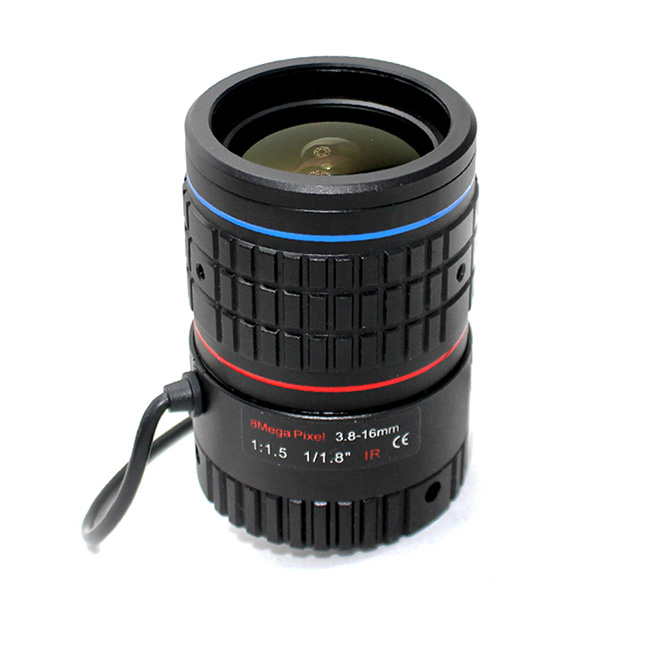

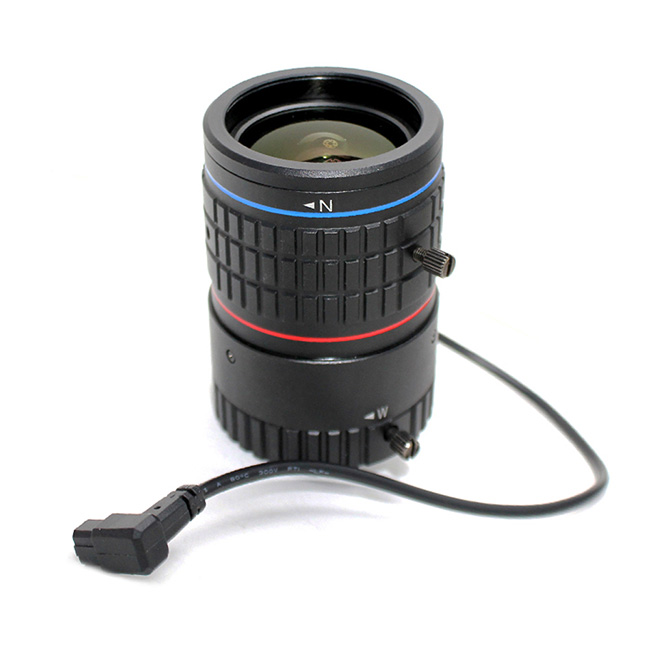

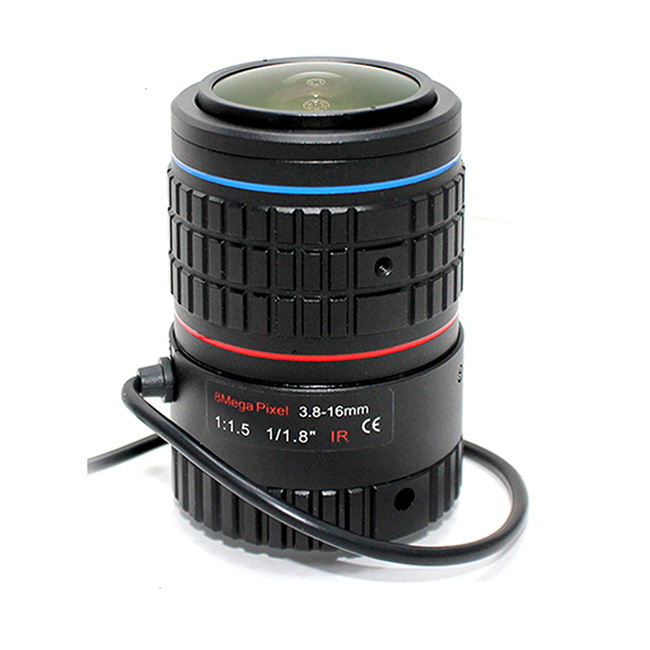

JY-3816CSA-8MP-1/1.8F1.5
3.8-16mm manual focus F1.5 Aperture 1/1.8 " Auto DC Iris 8MP CS Mount cctv lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Pixel | 8 MegaPixel |
| Image format | 1/1.8” |
| Focal length | 3. 8〜16mm |
| Aperture | Fl. 5 |
| Mount | CS |
| Optical Distortion | -48~2% (1/1.8*) |
| M.O.D. | 1. 5m |
| Dimension | 49. 5X 83. 6mm |
| Weight | 200g |
| Flange BFL | 12.526mm |
| BFL | 7. 15〜18.6mm |
| MBF | 7. 25〜8mm |
| IR Correction | Yes |
| Operating temperature | -10°C〜+60°C |
