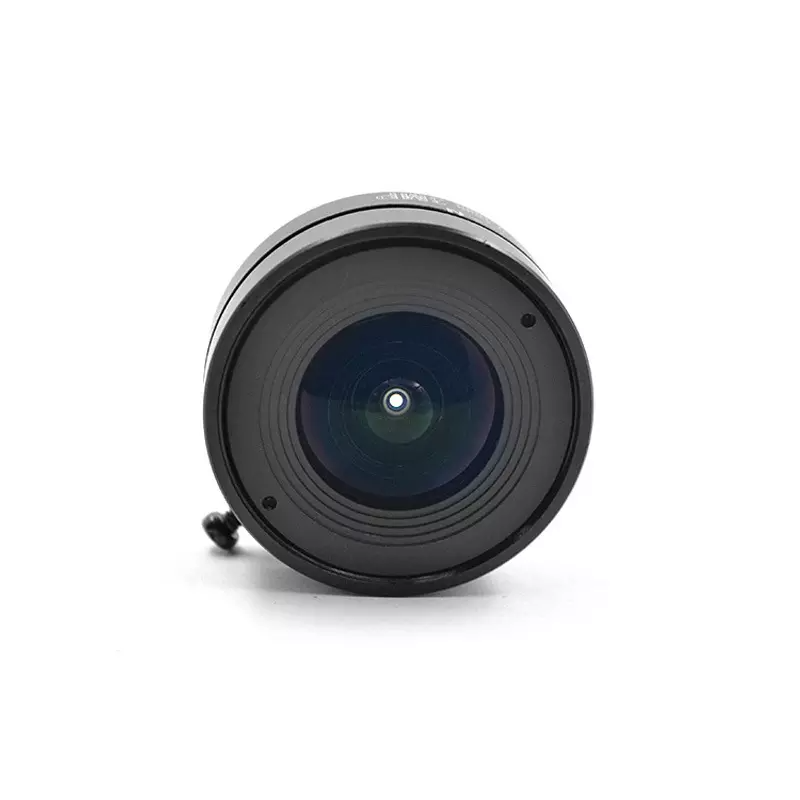

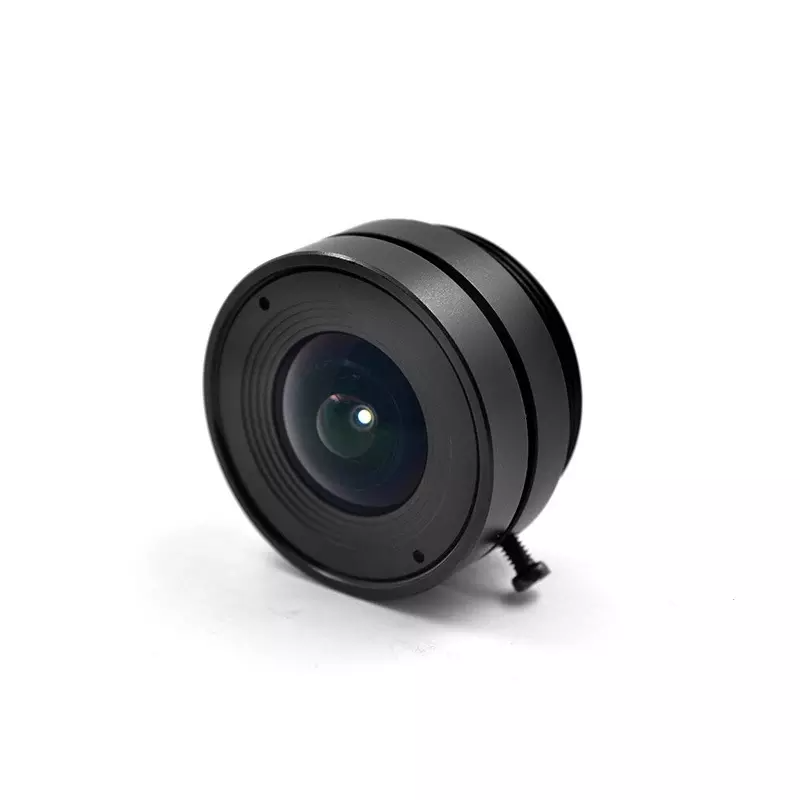

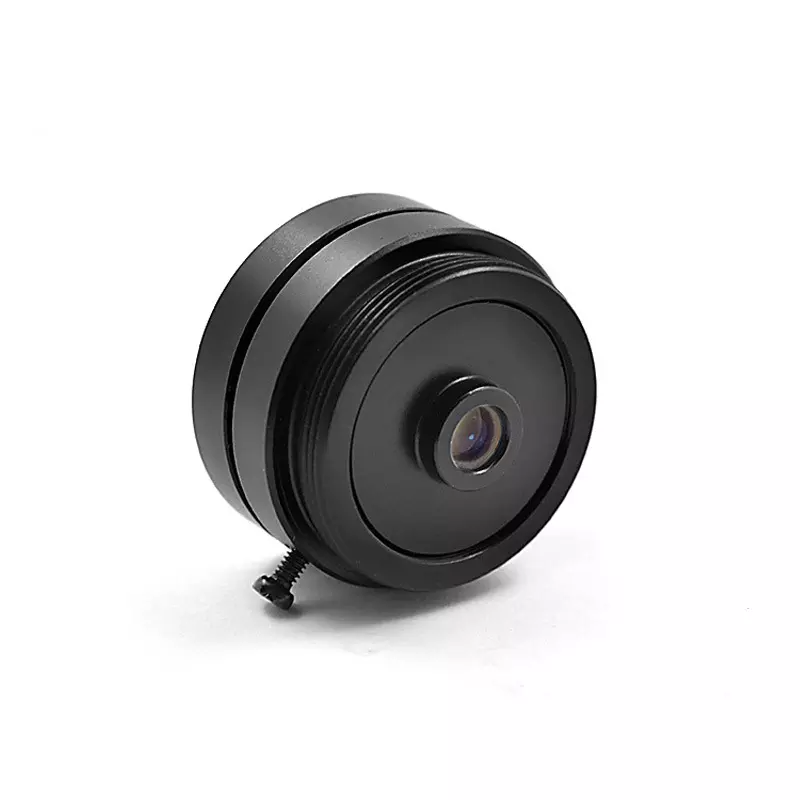

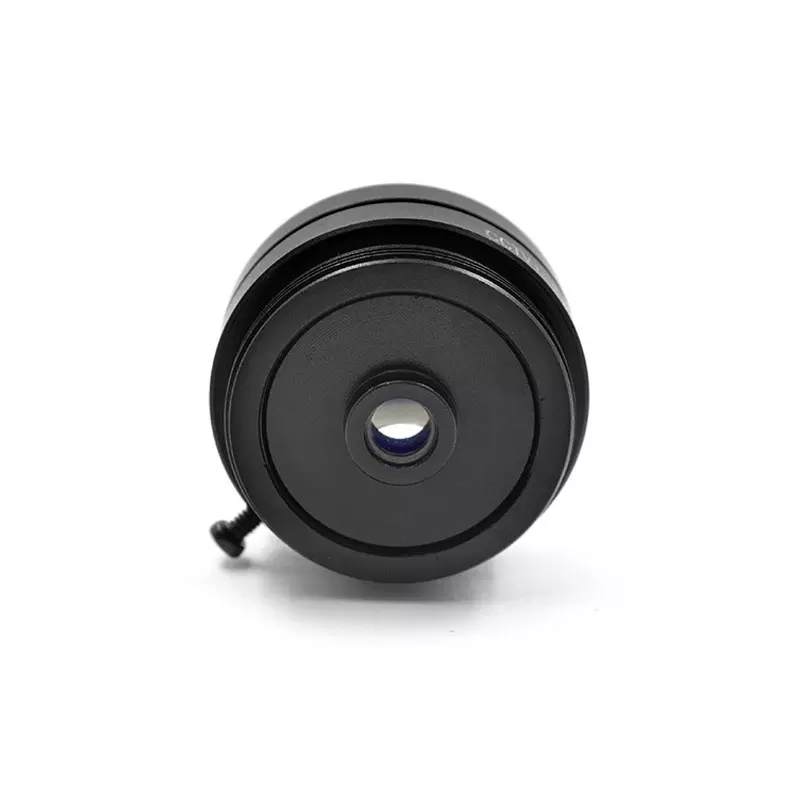

JY-CS-2.1FD-3MP-1/2.7F2.0

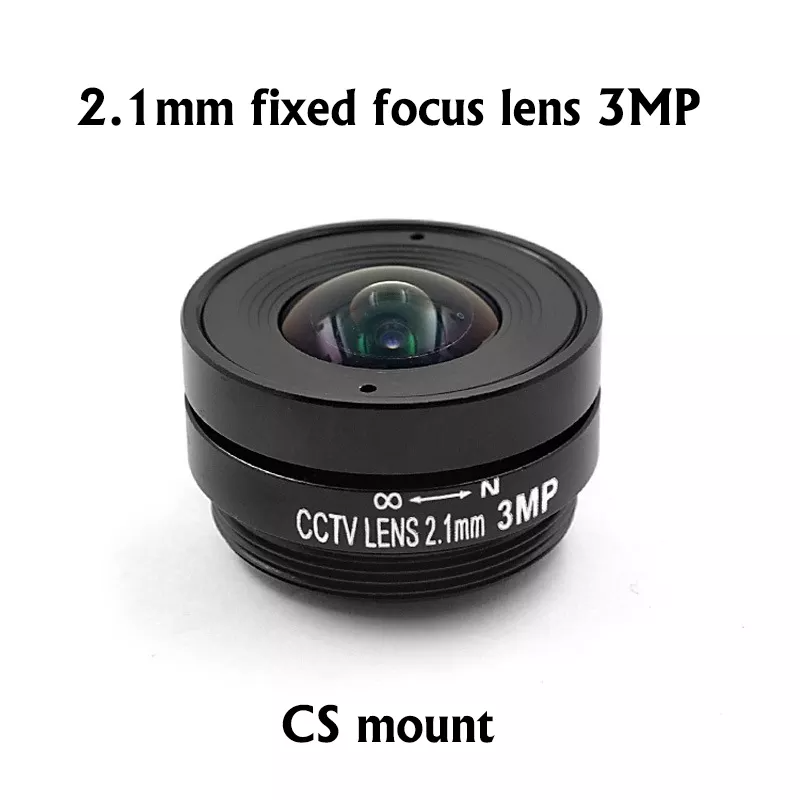

2.1mm focal length F2.0 F No. Aperture 1/2.7“ Sensor 3MP fixed CS Mount lens
- Online customer service
- Factory guarantee
- Ontime delivery

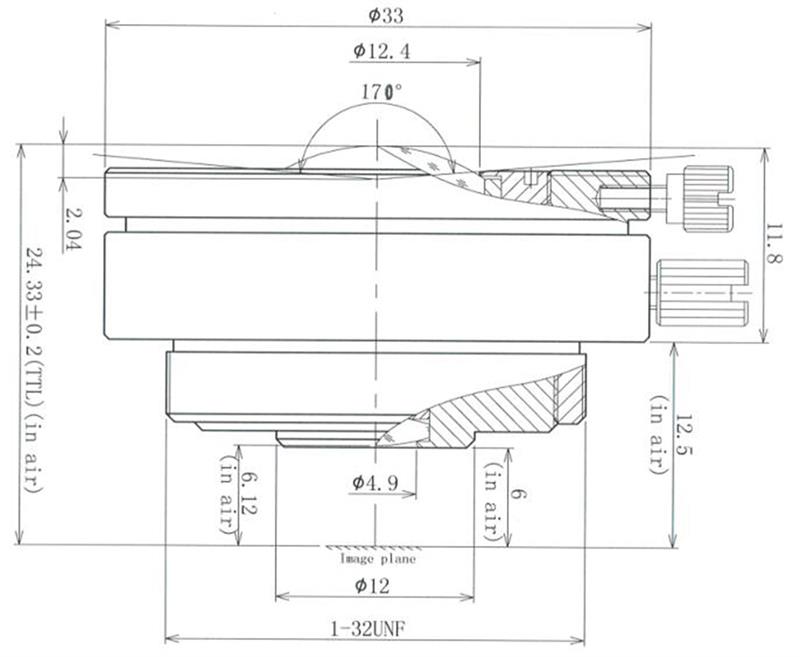

| Resolution | 3 Megapixel | |||||||||
| Sensor | 1/2.7 | |||||||||
| Focal length | 2.1mm | |||||||||
| F No. | F2.0 | |||||||||
| FOV （D*H*V) | 156°*125°*72° | |||||||||
| Mount | CS | |||||||||
| Backfocal Length | 6.12mm | |||||||||
| M.O.D | 0.2m | |||||||||
| TTL | 24.33mm | |||||||||
| Effective Aperture |
Φ12.4mm Front Φ4.9mm Rear |
|||||||||
| Relative illumination | ≥55% | |||||||||
| Lens Construction | 6-5 | |||||||||
| Dimension | Φ33×18.33mm | |||||||||
| CRA at Corner | 12.6° | |||||||||
| Iris | Fixed | |||||||||
WHAT PRODUCTS WE OFFER
JY-CS-25FD-5MP-1/2F1.4
25mm focal length F2.4 F No. Aperture 1/2“ Sensor 5MP fixed CS Mount lens
JY-CS-25FD-3MP-1/2F1.2
25mm focal length F1.2 F No. Aperture 1/2“ Sensor 3MP fixed CS Mount lens
JY-CS-16FD-5MP-1/2F1.4
12mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-16FD-3MP-1/2.5F1.6
16mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-12FD-3MP-1/2.5F1.6
12mm focal length F2.0 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-8.0FD-12MP-1/1.7F1.2
8mm focal length F1.2 F No. Aperture 1/1.7“ Sensor 12MP fixed CS Mount lens
JY-CS-8.0FD-5MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-8.0FD-3MP-1/2.5F1.6
8mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-8.0FD-3MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-6.0FD-5MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-6.0FD-3MP-1/2.5F1.6
6mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-6.0FD-3MP-1/2.5F1.4
6mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-5.0D-12MP-1/1.7F1.2
5mm focal length F1.2 F No. Aperture 1/1.7“ Sensor 12MP fixed CS Mount lens
JY-CS-4.0FD-5MP-1/2.5F1.4
4mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-4.0FD-3MP-1/2.5F1.6
4mm focal length F1.6 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-4.0FD-3MP-1/2.5F1.4
4mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-3.2FD-12MP-1/2.5F1.2
3.2mm focal length F1.2 F No. Aperture 1/2.5“ Sensor 12MP fixed CS Mount lens
JY-CS-2.8FD-5MP-1/2.5F1.4
2.8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
JY-CS-2.8FD-3MP-1/2.5F1.2
2.8mm focal length F1.2 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
JY-CS-2.5FD-3MP-1/2.5F1.2
2.5mm focal length F1.2 F No. Aperture 1/2.5“ Sensor 3MP fixed CS Mount lens
