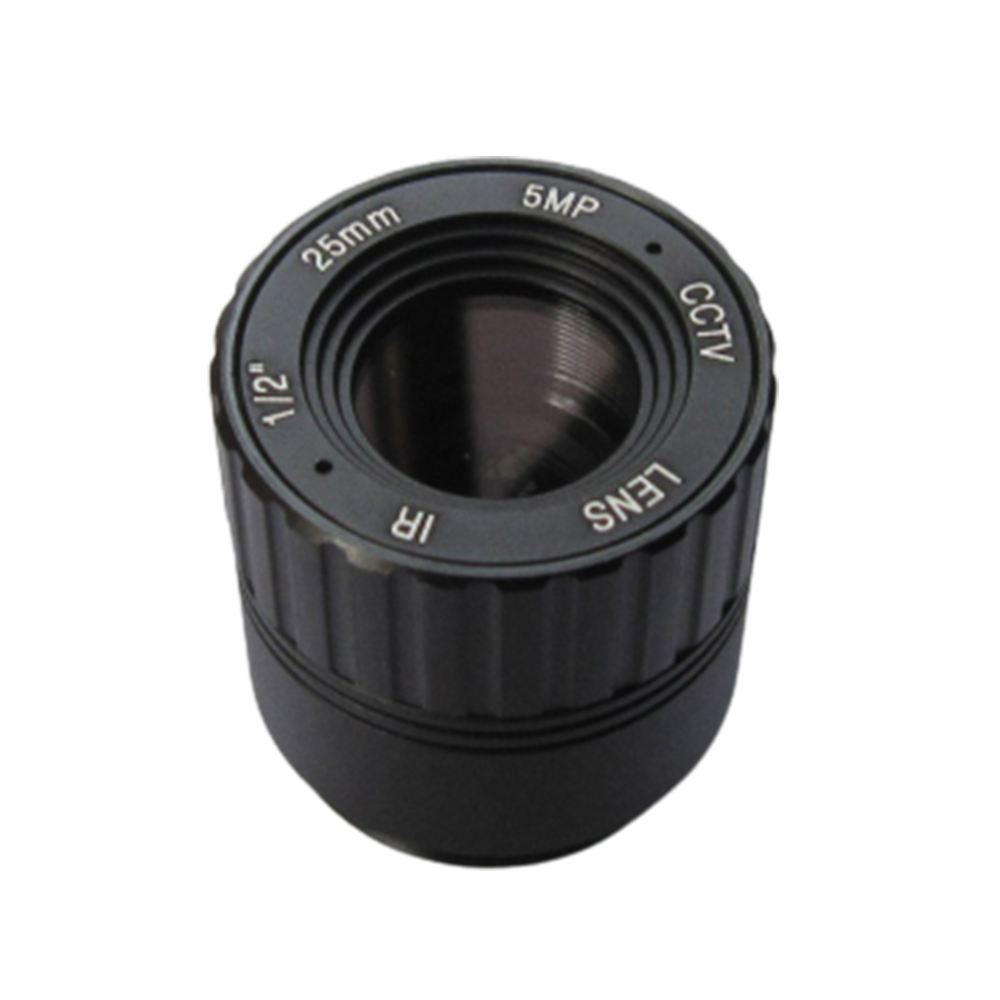

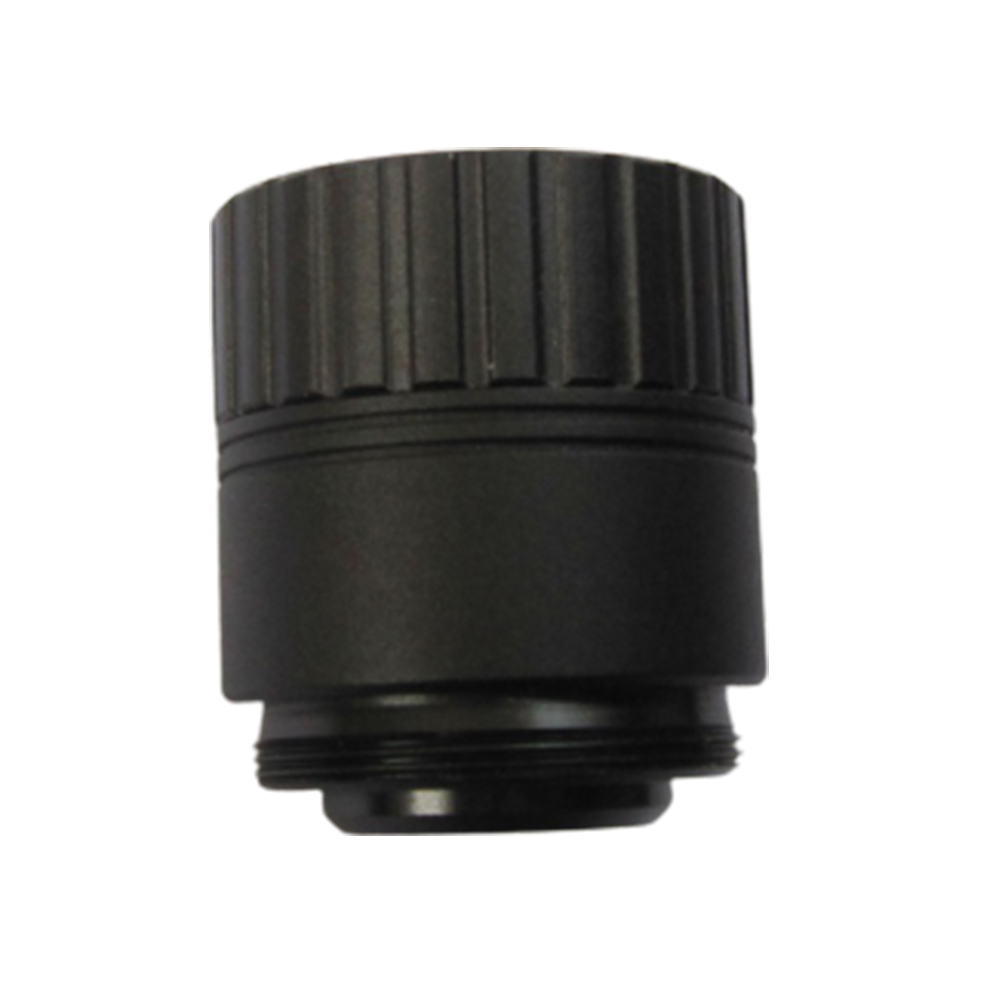

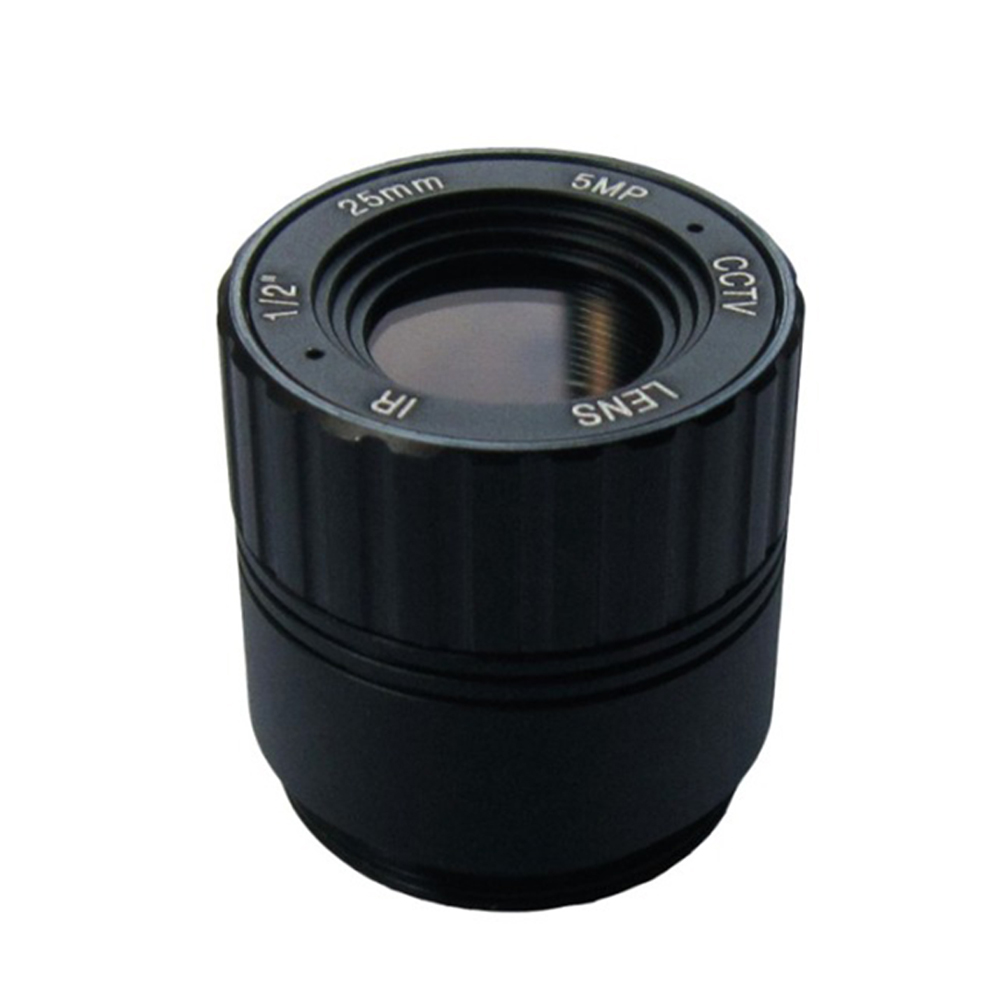

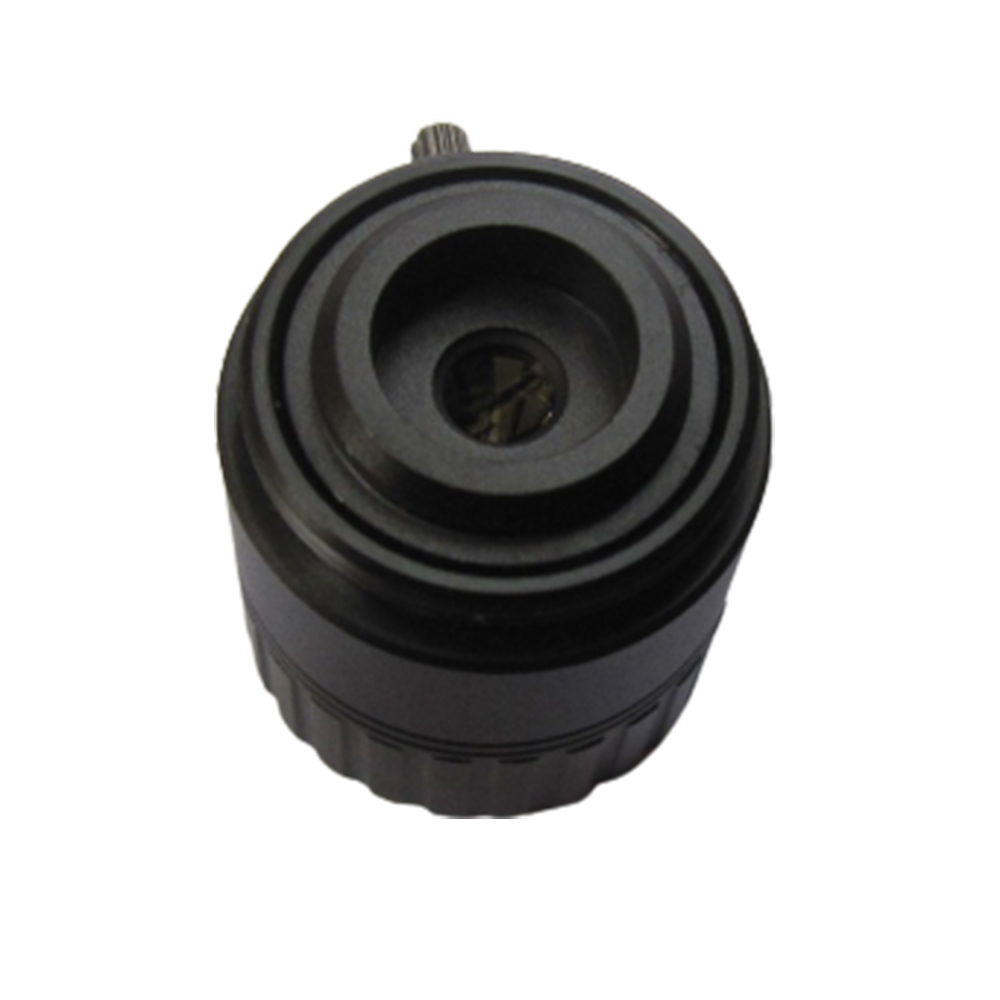

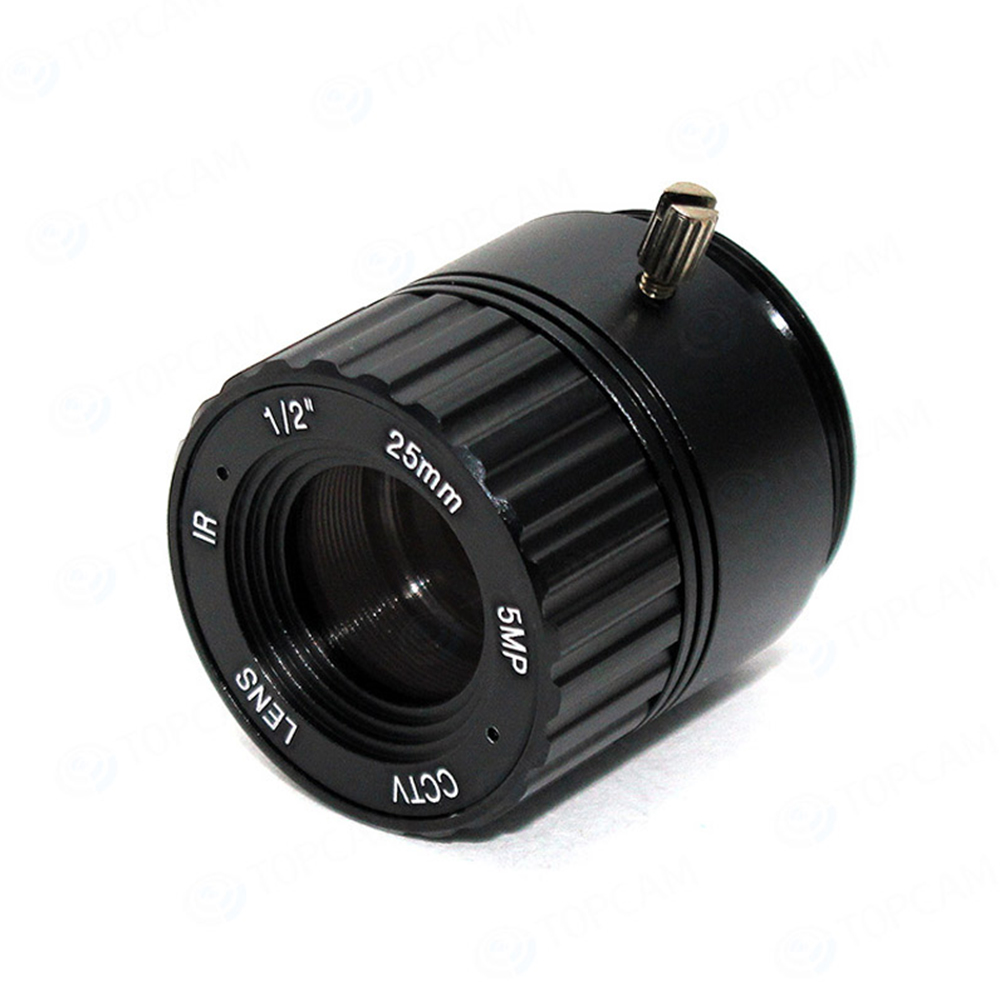

JY-CS-25FD-5MP-1/2F1.4
25mm focal length F2.4 F No. Aperture 1/2“ Sensor 5MP fixed CS Mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Focal Length | 25mm | |||||||||
| Mount | CS | |||||||||
| Resolution | 5 megapixel | |||||||||
| Angle of View (DxHxV) | 18.8x15.04x11.28 degrees (1/2"), 13.8x11x8.3 degrees (1/3"), 10.3x8.24x6.18 degrees (1/4") | |||||||||
| Aperture | F2.4 | |||||||||
| Iris | Fixed iris | |||||||||
| Minimum Object Distance (M.O.D.) | 0.3m | |||||||||
| Flange BFL | 12.5mm | |||||||||
| BFL | 11.5mm | |||||||||
| MBF | 2.1mm | |||||||||
| IR Correction | Yes | |||||||||
| Working Temperature | -20 ~ 60C degrees | |||||||||
| Dimension (mm) | Refer to below picture | |||||||||
| Lens Weight | About 40g |
