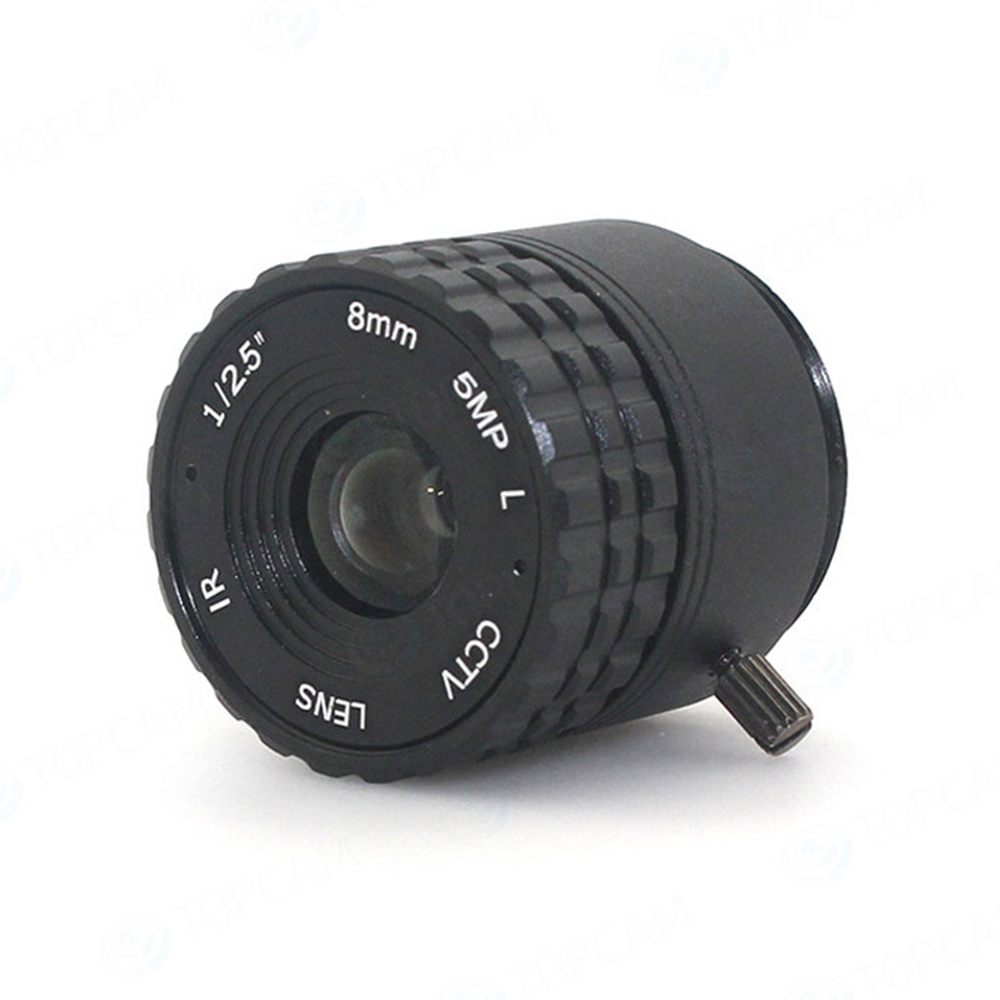

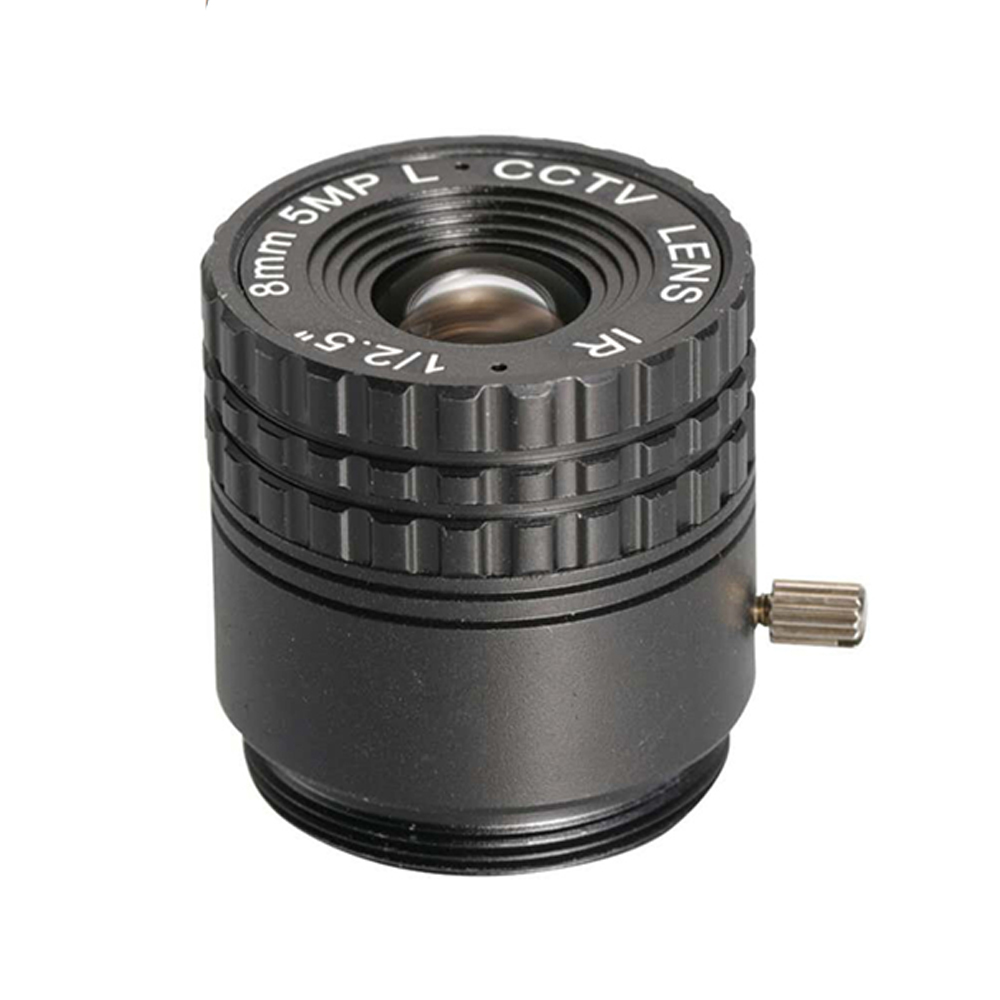

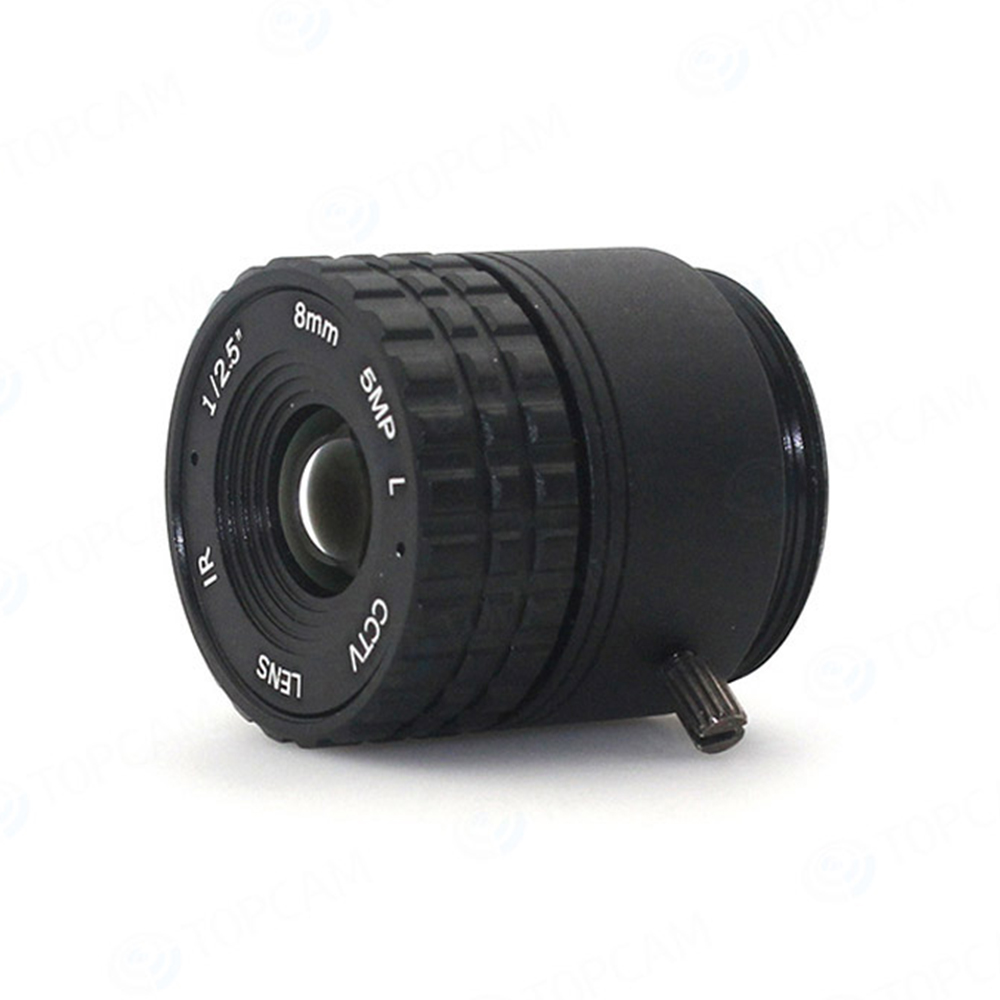

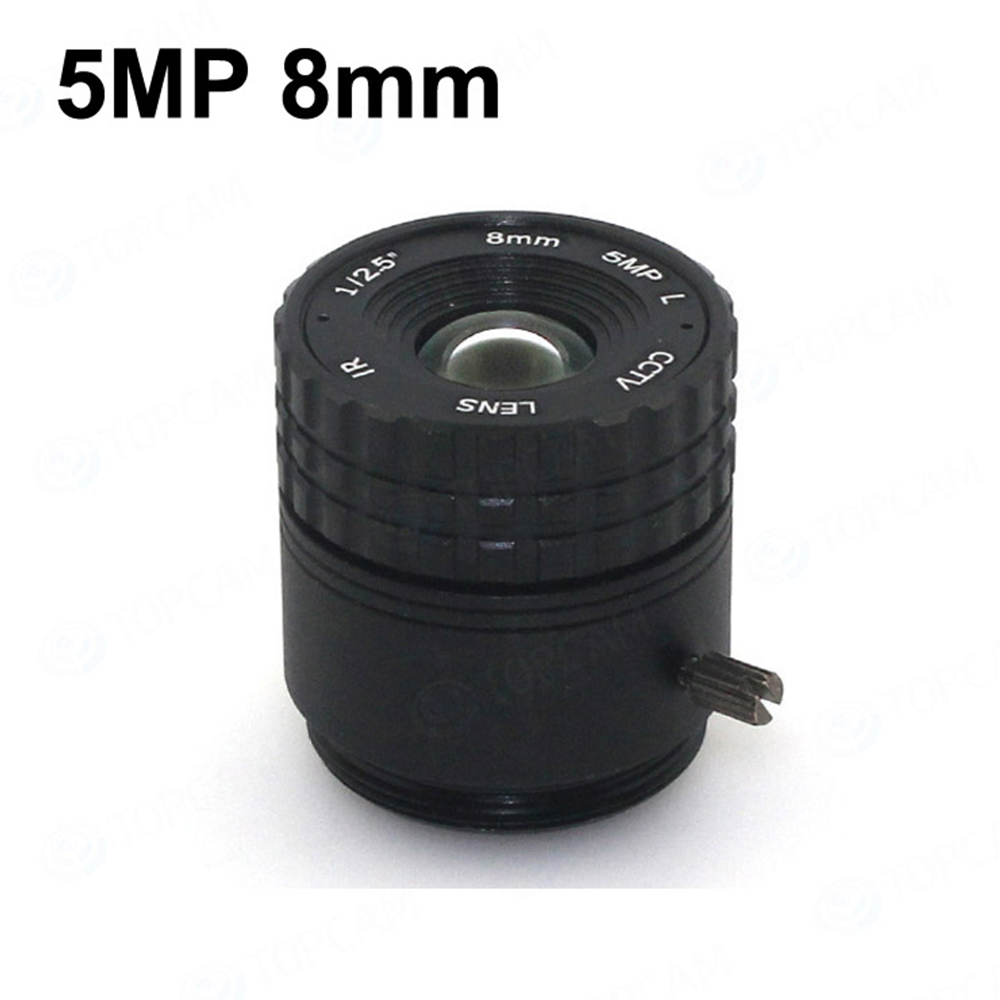

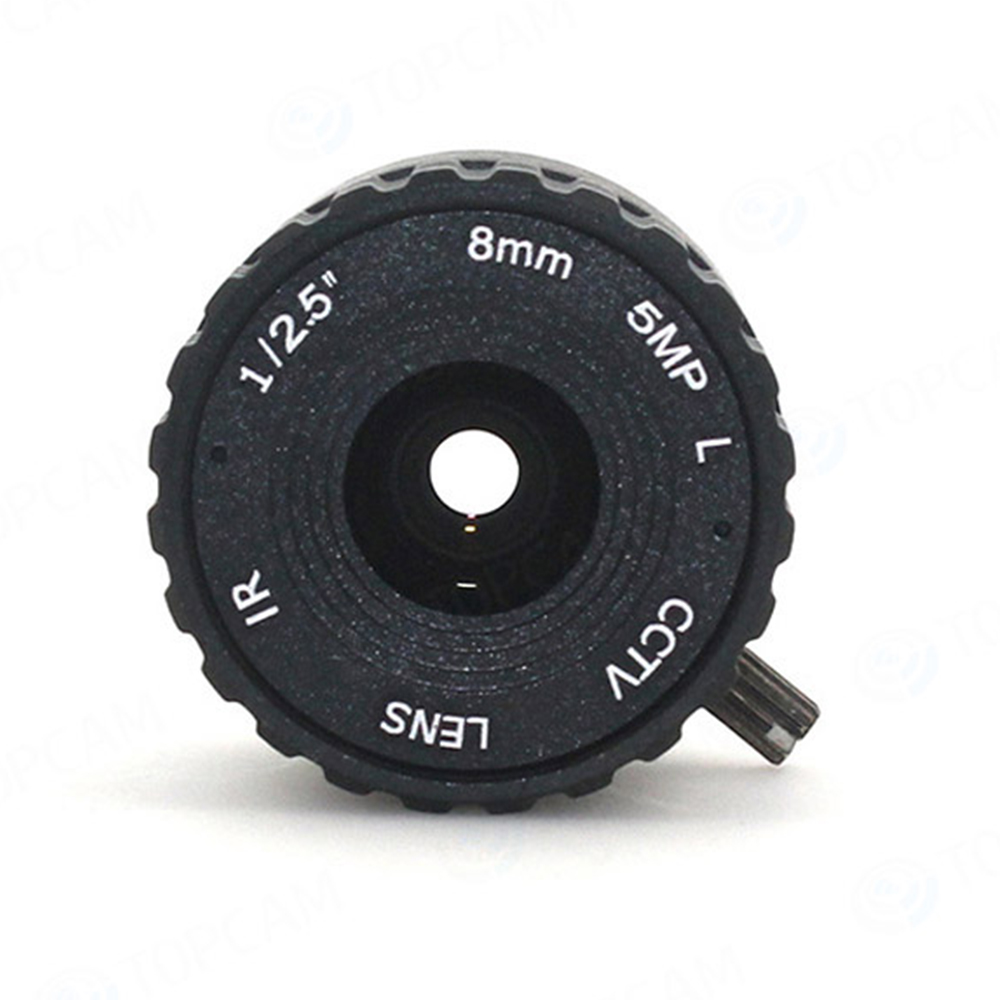

JY-CS-8.0FD-5MP-1/2.5F1.4
8mm focal length F1.4 F No. Aperture 1/2.5“ Sensor 5MP fixed CS Mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| D×H×V(°) | 1/2.7" | 52.5°×41.5°×30.3° |
| 1/3" | 47°×36.6°×27° | |
| Optical Distoration | -18.5% (Max) | |
| M.O.D | 0.3m | |
| Flang BFL | 12.5mm | |
| BFL | 7.7mm | |
| MBF | 6.5mm | |
| IR correction | Yes | |
| Dimension | Φ28×31.2mm | |
| Weight | 40g | |
| Operation | Iris | Fixed |
| Focus | / | |
| Zoom | / | |
| Operating temperature | -20C+60C | |
| Size tolerance(mm) | 10-30±0.10 | |
| Angle tolerance | ±2° | |
