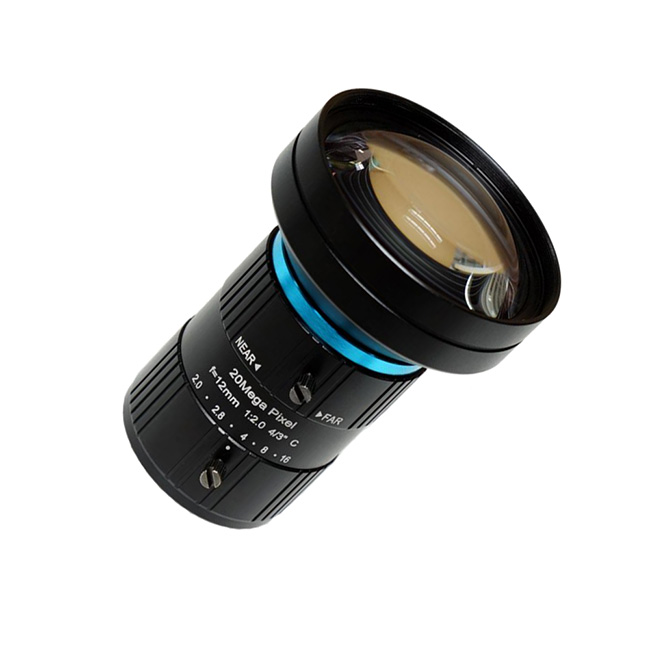

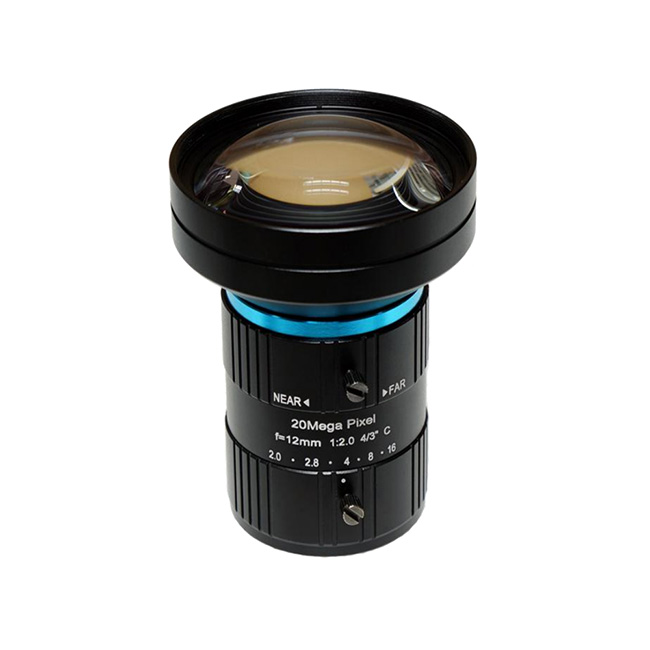

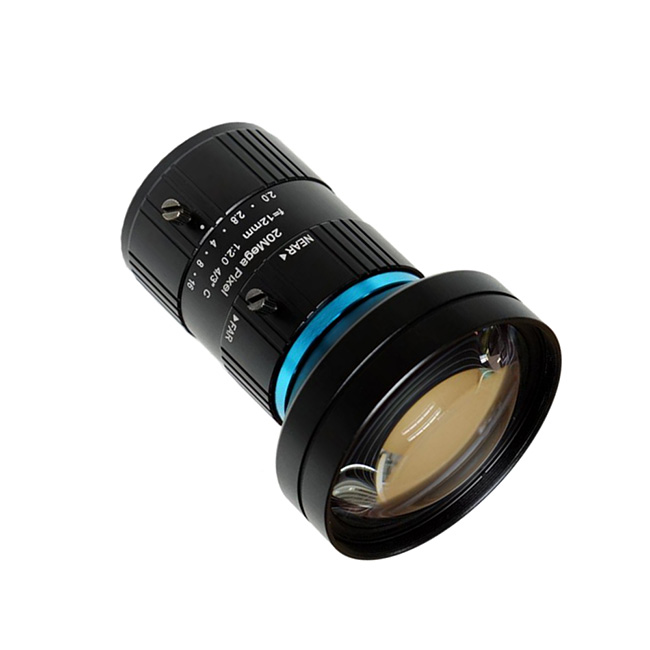

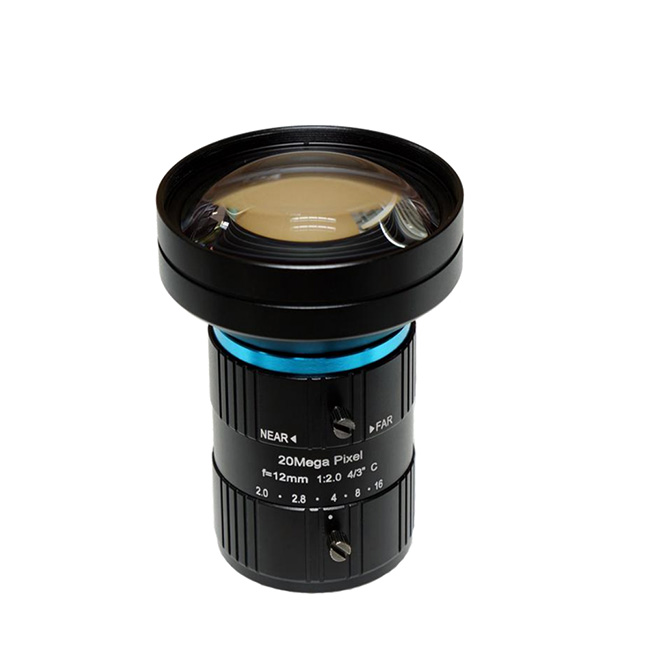

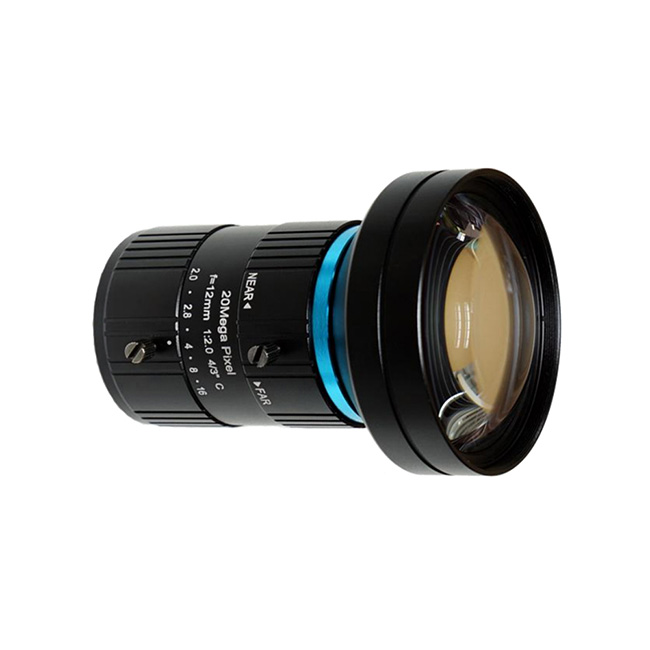

JY-C-12M-20MP-4/3F12
12mm focus length manual iris F12-F16 Aperture 20MP C mount lens for 4/3 " inch size image sensor
- Online customer service
- Factory guarantee
- Ontime delivery
| Focal Length | 12mm |
| Format | 4/3” (023) |
| D/f z | F2.0-F16 |
| Mount | C-Mount |
| Senser Size: 4/3" | 88.9° x58. 3° x73. 5° |
| F. 0.V (D/H/V) Senser Size: 1” | 67.5。x43.5° x56.3° |
| Senser Size: 2/3" | 48.6° x30.4° x39.8° |
| Back Focal Length | 17.53mm |
| Optical length | 99.15mm |
| Iris type | Manual |
| MTF | 20Mega Pixel |
| M. 0. D <m) | 0. 20m |

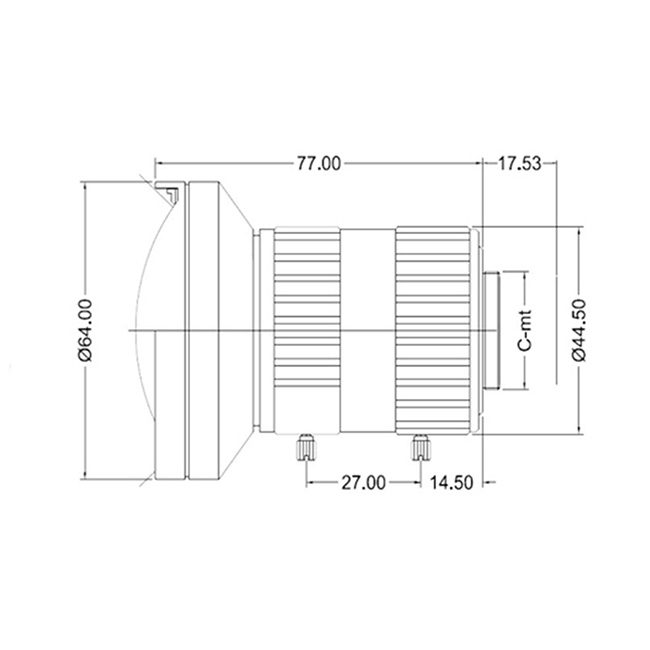

| Dimension | 064. 0*77. 0 |
| Weight (g) | 305g |
| Distortion | < -1.6% |
| Structure | Aluminium Alloy |
| Remarks | UV72. 0x0. 75) |
WHAT PRODUCTS WE OFFER
JY-C-4M-3MP-1/2F1.4
4mm focal length F1.4 Aperture 1/2 inch image sensor 89 degree FOV 3MP Manual Iris CS Mount lens
JY-C-5M-5MP-1/1.7F1.6
5mm focal length F1.6 Aperture 1/1.7 inch image sensor 5MP Manual Iris C Mount lens
JY-C-6M-3MP-1/2F1.4
6mm focal length F1.4 Aperture 1/2 inch image sensor 3MP Manual Iris CS Mount lens
JY-C-8M-3MP-1/2F1.4
8mm focal length F1.4 Aperture 1/2 inch image sensor 3MP Manual Iris CS Mount lens
JY-C-8M-5MP-2/3F1.6
8mm focus length F1.6 Aperture 2/3 " 5MP C mount lens
JY-C-8M-8MP-1F1.4
8mm focus length manual iris F1.4 Aperture 8MP C mount lens for 1 inch image sensor
JY-C-12M-3MP-1/2F1.4
12mm focus length F1.4 Aperture 1/2 " 3MP Manual Iris CS mount lens
JY-C-12M-5MP-2/3F1.6
12mm focus length manual Iris F1.6 Aperture 2/3 " 5MP C mount lens
JY-C-12M-20MP-1.1F2.8
12 mm focus length manual iris F12.8 Aperture 20MP C mount lens for 1.1 inch image sensor size
JY-C-16M-3MP-1/2F1.4
16mm focal length F1.4 Aperture 1/2 inch image sensor 3MP Manual Iris CS Mount lens
JY-C-16M-5MP-2/3F1.6
16mm focus length manual iris F1.6 Aperture 2/3 " image sensor 5mp c mount lens
JY-C-16M-6MP-1.1F2.8
16mm focus length manual iris F2.8 Aperture 1/1.8 " image sensor 6mp c mount lens
JY-C-16M-10MP-1F1.4
16mm focus length manual iris F1.4 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-16M-20MP-1.1F2.8
16mm focus length manual iris F2.8 Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-20M-8MP-1F1.4
20mm focus length manual iris F1.4 Aperture 1 " inch image sensor 8mp c mount lens
JY-C-20M-10MP-1F1.4
20mm focus length manual iris F1.4 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-20M-10MP-23F2.8
20mm focus length manual iris F2.8 Aperture 2/3 " image sensor 10mp c mount lens
JY-C-20M-10MP-23F2.8
20mm focus length manual iris F2.8 Aperture 2/3 " image sensor 10mp c mount lens
JY-C-25M-3MP-1/2F1.4
25mm focus length manual iris F1.4 Aperture 1/2 " inch image sensor 3mp cs mount lens
JY-C-25M-5MP-2/3F1.4
25mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-25M-10MP-1F1.4
25mm focus length manual iris F1.4 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-25M-12MP-43F14
25mm focus length manual iris F1.4 Aperture 12MP C mount lens for 4/3 " inch size image sensor
JY-C-25M-20MP-1.1F2.8
25mm focus length manual iris F2.8 Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-35M-5MP-2/3F1.7
35mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-35M-10MP-1F1.7
35mm focus length manual iris F1.7 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-35M-12MP-11F14
35mm focus length manual iris F1.4 Aperture 12MP C mount lens for 1 " inch size image sensor
JY-C-35M-20MP-1.1F2.8
35mm focus length manual iris F2.8 Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-35M-20MP-11F.28
35mm focus length manual iris F2.8 Aperture 1 " inch image sensor 20mp c mount lens
JY-C-50M-1MP-2/3F1.4
50mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 1mp c mount lens
JY-C-50m-5MP-2/3F1.8
50mm focus length manual iris F1.8 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-50M-8MP-1F1.4
50mm focus length manual iris F1.8 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-50M-16MP-D16
50mm focus length manual iris F2.5-F22 Aperture 16mp c mount lens
JY-C-50M-20MP-D28F2.5
50mm focus length manual iris F2.5-F22 Aperture 20mp c mount lens
JY-C-50M-35MP-1.1F2.8
50mm focus length manual iris F2.8Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-75M-8MP-1F2.8
75mm focus length manual iris F2.8 Aperture 1 " inch image sensor 8mp c mount lens
JY-C-75M-10MP-1F2.8
75mm focus length manual iris F2.8 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-100M-8MP-1F3.5
100mm focus length manual iris F3.5 Aperture 1 " inch image sensor 10mp c mount lens
JY-CS-2.5M-8MP-2/3F1.6
2.5mm focus length manual iris F1.6 Aperture 2/3 " inch image sensor 190FOV 8mp cs mount fisheye lens
JY-CS-35M-1MP-2/3F1.7
35mm Focus length F1.7 Aperture 2/3" Sensor 1MP CS Mount lens
JY-CS-50M-2MP-1/2F1.6
50mm Focus length F1.6 Aperture 1/2" Sensor 2MP CS Mount lens
