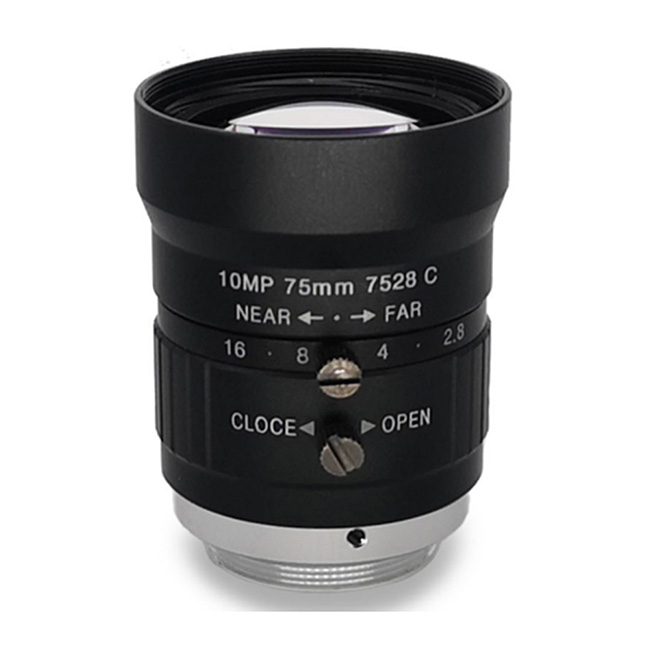

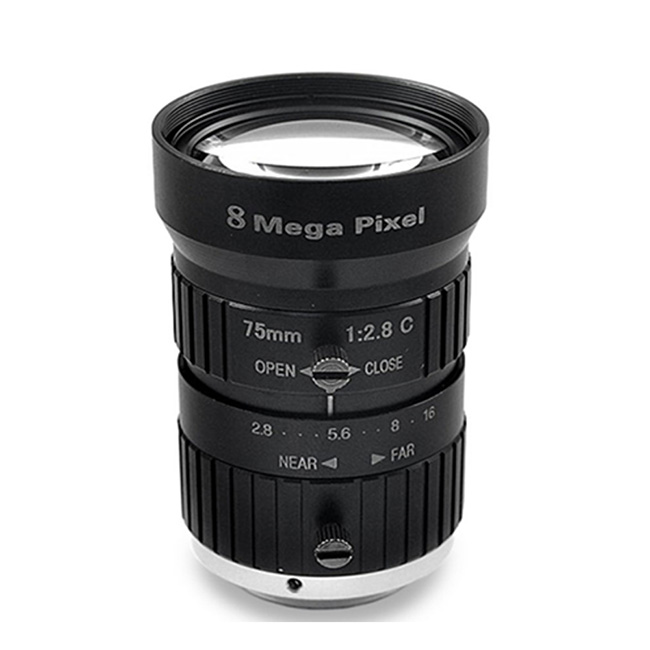

JY-C-75M-8MP-1F2.8
75mm focus length manual iris F2.8 Aperture 1 " inch image sensor 8mp c mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
1″ format F2.8 75mm focal length c mount 10 megapixel manual iris machine vision lens
Keyword: 75mm lens , 75mm c mount lens ,machine vision lens
Specifications
|
Sensor Type: |
1＂ |
|
|
Focal Length : |
75mm |
|
|
Aperture |
F2.8 |
|
|
Optical FOV(D/H/V): |
11.4°/9.2°/6.9° |
|
|
Back Focal Length : |
17.66mm |
|
|
Lens Effective Diameter: |
Φ30.00mm |
Front |
|
Φ10.60mm |
Back |
|
|
OP Distortion: |
0.2% |
|
|
Resolution: |
10 Megapixel |
|
|
Relative illumination: |
＞80% |
|
|
Iris: |
Manual |
|
|
Max Chief Ray Angle: |
8.3° |
|
|
M.O.D: |
0.6mm |
|
|
Mount: |
C mount |
|
