View large
JY-C-8M-5MP-2/3F1.6

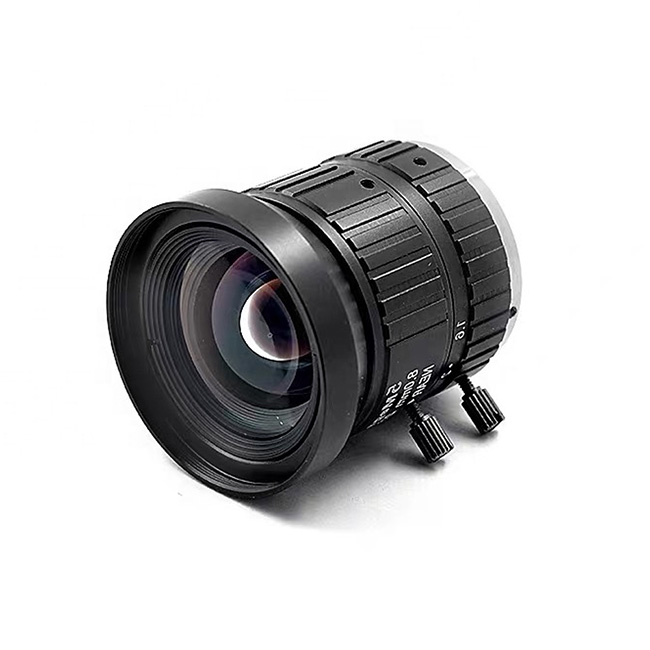

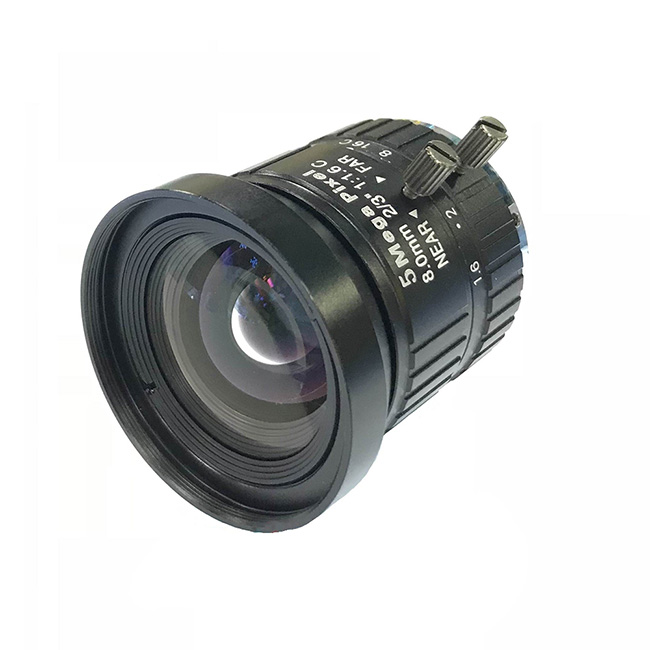

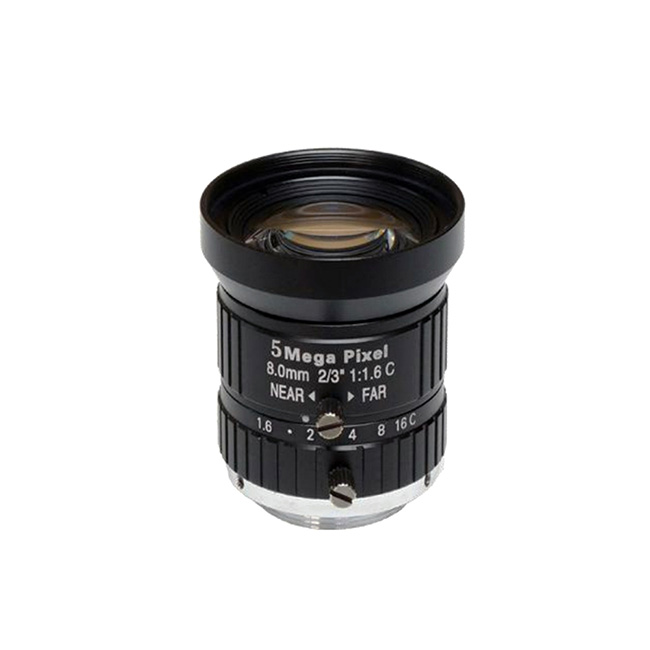

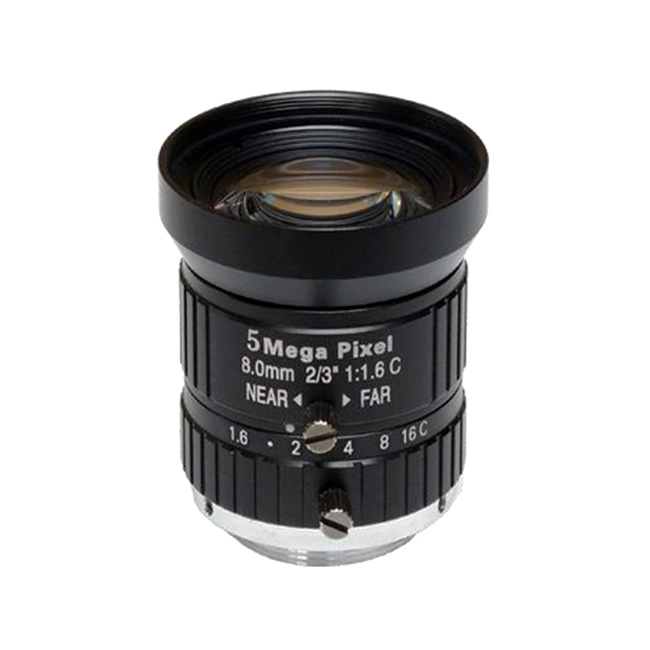

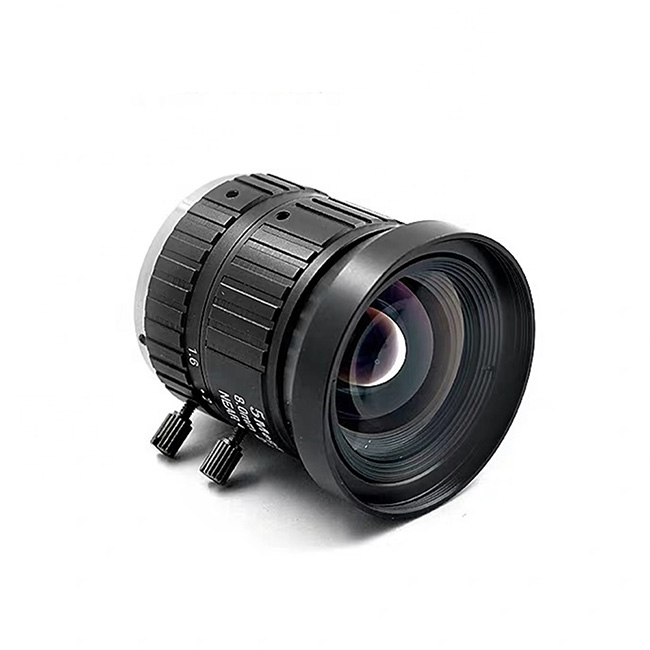

8mm focus length F1.6 Aperture 2/3 " 5MP C mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Product Specifications | |||
| Model | JY-C-8M-5MP-2/3F1.6 | ||
| Focal length | 8 mm | ||
| Format | 2/3 | ||
| MTF | 5MP | ||
| Aperture | 1.6 | ||
| Mount | C | ||
| D H V | 67° X56° X43° | ||
| Optical Distortion | 1% | ||
| M. 0. D. | 0. Im | ||
| Dimension | 039*41mm | ||
| lens Construction | Mental+7G | ||
| BFL | 4. 5mm | ||
| Operating temperature | - 20*C 〜+80*C | ||
| Operation | Iris | Manual | |
| Focus | Manual | ||
| Zoom | / | ||
| Remarks | |||
| Size tolerance (mm): | |0-10±0. 05 | 110-30 + 0. 10 | |30-120±0. 20 |
| Angle tolerance | | ±2° | ||
WHAT PRODUCTS WE OFFER
JY-C-4M-3MP-1/2F1.4
4mm focal length F1.4 Aperture 1/2 inch image sensor 89 degree FOV 3MP Manual Iris CS Mount lens
JY-C-5M-5MP-1/1.7F1.6
5mm focal length F1.6 Aperture 1/1.7 inch image sensor 5MP Manual Iris C Mount lens
JY-C-6M-3MP-1/2F1.4
6mm focal length F1.4 Aperture 1/2 inch image sensor 3MP Manual Iris CS Mount lens
JY-C-8M-3MP-1/2F1.4
8mm focal length F1.4 Aperture 1/2 inch image sensor 3MP Manual Iris CS Mount lens
JY-C-8M-8MP-1F1.4
8mm focus length manual iris F1.4 Aperture 8MP C mount lens for 1 inch image sensor
JY-C-12M-3MP-1/2F1.4
12mm focus length F1.4 Aperture 1/2 " 3MP Manual Iris CS mount lens
JY-C-12M-5MP-2/3F1.6
12mm focus length manual Iris F1.6 Aperture 2/3 " 5MP C mount lens
JY-C-12M-20MP-1.1F2.8
12 mm focus length manual iris F12.8 Aperture 20MP C mount lens for 1.1 inch image sensor size
JY-C-12M-20MP-4/3F12
12mm focus length manual iris F12-F16 Aperture 20MP C mount lens for 4/3 " inch size image sensor
JY-C-16M-3MP-1/2F1.4
16mm focal length F1.4 Aperture 1/2 inch image sensor 3MP Manual Iris CS Mount lens
JY-C-16M-5MP-2/3F1.6
16mm focus length manual iris F1.6 Aperture 2/3 " image sensor 5mp c mount lens
JY-C-16M-6MP-1.1F2.8
16mm focus length manual iris F2.8 Aperture 1/1.8 " image sensor 6mp c mount lens
JY-C-16M-10MP-1F1.4
16mm focus length manual iris F1.4 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-16M-20MP-1.1F2.8
16mm focus length manual iris F2.8 Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-20M-8MP-1F1.4
20mm focus length manual iris F1.4 Aperture 1 " inch image sensor 8mp c mount lens
JY-C-20M-10MP-1F1.4
20mm focus length manual iris F1.4 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-20M-10MP-23F2.8
20mm focus length manual iris F2.8 Aperture 2/3 " image sensor 10mp c mount lens
JY-C-20M-10MP-23F2.8
20mm focus length manual iris F2.8 Aperture 2/3 " image sensor 10mp c mount lens
JY-C-25M-3MP-1/2F1.4
25mm focus length manual iris F1.4 Aperture 1/2 " inch image sensor 3mp cs mount lens
JY-C-25M-5MP-2/3F1.4
25mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-25M-10MP-1F1.4
25mm focus length manual iris F1.4 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-25M-12MP-43F14
25mm focus length manual iris F1.4 Aperture 12MP C mount lens for 4/3 " inch size image sensor
JY-C-25M-20MP-1.1F2.8
25mm focus length manual iris F2.8 Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-35M-5MP-2/3F1.7
35mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-35M-10MP-1F1.7
35mm focus length manual iris F1.7 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-35M-12MP-11F14
35mm focus length manual iris F1.4 Aperture 12MP C mount lens for 1 " inch size image sensor
JY-C-35M-20MP-1.1F2.8
35mm focus length manual iris F2.8 Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-35M-20MP-11F.28
35mm focus length manual iris F2.8 Aperture 1 " inch image sensor 20mp c mount lens
JY-C-50M-1MP-2/3F1.4
50mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 1mp c mount lens
JY-C-50m-5MP-2/3F1.8
50mm focus length manual iris F1.8 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-50M-8MP-1F1.4
50mm focus length manual iris F1.8 Aperture 2/3 " inch image sensor 5mp c mount lens
JY-C-50M-16MP-D16
50mm focus length manual iris F2.5-F22 Aperture 16mp c mount lens
JY-C-50M-20MP-D28F2.5
50mm focus length manual iris F2.5-F22 Aperture 20mp c mount lens
JY-C-50M-35MP-1.1F2.8
50mm focus length manual iris F2.8Aperture 1.1 " inch image sensor 20mp c mount lens
JY-C-75M-8MP-1F2.8
75mm focus length manual iris F2.8 Aperture 1 " inch image sensor 8mp c mount lens
JY-C-75M-10MP-1F2.8
75mm focus length manual iris F2.8 Aperture 1 " inch image sensor 10mp c mount lens
JY-C-100M-8MP-1F3.5
100mm focus length manual iris F3.5 Aperture 1 " inch image sensor 10mp c mount lens
JY-CS-2.5M-8MP-2/3F1.6
2.5mm focus length manual iris F1.6 Aperture 2/3 " inch image sensor 190FOV 8mp cs mount fisheye lens
JY-CS-35M-1MP-2/3F1.7
35mm Focus length F1.7 Aperture 2/3" Sensor 1MP CS Mount lens
JY-CS-50M-2MP-1/2F1.6
50mm Focus length F1.6 Aperture 1/2" Sensor 2MP CS Mount lens
