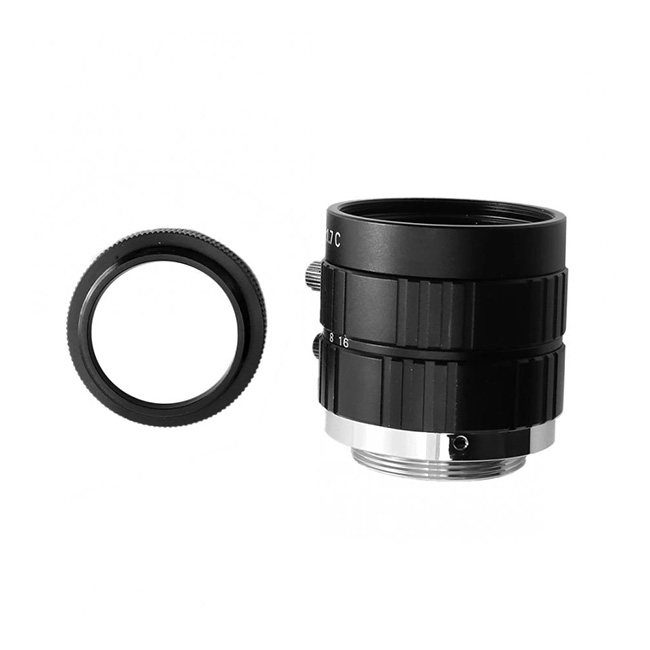

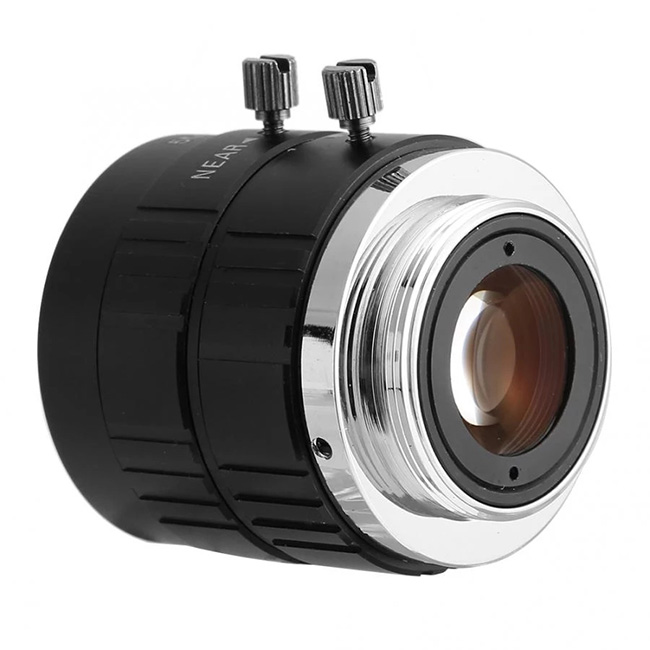

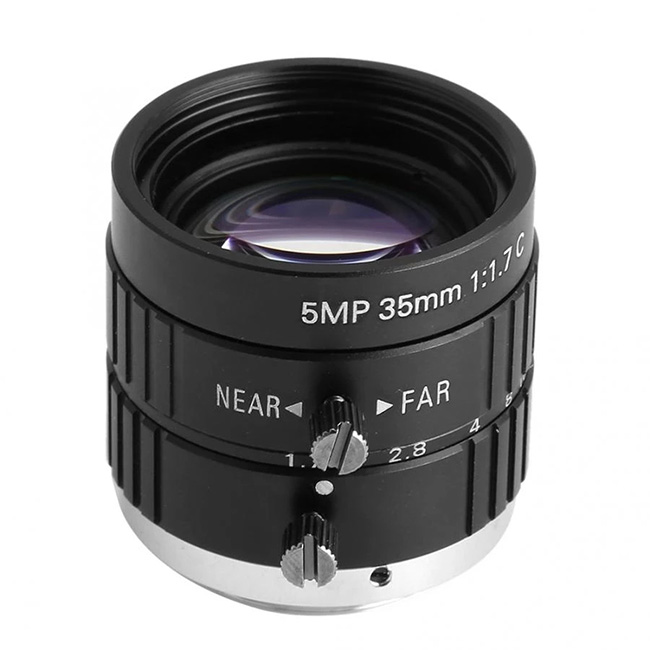

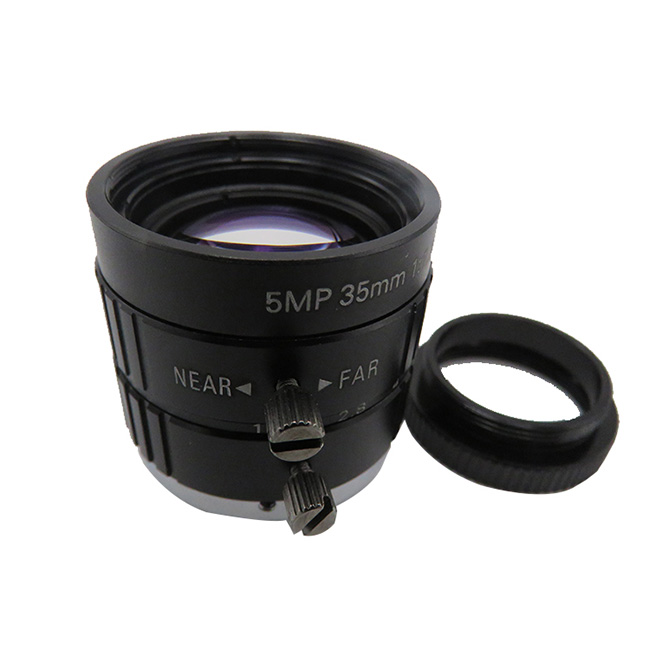

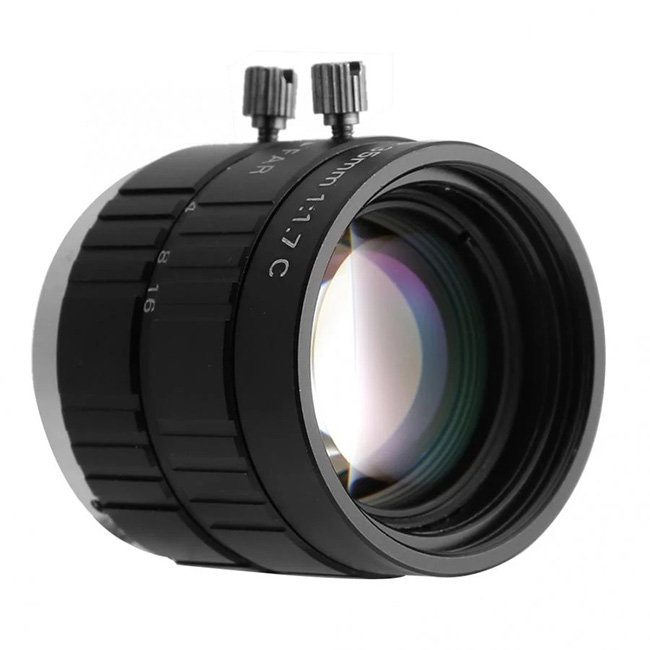

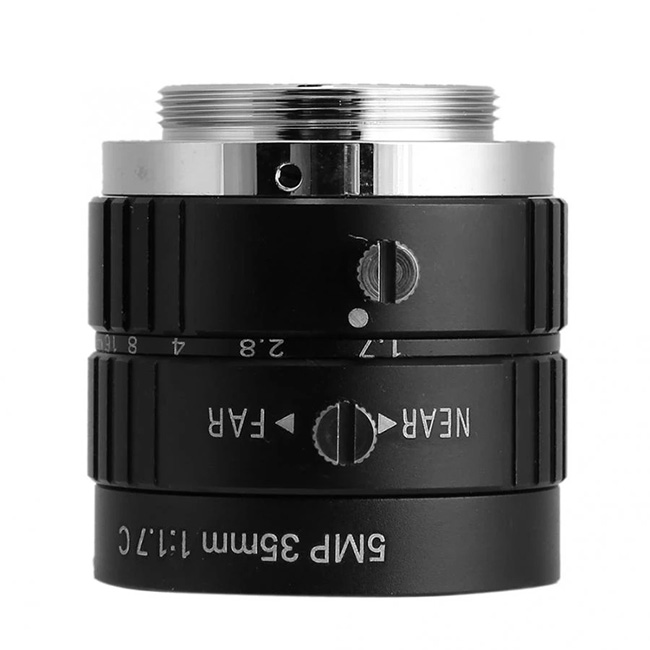

JY-C-35M-5MP-2/3F1.7
35mm focus length manual iris F1.4 Aperture 2/3 " inch image sensor 5mp c mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| E.F.L | 35mm |
| Image Format(Max) | 2/3" |
| F No. | 1.7 |
| Mount Type | C |
| Field of View | (H/V) |
| 2/3" 14.4°x10.8° | |
| 1/1.8" 11.8°x8.8° | |
| 1/2" 10.5°x7.9° | |
| iris | Manual |
| MTF | 5Mega Pixels |
| M.O.D | 0.25m |
| Dimension | Φ35×32mm |
| Weight | 68g |
| Structure | metal+6G |
| Filter size | M30x0.5p |
| Distortion | -0.05% |
