View large
JY-C-75M-10MP-1F2.8

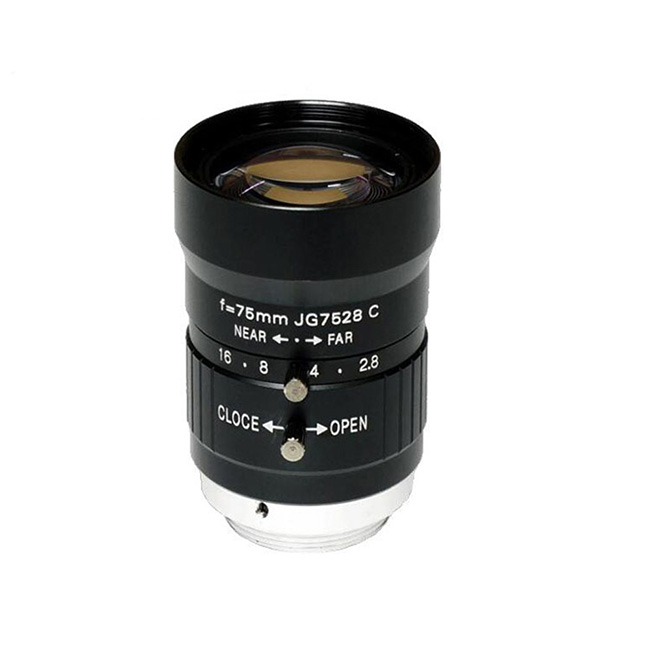

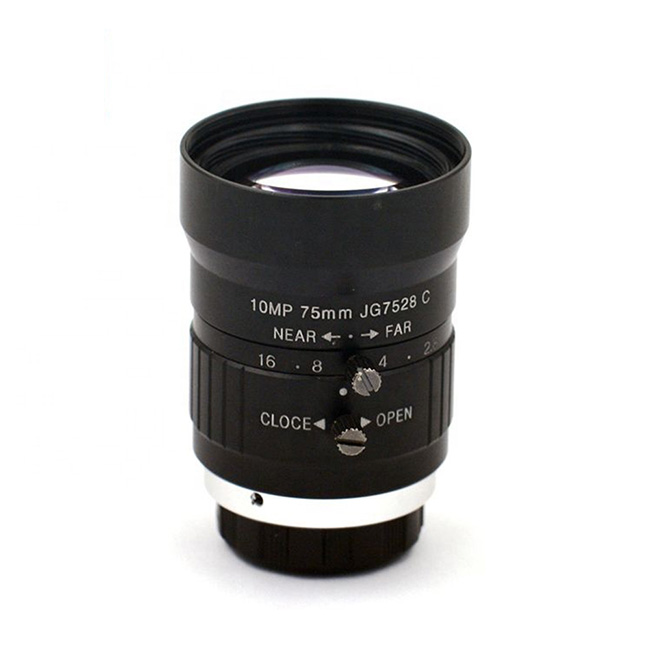

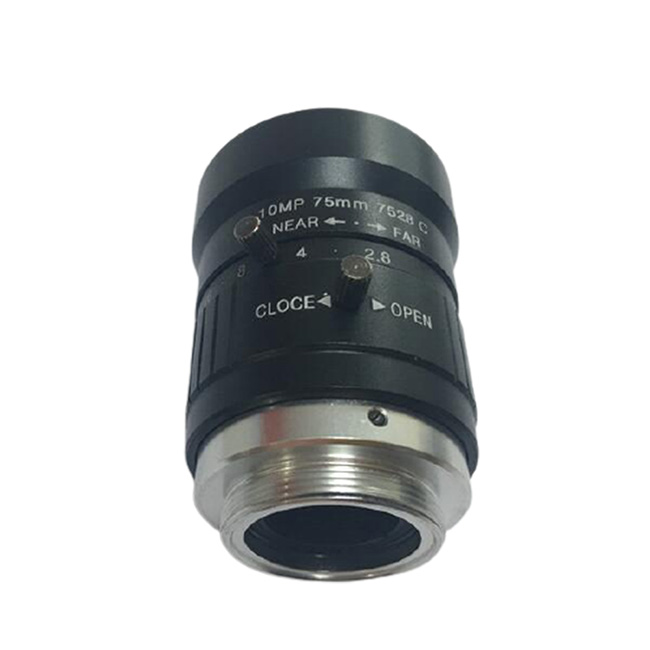

75mm focus length manual iris F2.8 Aperture 1 " inch image sensor 10mp c mount lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Focal Length : | 75mm |
| Image Size: | 1” Φ16 / 12.8x9.6mm |
| Aperture FNo.: | F2.8 - F16 |
| Optical FOV (H/V): | 9.8°/7.3° (1”) |
| Mount: | C Mount |
| Focus: | Manual |
| Iris: | Manual |
| Resolution: | 10mp |
| M.O.D: | 0.7mm - ∞ |
| Filter Size: | M37x0.5P |
| Distortion: | 0.01% |
| Weight: | 110g |

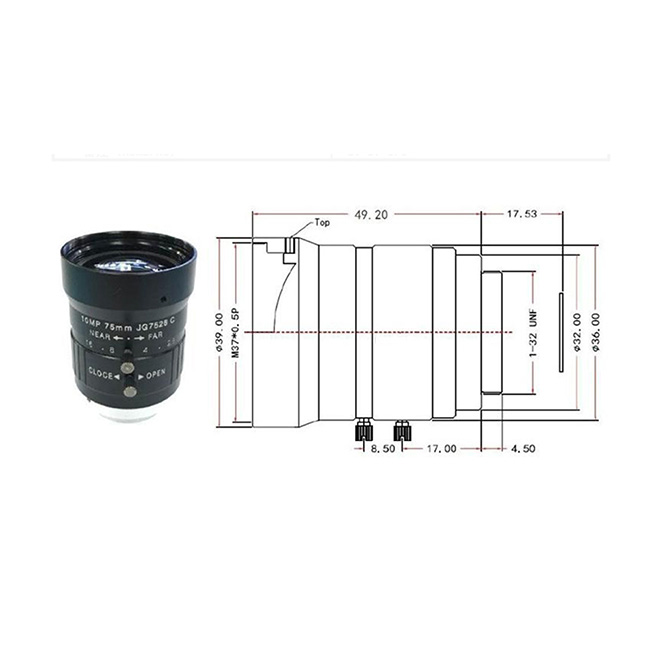

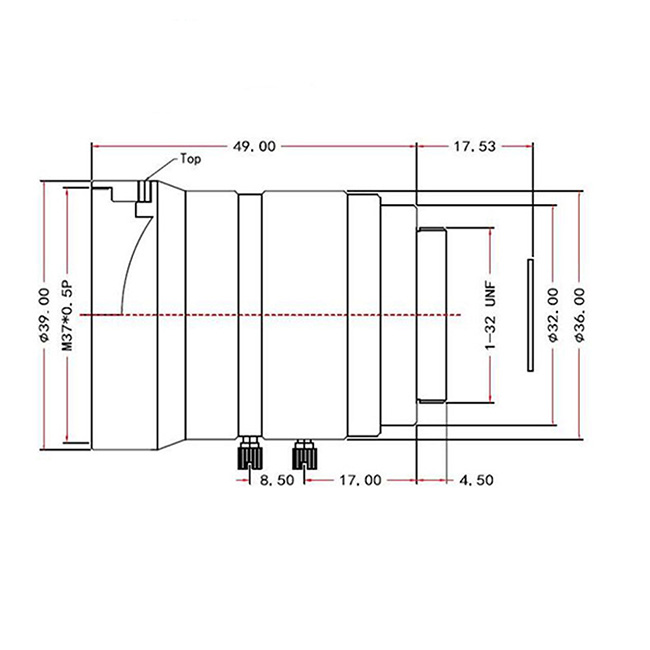

| Size: | Φ39*49 |
